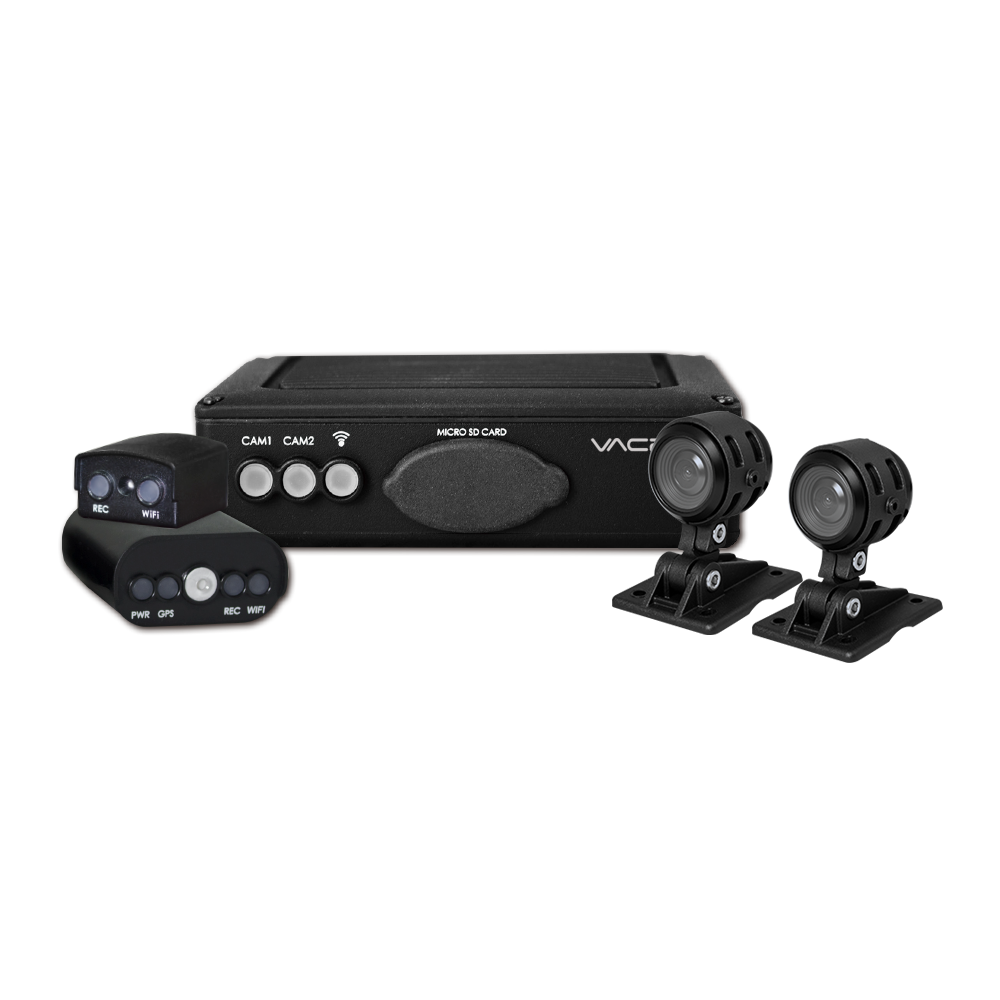

Motorbike DVRs | VVH-MDE58G

Product Features

Auto video recording system which has 2 channels with 1080p resolution input and OBD (On-board display unit) which is optional, that goes with Microphone and recording video & audio simultaneously.
H.264 image compress technology, which ensures image dose not distorted.
Full HD video resolution.
Low power consumption and efficient heat dissipation, no build-in Lithium battery to prevent possible danger and heat explosion.
Devices start recording automatically when engine is on; device will save file and turn off automatically when engine is off.
Built-in supercapacitor, automatically extend video recording time after engine off, ensure all information save in Micro SD card.
It goes in emergency lock when incidents occur (should turn the function on) to keep the recording from being overwritten by latest/regular image recording.
Built-in WiFi, capable to watch live video, playback and backup files by download APP in IOS or Android system
Made in Taiwan

DVR
Inputs	2 channels in 1080P
Resolution	(a) 1080p
Power	(b) CH1 30FPS、CH2 30FPS
	(a) Power consumption 1 A when DC12V input
	(b) Operating voltage: DC10V ~ DC15.6V
	(c) Starting voltage requires DC10V or above.
Delayed recording	Built-in supercapacitor for power resumed and
Delayed recording	back up the data back in Micro SD.
Temp.	Operating temp.：-20°C-55°C (in open air places)
Temp.	Storage temp.： -40°C-85°C
Storage device	Memory card must be Class 10 or above as
Storage device	SDHC/SDXC Micro SD ( as 8GB or above, maximum 128GB)
Recording	Automatically recording when power is on
Recordings	Videos, dates, times, Audio, G sensor & GPS tracking data.
Recordings	(GPS unit is optional)
Storage	Particular file format that goes with dominated video player
Sound input	Particular file format that goes with OBD for sound input
Time	Embedded perpetual calendar time and automatically
Time	corrected when connecting to APP or GPS (optional)
Display	Viewing live images by using WiFi connecting to
Display	APP and image playback.
Size	906127mm

VEHICLE CAMERA
Power	DC5V ±10%； 170mA
Resolution	NTSC/PAL Full HD 1920 x 1080
Resolution	Max. 30FPS
Image Sensor	1/2.7” CMOS Digital Image Sensor
View Angle	Horizontal:110 ° / Vertical : 90 °/ Diagonal:140°
Lens	3.3mm
Temperature Tolerance	Operation -20℃～60℃ (In disclosed space).
Temperature Tolerance	Storing temperature: -40℃～85℃.
Output	Power connector
Waterproof and dustproof level	IP65

OBD (Optional)
Lights	4LED (WIFI、REC、GPS、POWER)
GPS	YES
Interrupted detection	YES
Input	Monitor input: GPS data, Microphone audio input
Waterproof and dustproof level	IP66

Simple Monitor(optional)
Terms	Specifications
Lights	2LED (WIFI、REC)
Interrupted detection	YES
Microphone	Audio input
Waterproof and dustproof level	IP66

Download support

Software Support

Product Model	Software Version	Download	Explanation
VVH-MDE58G(MP4)		P754_V173	2021.01.04_Update time abnormal correction

Player

Product Model	Software Version	Download	Explanation
VVH-MDE58G		V2.2.6.352	Google Map display correction

Download Manual

Product Model	Software Version	Download	Explanation
VVH-MDE58G		V1.0	QUICK MANUAL V1.0
