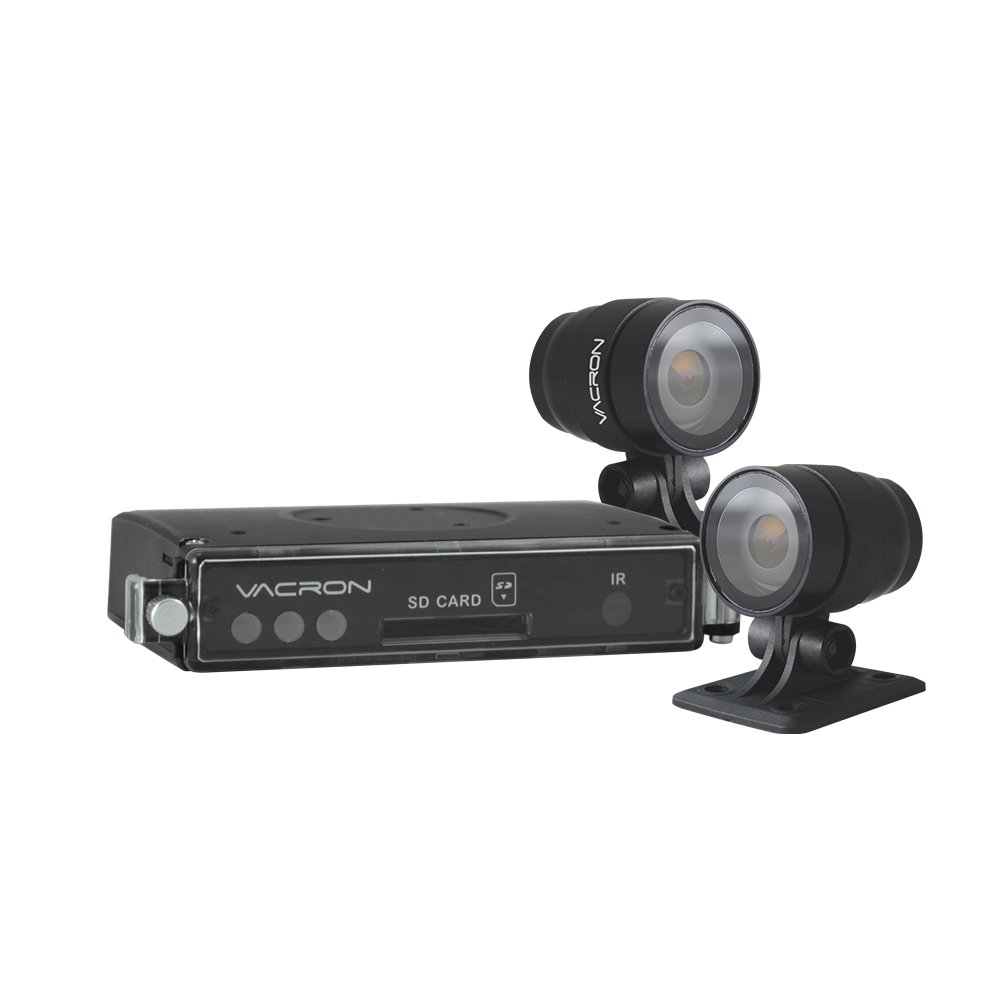

VVH-MDE16

2CH / D1 / WIFI / H.264 / SD card

  • DC10~14.5V

  • -15~50°C

  • 強制錄影

  • SD

Download Catalog

Product Features

  • Miniature video recording system with 2-way video input, which suitable for vehicle.
  • H.264 video compression screen without distortion.
  • Vehicle charger, Low power consumption and excellent heat radiation. Lithium battery is not used to eliminate risks of overheating and “explosion
  • Turn on the engine, automatic start loop recording; Turn off the engine, saving the data and shutdown the video recording automatically.
  • Built-in gold capacitor. If the machine turns off, the video recording will be automatic delay, which is ensure that the data saving into the memory card.
  • The external USB WiFi dongle is available for immediate viewing and backup file on your mobile device.
  • Made in Taiwan
DVR VVH-MDE16

Items

Description

Video input

2 Channel, support similar 2 channel cameras

Frame Size

NTSC: 30 fps (D1); PAL: 25 fps (D1)

Voltage and Current

DC12V, 250mA (When the old capacitor is charging, Host voltage and current are about 500mA)

Power supply

  1. ACC ON power offer by 12V vehicle battery

  2. ACC OFF delay about 30 seconds shut down the main power

  3. ACC OFF Standby current 5mA or less

  4. Built-in gold capacitor, after the main power shut down, it can be delayed for 3 seconds to save the file for the host.

Operating Temperature

-15°C~ 50°C

Storage

Recommend to use SDHD card, 4G or above, class 10 or better.

Recording

Automatically starts continuous recording when powered on

Recording Content

Date, time, video, audio

Storage format

Specific file format, need to play with a dedicated play software

Time setup

Automatic calibration by GPS signals. If GPS signal is unavailable, internal clock will be used.

Input and output device

  1. Red light:Flashing indicates the video is recording (when  G-sensor active, the red light flicker higher frequency).

  2. Green light:Light always on is indicated power on.

  3. DC12V power input.

  4. Image input aperture (1 Vp-p composite video output, 75 ohms), video input has to distinguish between PAL or NTSC system.

  5. USB 2.0 Input aperture( can select the optional wireless network card connection to WiFi wireless Internet)






CAMERA

Power

Input voltageDC5V~DC12V ±10%;Current consumption about 500mA

Image resolution

NTSC/PAL

Highest at 30FPS

CMOS

1/4 inch CMOS

Camera angle

horizontal angle 110°/ vertical angle 55°/ diagonal angle 130°

Camera lens

2.0mm (optional)

Temperature range

Operating temperature:-20°C~60°C (Non-confined space with naturally cooling environment)

Preservation temperature:-40°C~85°C

Output terminal

Micro Din

Size

30x43x50mm



Download support

Software Support


Product Model DownloadExplanation
VVH-MDE16A / VVH-MDE16 P200_V242021.01.04Update time abnormal correction

Player


Product Model DownloadExplanation
VVH-MDE16A / VVH-MDE16 V2.2.6.352Google Map display correction

Download Manual


Product Model DownloadExplanation
VVH-MDE16 V1.0QUICK MANUAL V1.0
