Mobile Surveillance

Motorbike DVRs

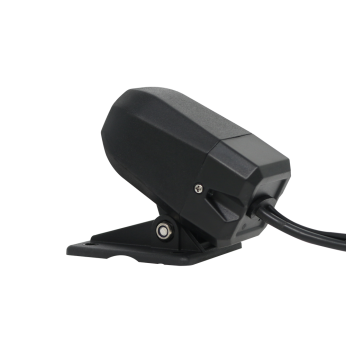

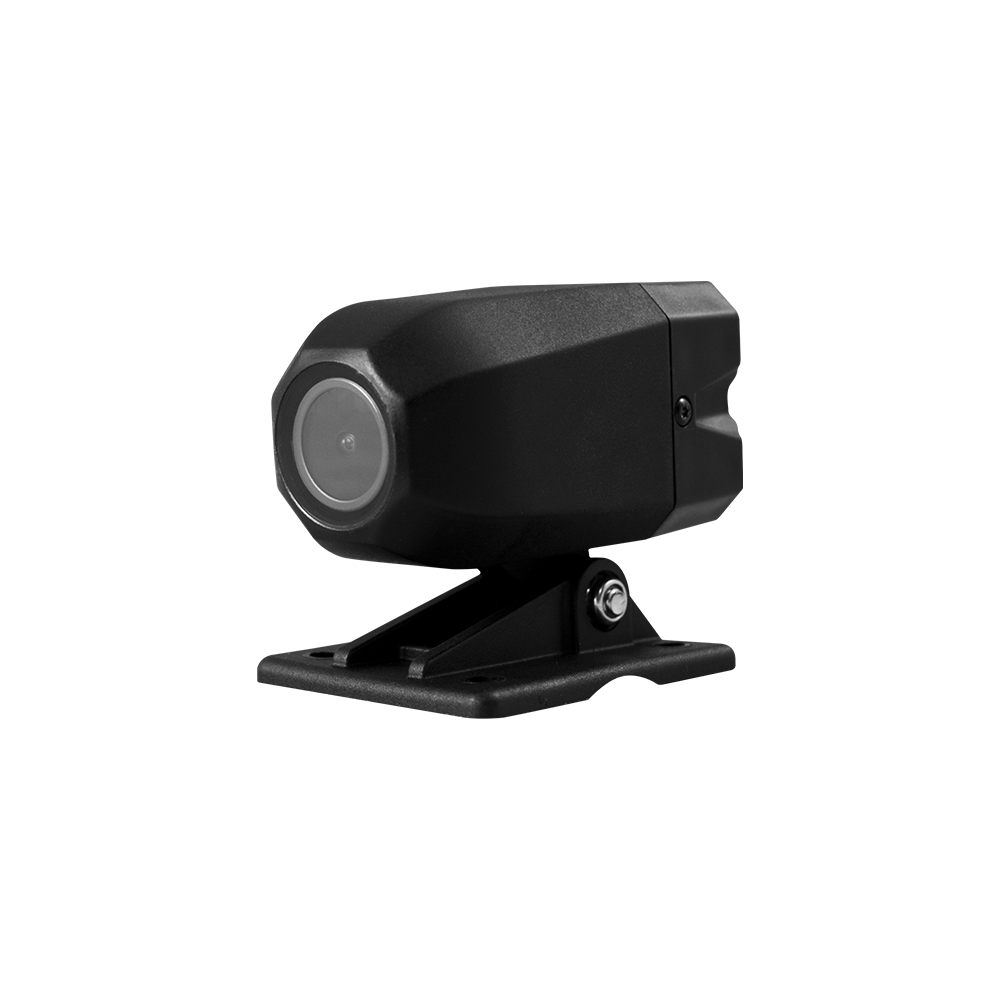

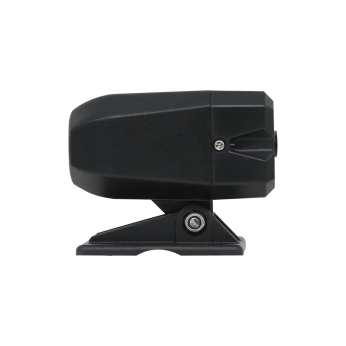

VVG-CBE59

1CH / 1080P / WIFI / Microphone / H.264

  • DC5V

  • 110º

  • 1/2.9"CMOS

  • 0.1 LUX

  • MIC Built-in

  • G-Sensor

  • 58dB

Download Catalog

Product Features

  • Car camera, the horizontal angle of photography is about 110˚,Equipped with a microphone for simultaneous audio and video recording.
  • H.264 image compression without distortion,Built-in EMMC 32G for video record, Full HD video resolution.
  • Car charging source, low power consumption and good heat dissipation, no built-in lithium battery, No fear of high temperature, no doubt about bursting.
  • The engine starts, automatically turns on the loop recording; the engine is turned off, and it automatically archives and shuts down.
  • Built-in WiFi function, you can download APP,Real-time preview, playback files, and backup files on Apple or Android mobile devices.
  • Made in Taiwan.
Image Sensor 1/2.9" SONY CMOS Sensor
Effective pixels 2.12 Mega Pixel
Image pixels 1920(H)×1080(V)
Image system NTSC PAL
Resolution 1080P
Synchronization system Internal synchronization
Scanning system 2:1 interlaced scanning
Minimum illumination 0.1LUX
Signal to noise ratio Min 58db
Automatic gain Yes
Electronic Shutter Auto: (1/25NTSC)(1/25 PAL)sec to 1/50,000 sec
White balance Automatic
Microphone Built-in mono high-sensitivity microphone
Lens Board Lens 3.3mm F1.8
Viewing angle 110˚ (Horizontal)/140˚ (Diagonal)/80˚ (vertical)
WLAN Wi-Fi (Optional) IEEE802.11b/g/n, Wi-Fi compliant
WPA,WPA-PSK,WPA2,WPA2-PAK,WEP
64bit&128bit, IEEE802.11x,IEEE802.11i
G-Sensor built-in 6-axis sensor
(3D accelerometer and 3D gyroscope)
Built-in memory eMMC32GB
Input power DC5V/1A
Current consumption 750mA
Storage temperature - 20° C ~ + 80°C
Operating temperature - 10° C ~ + 60°C
Dimensions (LxWxD) L66 x W33 x H33 mm ( without stand bracket)
