Mobile Surveillance

Dash Cam

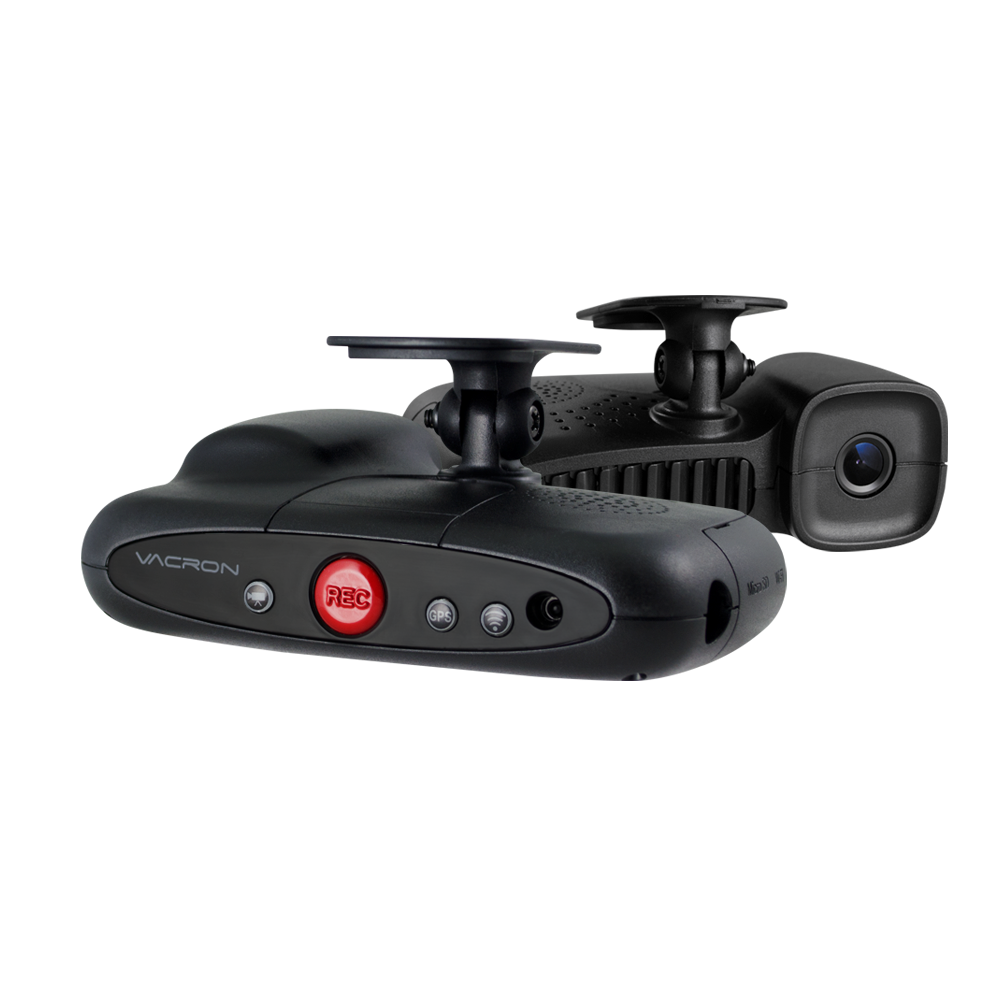

VVG-CBE36

1CH / 720P / WIFI / SD card / GPS

  • 100º

  • Remote

  • MIC Built-in

  • G-Sensor

  • 延遲錄影

  • TVout

  • GPS

  • MAP

  • SD

Download Catalog

Product Features

  • Low Lux High Quality Images with CMOS Sensor.
  • Built-in supercapacitor, keep the real moment when accident happened.
  • High sensitive microphone to record sound data inside/outside the vehicle.
  • Storage max to 128GB Micro SD card.
  • Loop recording, start record when insert memory card and power on.
  • Manually recording to save important data.
  • Built in G-Sensor save event securely.
  • Google Map driving route tracking record.
  • TV-Out, output to the monitor inside the vehicle.
  • WiFi available, live view and playback through mobile devices.
  • Made in Taiwan

Item

Specification

Sensor

CMOS Sensor

View Angle

2.45mm Outside vehicle approx 100 degree

Recording Frame

NTSC：720P/ 30fps；PAL：720P/ 25fps

Voltage

Using DC5V±5%
1A adapter Insert 1.5Fsuper capacitor

TV-Out

TV-Out (1 Vp-p composite video output, 75 ohms), Video Output format: NTSC / PAL alternative.

Operating Temp

-10 degree ~ +60 degree

Recording Frame

Automatic recording after power turned on, after a power failure delayed 3S stop recording.

Storage Device

Micro SDHC Card 8GB/Class 10 or above specification is available max 128GB

Recording Content

Date, time, image, sound, G-sensor data, GPS data.

Recording Format

Specific format for software player. H.264 compression

Microphone

Build-in high sensitivity of single microphone for automatic voice adjustment.

Time Setup

Auto-calibrating by GPS signals. If GPS is not available, the built-in clock will be used.

WiFi

Inside WiFi Dongle

G-Sensor

Internal 3D G-Sensor

Download support

Player

　 　 　 　 　 　 　 　 　 　
Product Model DownloadExplanation
VVG-CBE36 V2.2.6.352Google Map display correction

Download Manual

　 　 　 　 　 　 　 　 　 　
Product Model DownloadExplanation
VVG-CBE36 V.1.0QUICK MANUAL V1.0
