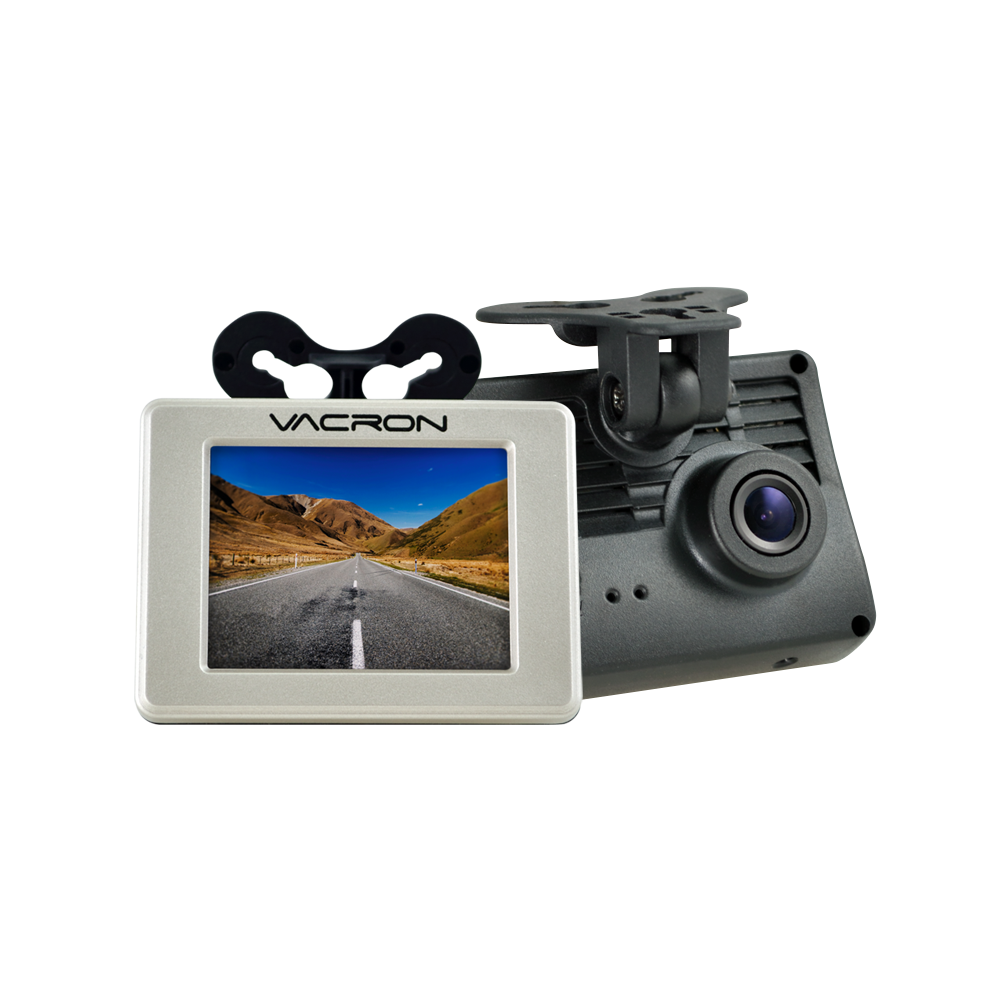

Dash Cam | VVG-CBN29

Product Features

Built-in supercapacitor offers extensional power supply and ensures video is well stored of critical moment and compact.
120° Wide angle glare-depressed lens .
Low light high sensitive sensor equipped.
High environmental tolerant casing, high temperature resistant casing which doesn’t release toxic gas and deformation.
HD Recording Resolution.
SDHC storage card max. to 128GB.
Auto loop recording when memory card is inserted and device is power on.
Emergency recording button protect data in secured area from being overwritten.
Build-in G-Sensor event recording.

Sensor	CMOS Sensor Maximum 60fps
Resolution	NTSC 1280*720 / 30fps
Resolution	PAL 1280*720 / 25fps
Voltage	DC5V±5%、1A
Voltage	Built-In 1.5F super capacitor
Operating Temperature	-10 ℃ - +60 ℃
Storage Device	『SanDisk』SDHC Card Class 10 or above recommend (at least 8GB, up to 128GB)
Recording Mode	Start recording automatically when power up, extensional 3 seconds recording after power off.
Recording Content	Date, Time, Image, Sound, G-Sensor data
Storage format	TS file is playable on most players, exclusive player available on Vacron website.
Storage format	Use remote control to playback
Audio Input	Built-in Microphone
Time Setup	Setup time by OSD Interface
G-Sensor	Build-in 3D G-Sensor
In/Out Device	Red : Recording (flashing)
	(Indicator light flashes fast when doing emergency recording)
	DC+5V Power input
	Built-in 2.5” LCD
Accessory	5V Cigarette power adaptor/ Bracket holder/Remote control

Download support

Software Support

Product Model	Software Version	Download	Explanation
VVG-CBN29		V2.2318

Player

Product Model	Software Version	Download	Explanation
VVG-CBN29		PLAYER V2.1.6.132

Download Manual

Product Model	Software Version	Download	Explanation
VVG-CBN29		V2.0
