Mobile Surveillance

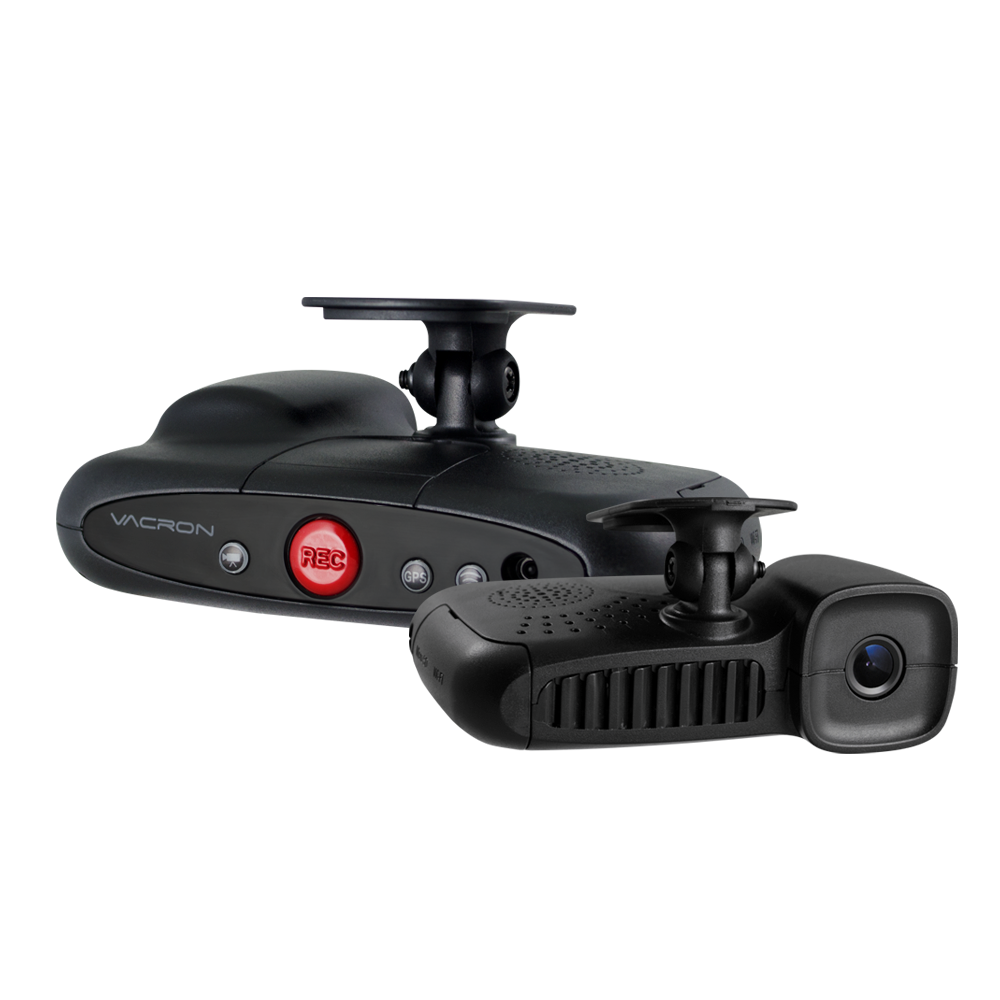

Dash Cam

VG01

1CH / 720P / WIFI / Cloud function

  • -10~60°C

  • 100º

  • G-Sensor

Download Catalog

Product Features

  • Built-in supercapacitor, keep the real moment when accident happened.
  • Storage max to 128GB Micro SD card
  • Loop recording, start record when insert memory card and power on.
  • Manually recording to save important data
  • Built in G-Sensor save event securely
  • Google Map driving route tracking record.
  • TV-Out, output to the monitor inside the vehicle.
  • WiFi or Bluetooth available, live view streaming uploading to cloud.
  • Made in Taiwan.

Items

Specification

Sensor Device

CMOS Sensor.

Lens angle

2.45mm Lens, Horizontal angle 100 degrees.

Resolution

NTSC: 720P/30fps

PAL: 720P/25fps

Voltage

(a) DC5V±5% / 1A Transformer.

(b) Built-In 1.5F Super Capacitor backup power.

Operating Temperature

-10℃ - +60℃.

Storage Device

Use Micro SD Card Class 10 8GB or above, max to 128GB.

Recording Mode

Start record automatically when power on, extensional 3 seconds record after power off.

Recording Content

Date, Time, Image, Sound, G-Sensor data, GPS data.

Storage Format

Playback specific files with dedicated software or through
smart phone APP.

Audio Input

Built-in Microphone.

Time Setup

GPS calibrate time automatically or built in calendar clock if no GPS signal.

GPS

Satellite Positioning, drive route track record.

G-Sensor

Internal 3D G-Sensor.

WiFi / Bluetooth

Built-in WiFi or Bluetooth

Download support

Software Support

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
Product Model DownloadExplanation
VG01WS & VG01(WiFi) V2.1109
VG01(BLUETOOTH) V2.1108

Player

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
Product Model DownloadExplanation
VG01WS & VG01(WiFi) V2.2.6.352 Google Map display correction
VG01(BLUETOOTH) PLAYER V2.2.6.221

Download Manual

　 　 　 　 　 　 　 　 　 　
Product Model DownloadExplanation
VG01WS (WIFI) V1.0APP V1.0
QUICK MANUAL V1.0
