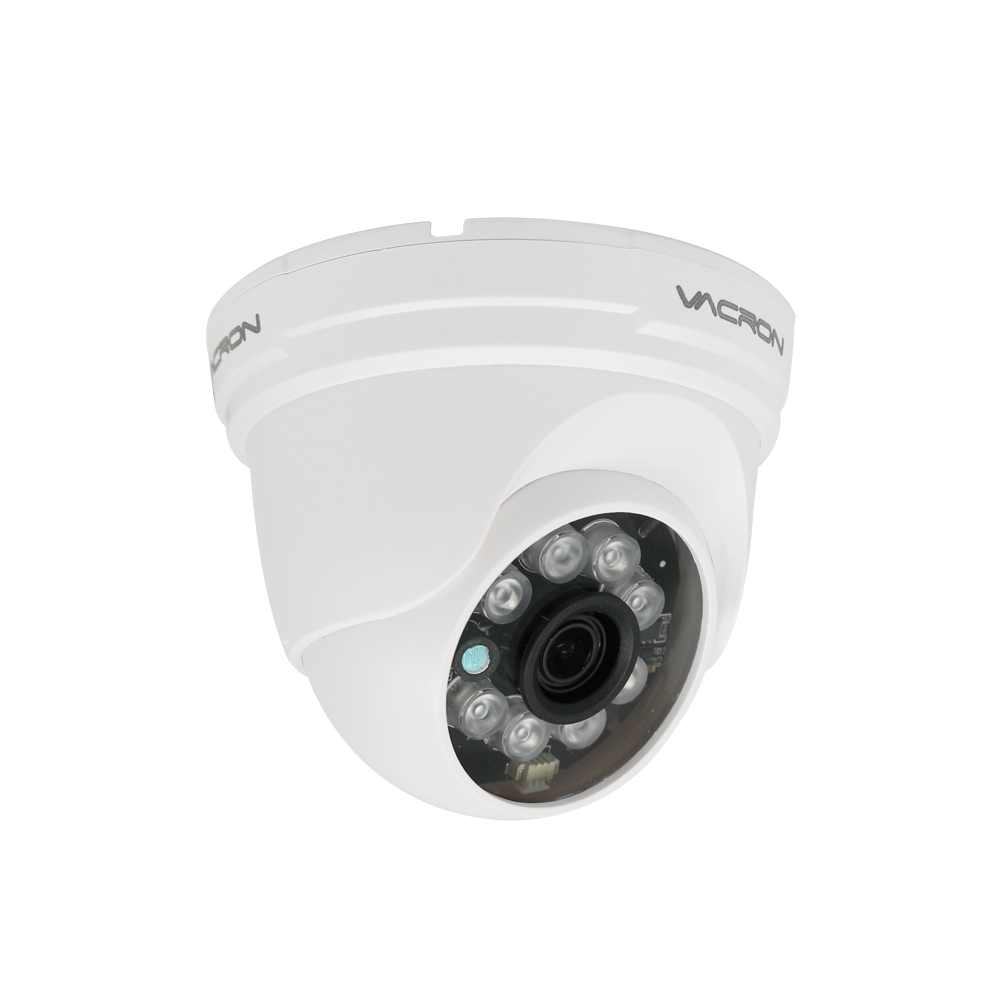

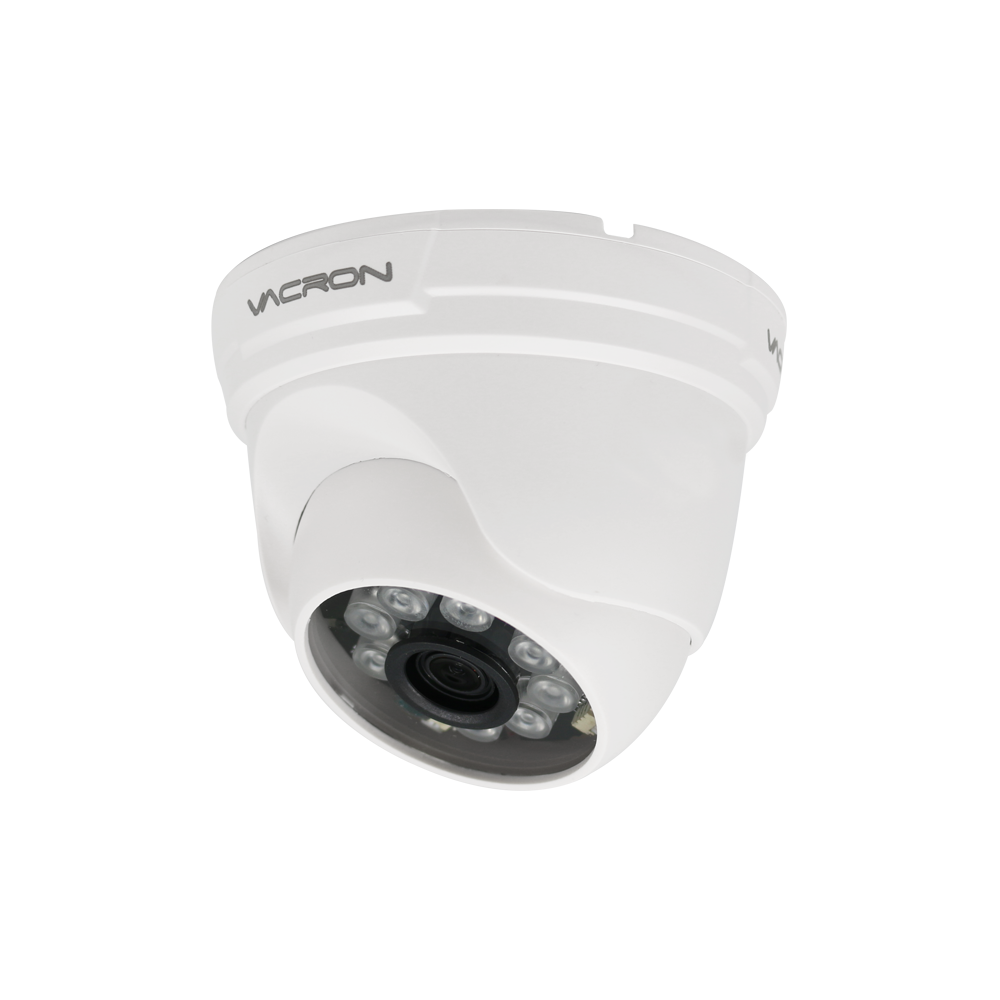

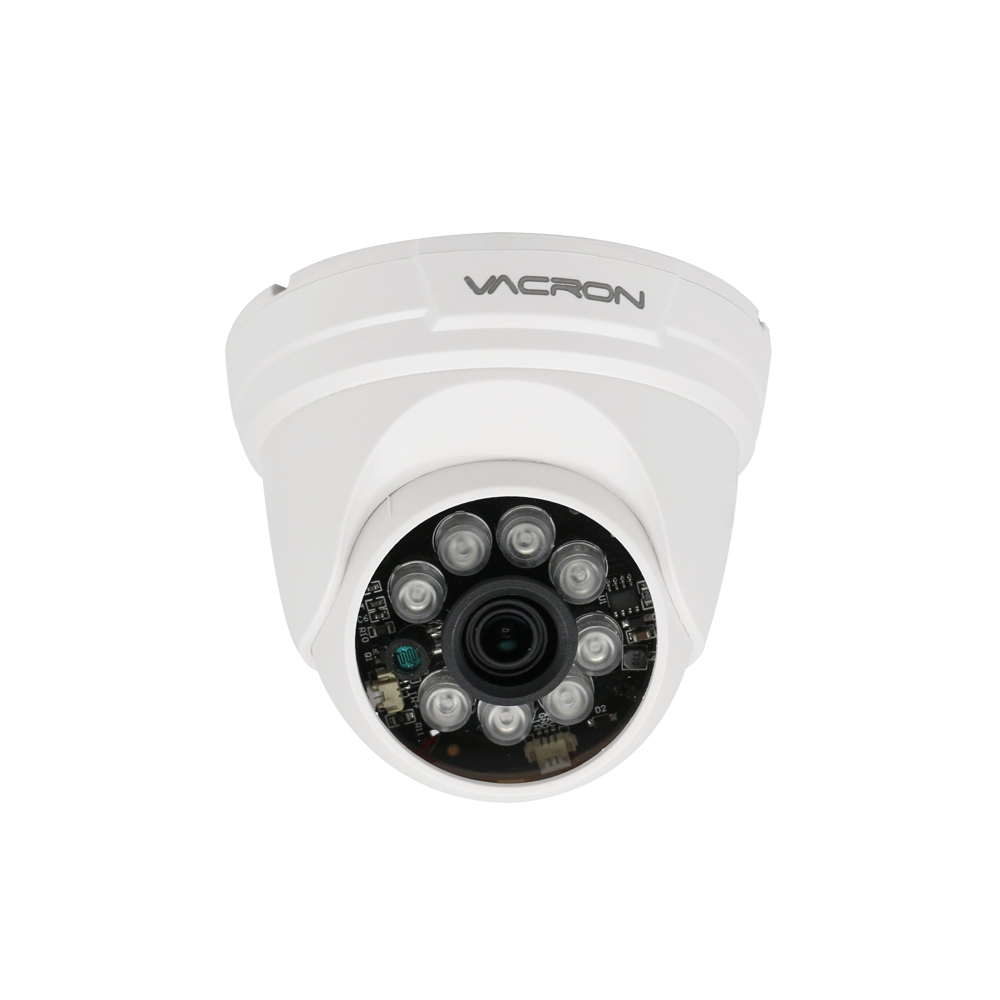

CCTV Camera
1080P / Dome / IR
DC12V
LENS 3.6mm
30M
50dB
8 LEDs
1/2.8"CMOS
-20~50°C
Product Features
Pick Up Element |
1/2.8" CMOS sensor |
Video System |
NTSC / PAL |
Image Signal Process |
Digital Signal Processor |
Lens |
3.6mm |
Number Of Pixel |
1920(Horizontal) x 1080(Vertical) |
Horizontal Resolution |
2M@30fps |
Power Supply |
DC 12 ± 1V |
Power Consumption |
120mA (IR Off);330mA (IR On) |
ICR |
Support |
Electronic Shutter |
AUTO/1/50(1/60)sec ~ 1/100,000sec |
White Balance |
Auto |
Gain Control |
Auto |
S/N Ratio |
≥50dB |
Day Night Auto Switch |
Support |
LEDs |
8 PCS |
IR Range |
30M |
IR Wavelength |
850nm |
Minimum Illumination |
0.01Lux |
OUTPUT |
AHD、TVI、CVI、CVBS |
Language |
English / Simplified Chinese / Traditional Chinese / |
Operating Temperature |
-20℃~+50℃ |
Dimensions (H×W×D) |
Φ99 × 72 mm |
Weight |
About 185g |
Simliar Product
Update Date 2021/12/07 | VCF-5M16HDB | VCN-S5916HDB | VCF-5716HDB |
Resolution | 5MP | 1080P | 1080P |
Pick Up Element | 1/2.8" CMOS | 1/2.8" CMOS | 1/3" CMOS |
LENS | 3.6mm | ||
LEDS | 8 PCS | ||
IR | ✓ | ||
IR Wavelength | 850nm | ||
IR Range | 30m | ||
Sensitivity | 0.1Lux | 0.01Lux | 0.1Lux |
OUTPUT | AHD、CVBS、TVI、CVI |
*If the above specifications are different, please refer to the latest date
