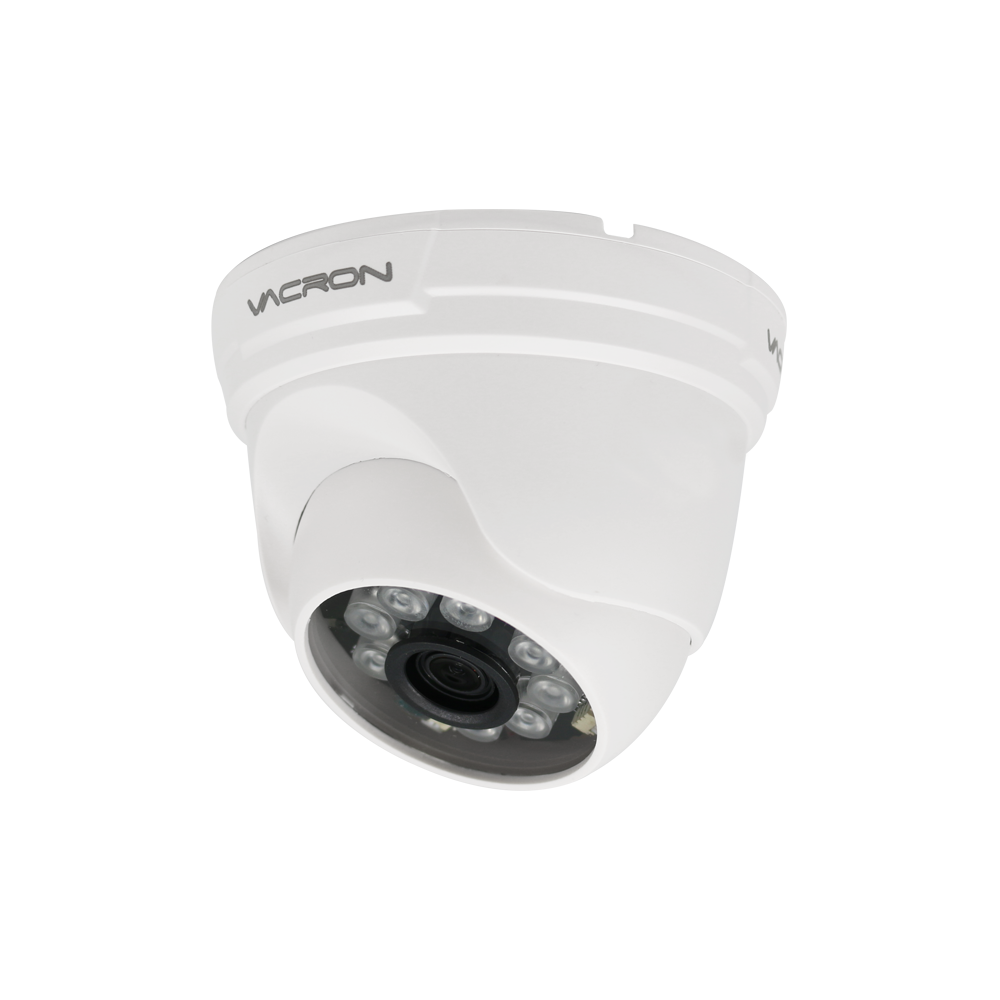

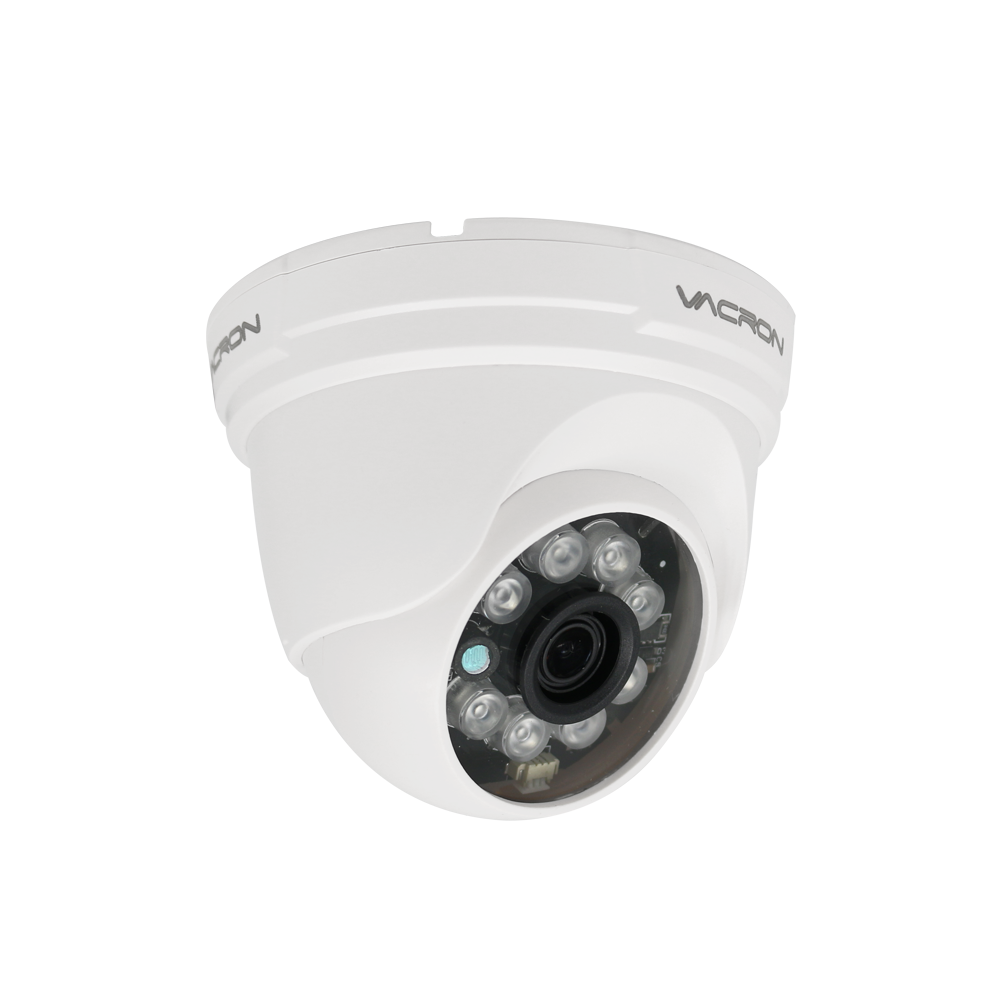

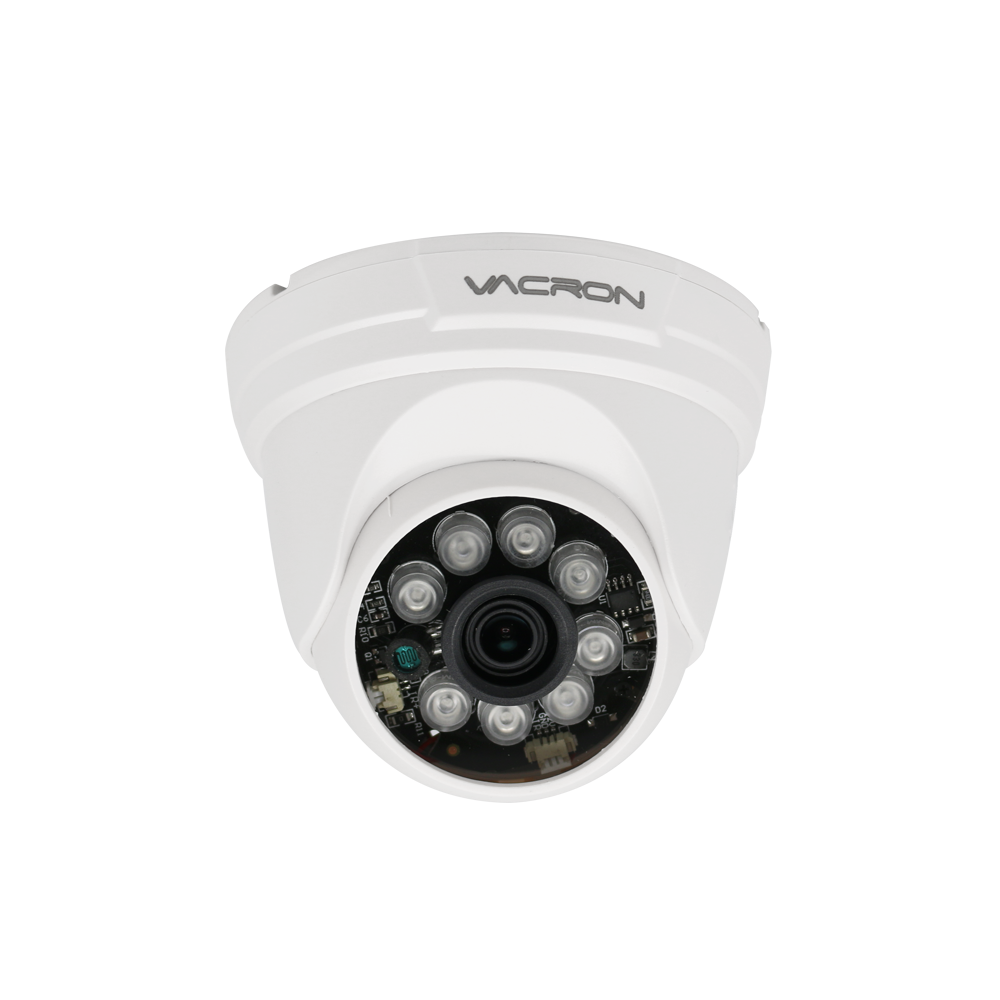

CCTV Camera
Product Features
| Pick Up Element | 1/3" CMOS sensor |
| Video System | NTSC/PAL |
| Image Signal Process | Digital Signal Processor |
| Lens | 3.6mm |
| Number Of Pixel | 1920 (Horizontal) x 1080(Vertical) |
| Horizontal Resolution | 1080P@30fps |
| Power Supply | DC 12 ± 1V |
| Power Consumption | 120mA(IR Off)；340mA(IR On) |
| ICR | Support |
| Electronic Shutter | Auto |
| White Balance | Auto |
| Gain Control | Auto |
| S/N Ratio | ≥50dB |
| Day Night Auto Switch | Support |
| LEDs | 8 PCS |
| IR Range | 30M |
| IR Wavelength | 850nm |
| Minimum Illumination | 0.1Lux |
| OUTPUT | AHD or CVBS or TVI or CVI (Default setting: AHD Mode) |
| Language | English / Simplified Chinese / Traditional Chinese / Russian / Spanish / French / Polish / Italian / Portuguese / Japanese / Korean / Greek |
| IP Rating | IP66 |
| Operating Temperature | -20℃~+50℃ |
| Dimensions (H×W×D) | Φ99 × 72 mm |
| Weight | About 185g |
Simliar Product
| Update Date 2021/12/07 | VCF-5M16HDB | VCN-S5916HDB | VCF-5716HD |
| Resolution | 5MP | 1080P | 1080P |
| Pick Up Element | 1/2.8" CMOS | 1/2.8" CMOS | 1/3" CMOS |
| LENS | 3.6mm | ||
| LEDS | 8 PCS | ||
| IR | ✓ | ||
| IR Wavelength | 850nm | ||
| IR Range | 30m | ||
| Sensitivity | 0.1Lux | 0.01Lux | 0.1Lux |
| OUTPUT | AHD、CVBS、TVI、CVI | ||
*If the above specifications are different, please refer to the latest date
