Pick Up Element
|
1/2.8" CMOS sensor
|
|
Video System
|
NTSC / PAL
|
|
Image Signal Process
|
Digital Signal Processor
|
|
Lens
|
3.6mm
|
|
Number Of Pixel
|
1920(Horizontal) x 1080(Vertical)
|
|
Horizontal Resolution
|
2M@30fps
|
|
Power Supply
|
DC 12 ± 1V
|
|
Power Consumption
|
120mA (IR Off)；340mA (IR On)
|
|
ICR
|
Support
|
|
Electronic Shutter
|
AUTO/1/50(1/60)sec ~ 1/50,000sec
|
|
White Balance
|
Auto
|
|
Gain Control
|
Auto
|
|
S/N Ratio
|
≥50dB
|
|
Day Night Auto Switch
|
Support
|
|

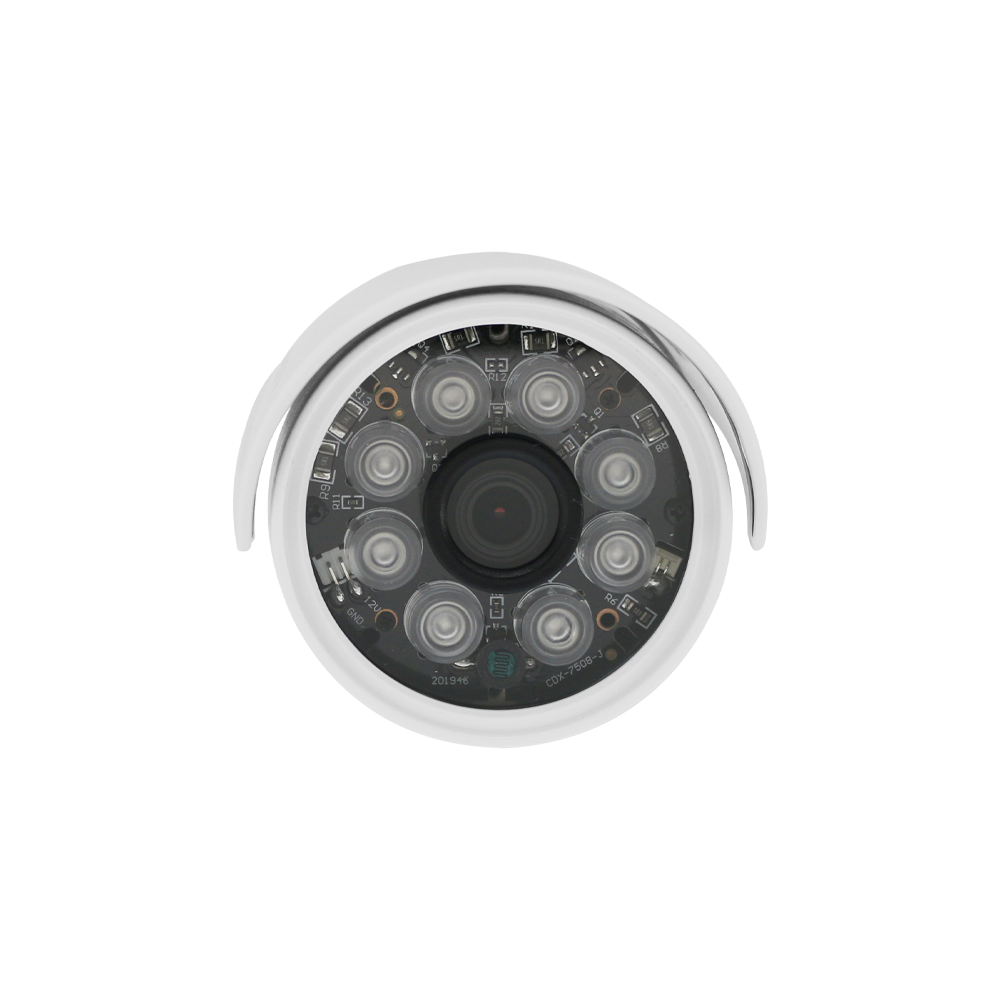

LEDs
|
8 PCS
|
|
IR Range
|
35M
|
|
IR Wavelength
|
850nm
|
|
Minimum Illumination
|
0.01Lux
|
|
Output
|
AHD、TVI、CVI、CVBS
|
|
Language
|
English / Simplified Chinese / Traditional Chinese / German / French / Italian / Spanish /Polish / Russian / Portuguese / Dutch / Turkish
|
|
IP Rating
|
IP66
|
|
Operating Temperature
|
-20℃~50℃
|
|
Dimensions (H×W×D)
|
150mm x 80mm x 75mm
|
|
Weight
|
About 450g
|
Simliar Product
| Update Date 2021/12/07 |
VCF-5K37H |
VCN-S5937H |
VCN-SH5937H |
VCF-5537H |
VCF-5737H |
| Resolution |
5MP |
1080P |
1080P |
1080P |
1080P |
| Pick Up Element |
1/2.5" CMOS |
1/2.8" CMOS |
1/2.8" CMOS |
1/3" CMOS |
1/3" CMOS |
| LENS |
3.6mm |
| LEDS |
8 PCS |
| IR |
✓ |
| IR Wavelength |
850nm |
| IR Range |
35m |
30m |
30m |
35m |
35m |
| Sensitivity |
0.2Lux |
0.01Lux |
0.01Lux |
0.1Lux |
0.1Lux |
| Starlight Color |
|
|
• |
|
|
| OUTPUT |
AHD、CVBS、TVI、CVI |
| Waterproof |
IP66 |
*If the above specifications are different, please refer to the latest date
