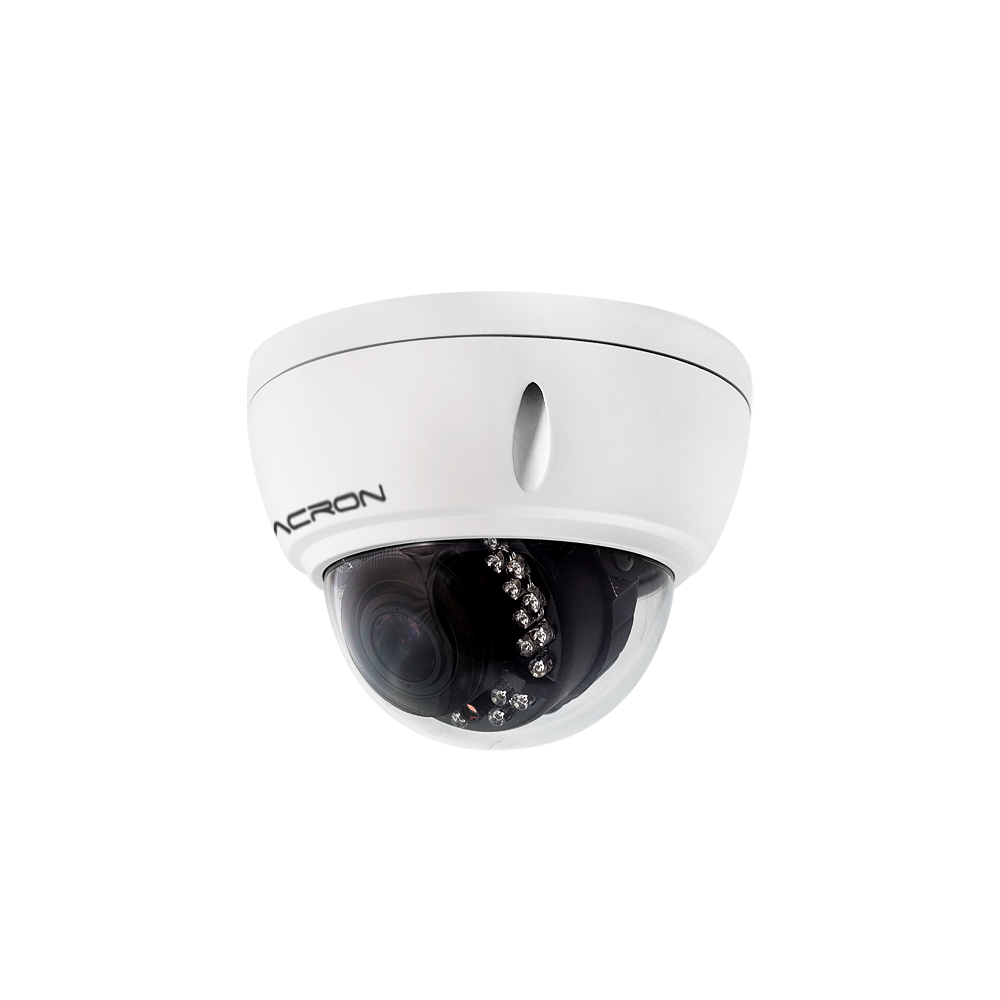

IP Camera
5MP / Dome / IR / H.265+
DC12V
15M
P.O.E
LENS2.8~12MM
1/2.8"CMOS
24 LEDs
Product Features
| Video System | Flash：16MB |
| RAM：256MB | |
| Sensor | Full HD High Quality 1/2.8” SONY CMOS Image Sensor |
| Lens | Vari-focal 2.8~12mm F1.8 |
| IR cut | Removable IR Cut filter |
| Low Lux | 0 Lux(IR ON) |
| IR LED | 24pcs IR LED |
| Compression | H.265+: 2560x1920 at 15fps |
| H.265+: 2048x1536 at 20 fps | |
| H.265+: 1920x1080 at 30fps | |
| H.265+、H.264、JPEG Multi-mode compression (Dual Codec) | |
| Multi-mode compression streaming | |
| Video Adjustment | 1.Adjustable image size, quality, and bit rate |
| 2.Time/Date stamp and text caption overlay | |
| 3.Brightness, Contrast, Saturation and Sharpness | |
| 4.Have: AGC、AWB、AES、BLC、WDR Features | |
| Networking Interface | 10 /100 Mbps RJ-45 |
| Protocol | IPv4, TCP/IP, DHCP, HTTP, RTSP, SNTP, DNS |
| Browser | Microsoft Internet Explorer 6.0 or above |
| Safari, Chrome or Firefox | |
| Alarm and Event Management | Motion Detection |
| E-mail notification or upload file to FTP | |
| Users | Max. 8 users for live view simultaneously |
| User Authorization | |
| OTA | OTA for Firmware upgrade |
| I/O | RJ-45 , DC12V |
| Power | DC12V or PoE IEEE802.3af Class 0 (optional) |
| Power Consumption | 3.6W(IR OFF)、18W(IR ON) |
| Weight | Net Weight: 690g |
| Dimensions | W:Φ135mm H:110mm |
| Operating Temperature | 0 ~ 45 °C |
Simliar Product
| Update Date 2021/12/09 | VIG-DS755V-D6 | VIG-DS755AV | VIG-DJ755V-Z5 |
| Resolution | 5MP | 1080P | |
| Pick Up Element | 1/2.8" CMOS | 1/2.9" CMOS | 1/3" CMOS |
| LENS | Varifocal 2.8~12mm | ||
| LEDS | 24pcs IR LED | ||
| IR | ✓ | ||
| IR Range | 15M | ||
| Sensitivity | 0Lux | ||
*If the above specifications are different, please refer to the latest date
