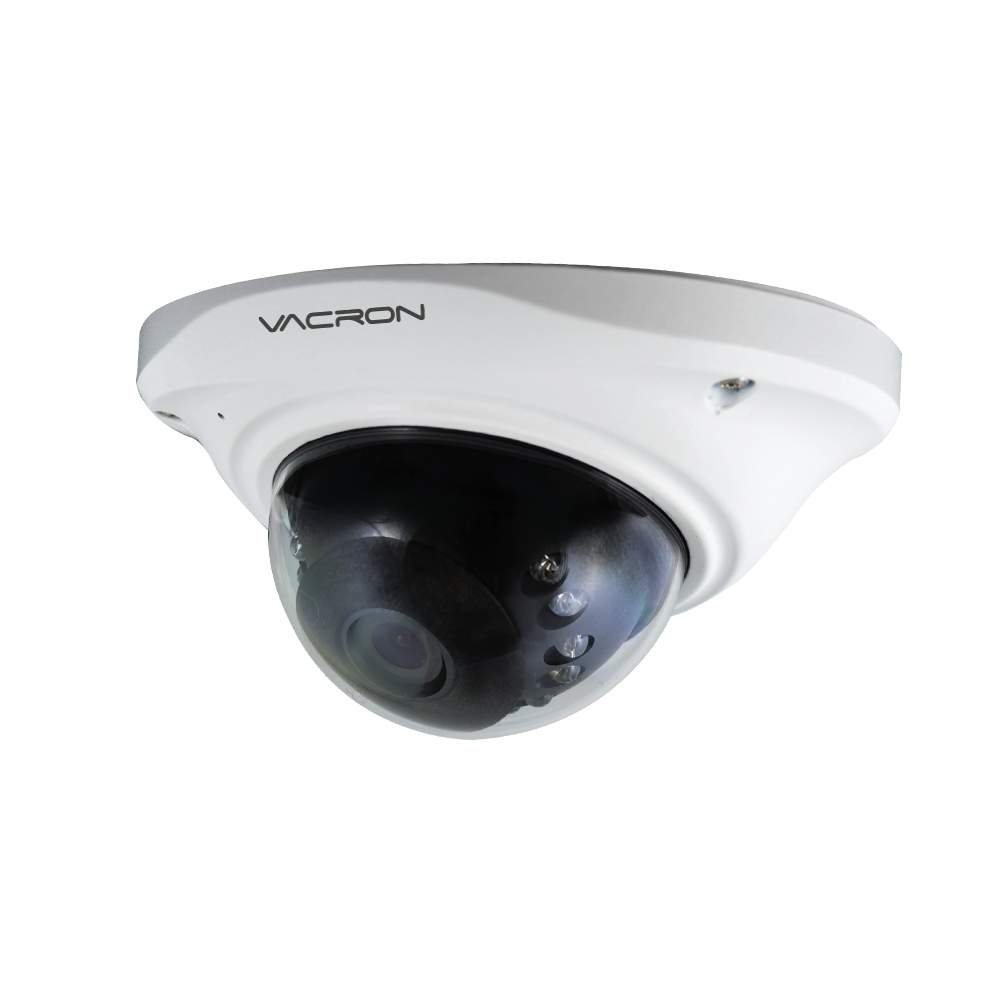

CCTV Camera
5MP / Dome / IP66 / IR
DC12V
LENS 3.6mm
12 LEDs
15M
0.1 LUX
50dB
1/2.8"CMOS
-20~50°C
Product Features
Pick Up Element |
1/2.8" CMOS sensor |
Video System |
NTSC / PAL |
Image Signal Process |
Digital Signal Processor |
Lens |
3.6mm |
Number Of Pixel |
2592 (Horizontal) x 1944(Vertical) |
Horizontal Resolution |
5M@20fps |
Power Supply |
DC 12 ± 1V |
Power Consumption |
120mA (IR Off);200mA (IR On) |
ICR |
Support |
Electronic Shutter |
AUTO/1/50(1/60)sec ~ 1/50,000sec |
White Balance |
Auto |
Gain Control |
Auto |
S/N Ratio |
≥50dB |
Day Night Auto Switch |
Support |
OSD Controller |
Support(option) |
LEDs |
12 PCS |
IR Range |
15M |
IR Wavelength |
850nm |
Minimum Illumination |
0.1Lux |
Output |
AHD、TVI、CVI、CVBS |
Language |
English / Simplified Chinese / Traditional Chinese / German / French / Italian / Spanish /Polish / Russian / Portuguese / Dutch / Turkish |
IP Rating |
IP66 |
Operating Temperature |
-20℃~50℃ |
Dimensions (H×W×D) |
Φ 120 x 60 mm |
Weight |
About 300g |
Simliar Product
Update Date 2022/01/28 | VCF-5M282HD | VCN-SH59282HD |
Resolution | 5MP | 1080P |
Pick Up Element | 1/2.8" CMOS | |
LENS | 3.6mm | 4mm |
LEDS | 12 PCS | |
IR | ✓ | |
IR Wavelength | 850nm | |
IR Range | 15m | |
Sensitivity | 0.1Lux | 0.01Lux / F1.2 |
OUTPUT | AHD、TVI、CVI、CVBS | |
Waterproof | IP66 |
*If the above specifications are different, please refer to the latest date
Download support
Download Manual
Product Model | Download | Explanation |
VCF-5M282HD | V.01 |
