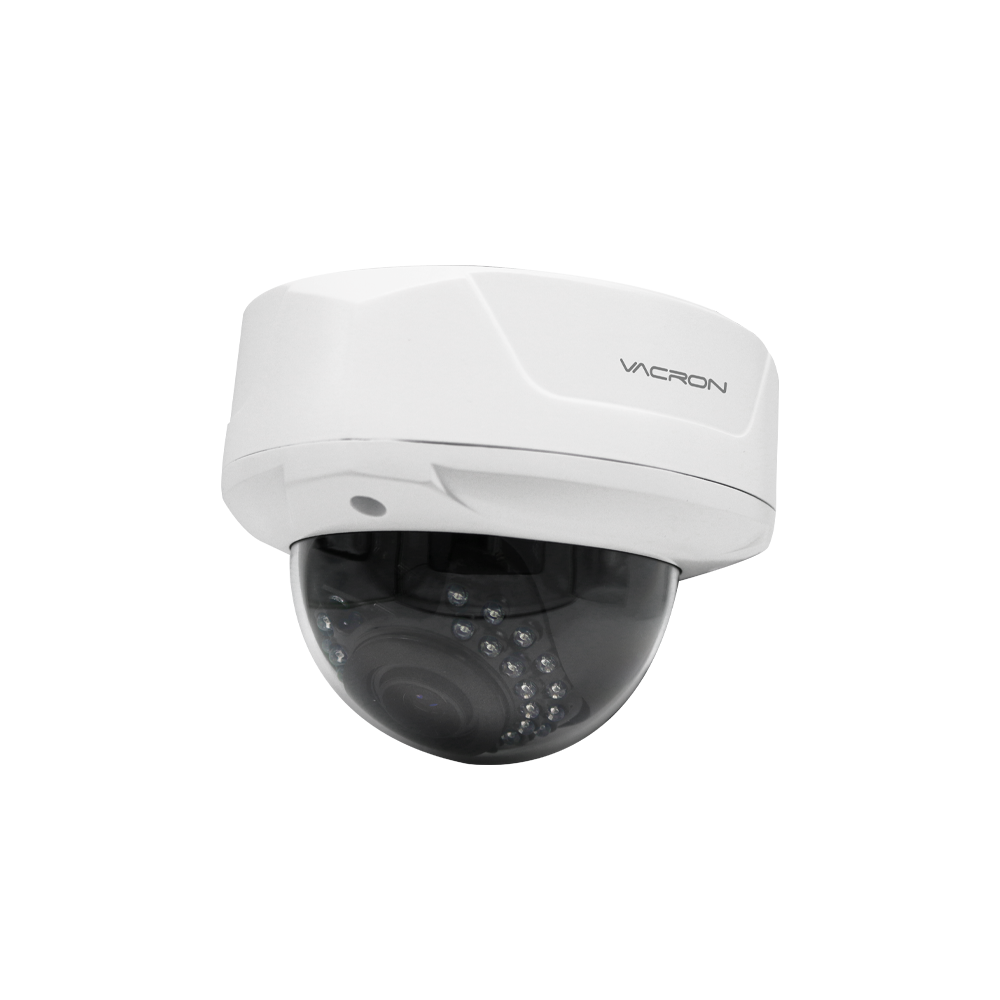

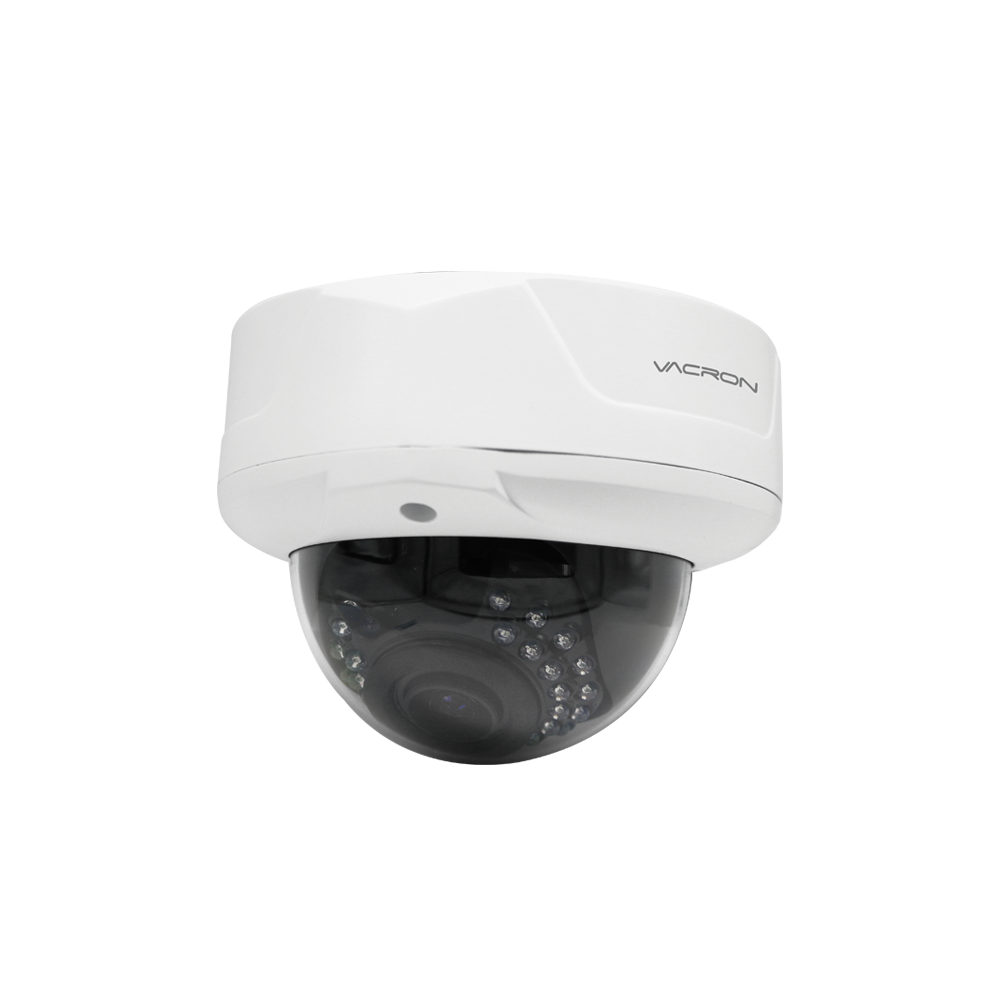

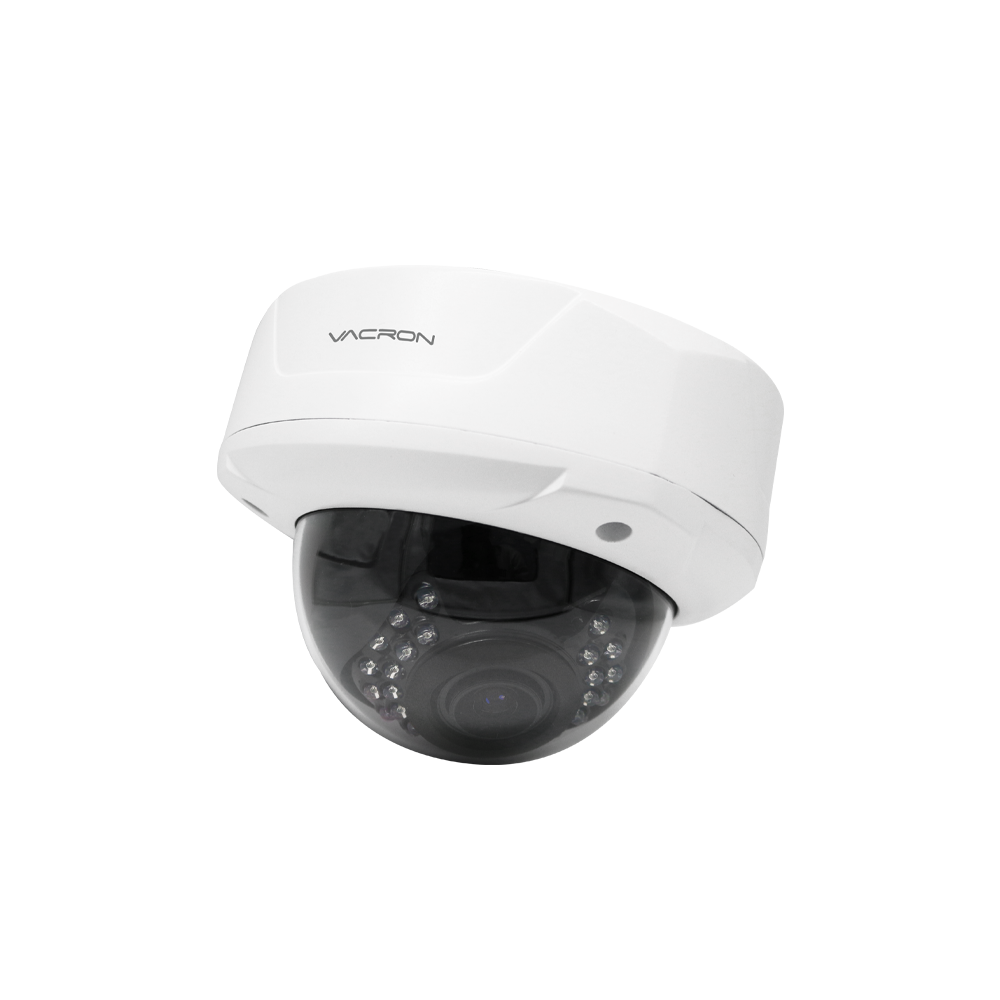

CCTV Camera
Product Features
|
Pick Up Element |
1/2.8" CMOS sensor |
|
Video System |
NTSC / PAL |
|
Image Signal Process |
Digital Signal Processor |
|
Lens |
2.8-12mm |
|
Number Of Pixel |
2592 (Horizontal) x 1944(Vertical) |
|
Horizontal Resolution |
5M@20fps |
|
Power Supply |
DC 12 ± 1V |
|
Power Consumption |
120mA (IR Off)；340mA (IR On) |
|
ICR |
Support |
|
Electronic Shutter |
AUTO/1/50(1/60)sec ~ 1/50,000sec |
|
White Balance |
Auto |
|
Gain Control |
Auto |
|
S/N Ratio |
≥50dB |
|
Day Night Auto Switch |
Support |
|
LEDs |
30 PCS |
|
IR Range |
25M |
|
IR Wavelength |
850nm |
|
Minimum Illumination |
0.1Lux |
|
OUTPUT |
AHD、TVI、CVI、CVBS |
|
Language |
English / Simplified Chinese / Traditional Chinese / German / French / Italian / Spanish /Polish / Russian / Portuguese / Dutch / Turkish / Japan |
|
Operating Temperature |
-20℃~50℃ |
|
Dimensions (H×W×D) |
Φ143 × 108mm |
|
Weight |
About 970g |
Simliar Product
| Update Date 2022/03/07 | VCF-5K57HD | VCF-5M57HD |
| Resolution | 5MP | 5M |
| Pick Up Element | 1/2.5" CMOS | 1/2.8" CMOS |
| LENS | 2.8-12mm | |
| LEDS | 30 PCS | |
| IR | ✓ | |
| IR Wavelength | 850nm | |
| IR Range | 25m | |
| Sensitivity | 0.2Lux | 0.1Lux |
| OUTPUT | AHD、CVBS、TVI、CVI | |
*If the above specifications are different, please refer to the latest date
Download support
Download Manual
| Product Model | Download | Explanation |
| VCF-5M57HD | V.01 |
