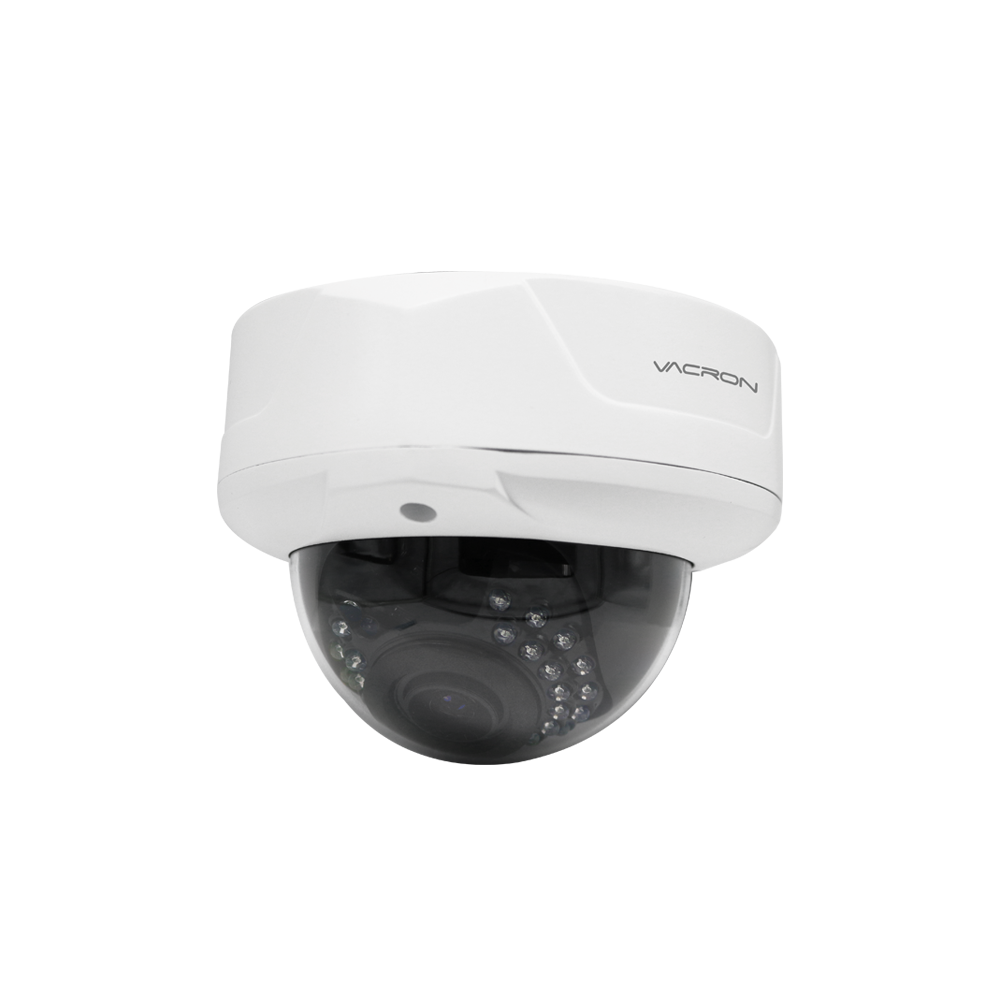

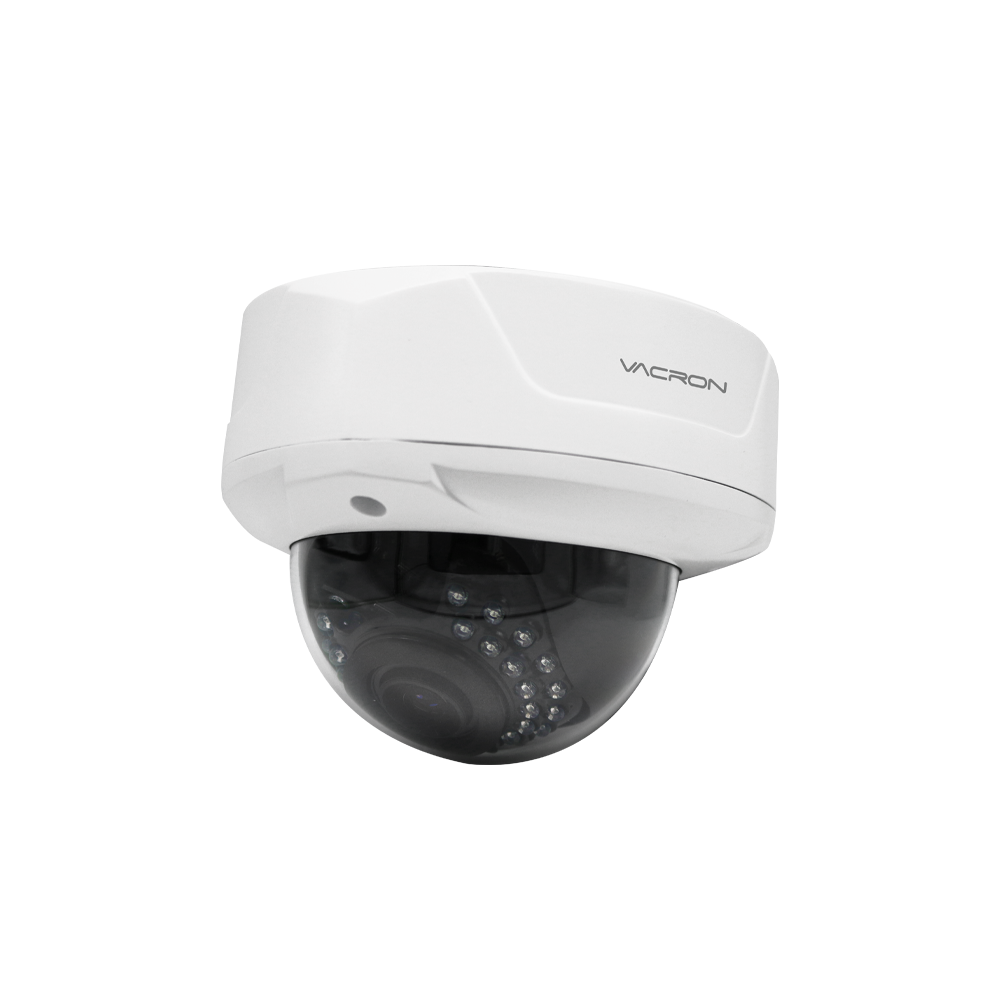

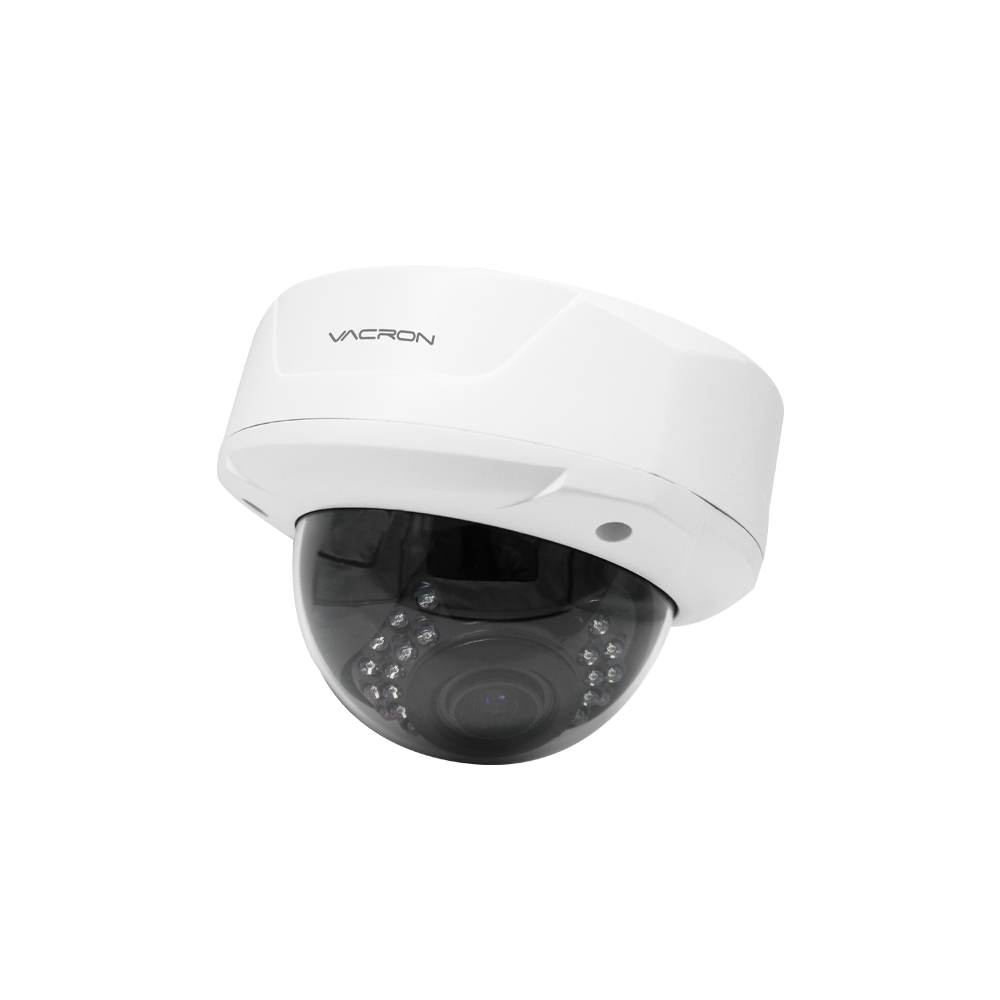

CCTV Surveillance System

CCTV Camera

VCF-5K57HD

5MP / Dome / IR

  • DC12V

  • 50dB

  • LENS2.8~12MM

  • 30LEDs

  • 25M

  • 1/2.8"CMOS

  • 0.2 LUX

Download Catalog

Product Features

  • 1/2.5" CMOS sensor
  • AHD 5MP high video quality transmission, up to 2608×1952 pixels.
  • 2.8-12 mm lens
  • AHD or CVBS or TVI or CVI output switch.

Pick Up Element

1/2.5" CMOS sensor

Video System

NTSC / PAL

Image Signal Process

Digital Signal Processor

Lens

2.8-12mm

Number Of Pixel

2608 (Horizontal) x 1952(Vertical)

Horizontal Resolution

5MP@20fps

Power Supply

DC 12 ± 1V

Power Consumption

120mA (IR Off);340mA (IR On)

ICR

Support

Electronic Shutter

Auto

White Balance

Auto

Gain Control

Auto

S/N Ratio

≥50dB

Day Night Auto Switch

Support

LEDs

30 PCS

IR Range

25M

IR Wavelength

850nm

Minimum Illumination

0.2Lux

OUTPUT

AHD、TVI、CVI、CVBS

Language

English / Simplified Chinese / Traditional Chinese / German / French / Italian / Spanish /Polish / Russian / Portuguese / Dutch / Turkish / Japan

Operating Temperature

-20℃~85℃

Dimensions (H×W×D)

Φ143 × 108mm

Weight

About 970g





Simliar Product



Update Date 2022/03/07 VCF-5K57HD VCF-5M57HD
Resolution 5MP 5M
Pick Up Element 1/2.5" CMOS 1/2.8" CMOS
LENS 2.8-12mm
LEDS 30 PCS
IR
IR Wavelength 850nm
IR Range 25m
Sensitivity 0.2Lux 0.1Lux
OUTPUT AHD、CVBS、TVI、CVI

*If the above specifications are different, please refer to the latest date
