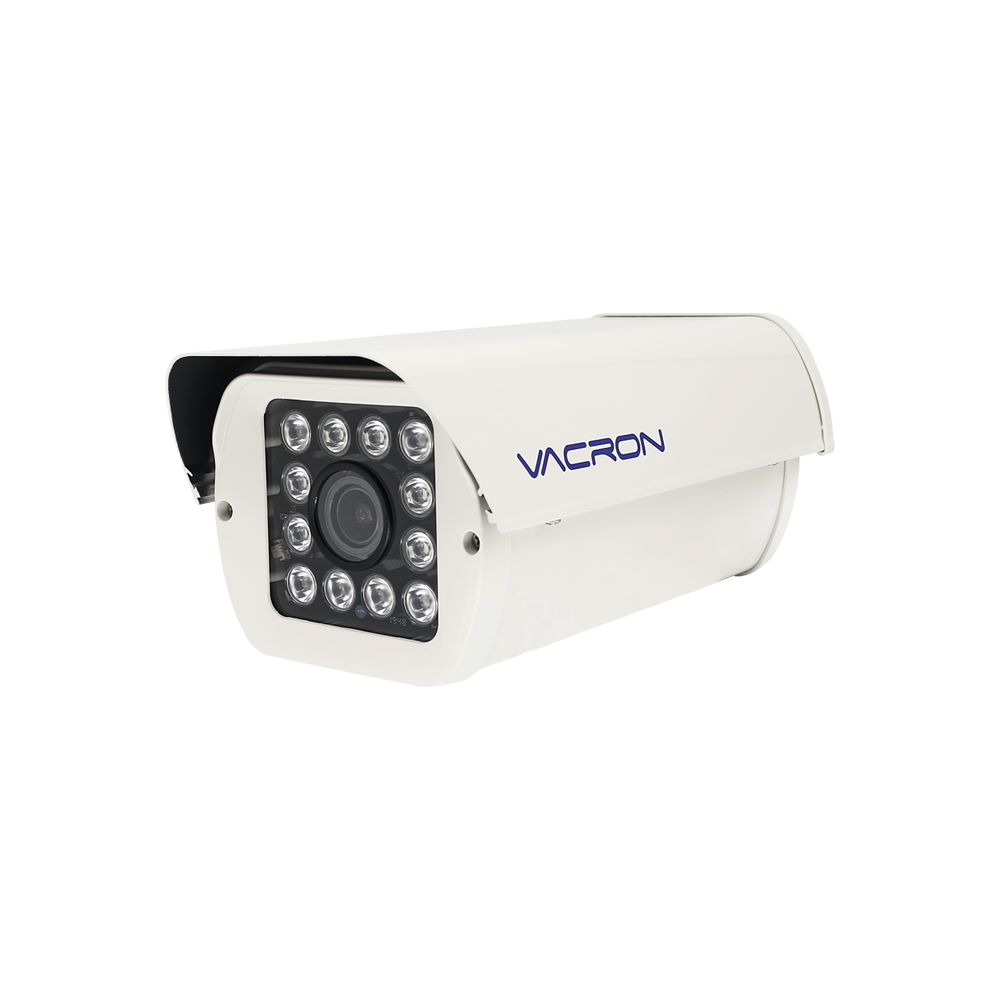

CCTV Camera
1080P / IP66 / Bullet / IR
DC12V
12 LEDs
0.1 LUX
50dB
100M
LENS2.8~12MM
1/3CMOS
-20~50°C
Product Features
Pick Up Element | 1/3" CMOS sensor |
Video System | NTSC/PAL |
Image Signal Process | Digital Signal Processor |
Lens | 2.8-12 mm |
Number Of Pixel | 1920 (Horizontal) x 1080(Vertical) |
Horizontal Resolution | 1080P@30fps |
Power Supply | DC 12 ± 1V |
Power Consumption | 120mA(IR Off);800mA(IR On) |
ICR | Support |
Electronic Shutter | Auto |
White Balance | Auto |
Gain Control | Auto |
S/N Ratio | ≥50dB |
Day Night Auto Switch | Support |
LEDs | 12 PCS |
IR Range | 100M |
IR Wavelength | 850nm |
Minimum Illumination | 0.1Lux |
OUTPUT | AHD or CVBS or TVI or CVI (Default setting: AHD Mode) |
Language | English / Simplified Chinese / Traditional Chinese / Russian / Spanish / French / Polish / Italian / Portuguese / Japanese / Korean / Greek |
IP Rating | IP66 |
Operating Temperature | -20℃~+50℃ |
Dimensions (H×W×D) | 149mm x 115mm x 303mm |
Weight | About 1000g |
Simliar Product
Update Date 2022/06/30 | VCF-5K02H | VCF-5M02H | VCN-4K02H-AF |
Resolution | 5MP | 5MP | 4K |
Pick Up Element | 1/2.5" CMOS | 1/2.5" CMOS | 1/2" CMOS |
LENS | 3.6mm/3.3-12mm | 2.8-12mm | 3.6-11mm(AF) |
LEDS | 12 PCS | ||
IR | ✓ | ||
IR Range | 100m | ||
Sensitivity | 0.2Lux | 0.1Lux | 0.1Lux |
Starlight Color | |||
AF | • | ||
OUTPUT | AHD、CVBS、TVI、CVI | AHD、CVBS、TVI、CVI | AHD、TVI/500W CVI/400W、CVBS |
Waterproof | IP66 |
Update Date 2022/06/30 | VCN-SH5902H-AF | VCF-5502H | VCF-5702H |
Resolution | 1080P | ||
Pick Up Element | 1/2.8" CMOS | 1/3" CMOS | 1/3" CMOS |
LENS | 3.6-11mm(AF) | 3.6mm | 2.8-12 mm |
LEDS | 12 PCS | ||
IR | ✓ | ||
IR Range | 100m | ||
Sensitivity | 0.01Lux | 0.1Lux | 0.1Lux |
Starlight Color | • | ||
AF | • | ||
OUTPUT | AHD、CVBS、TVI、CVI | ||
Waterproof | IP66 |
*If the above specifications are different, please refer to the latest date
Download support
Download Manual
Product Model | Download | Explanation |
VCF-5702H | V.01 |
