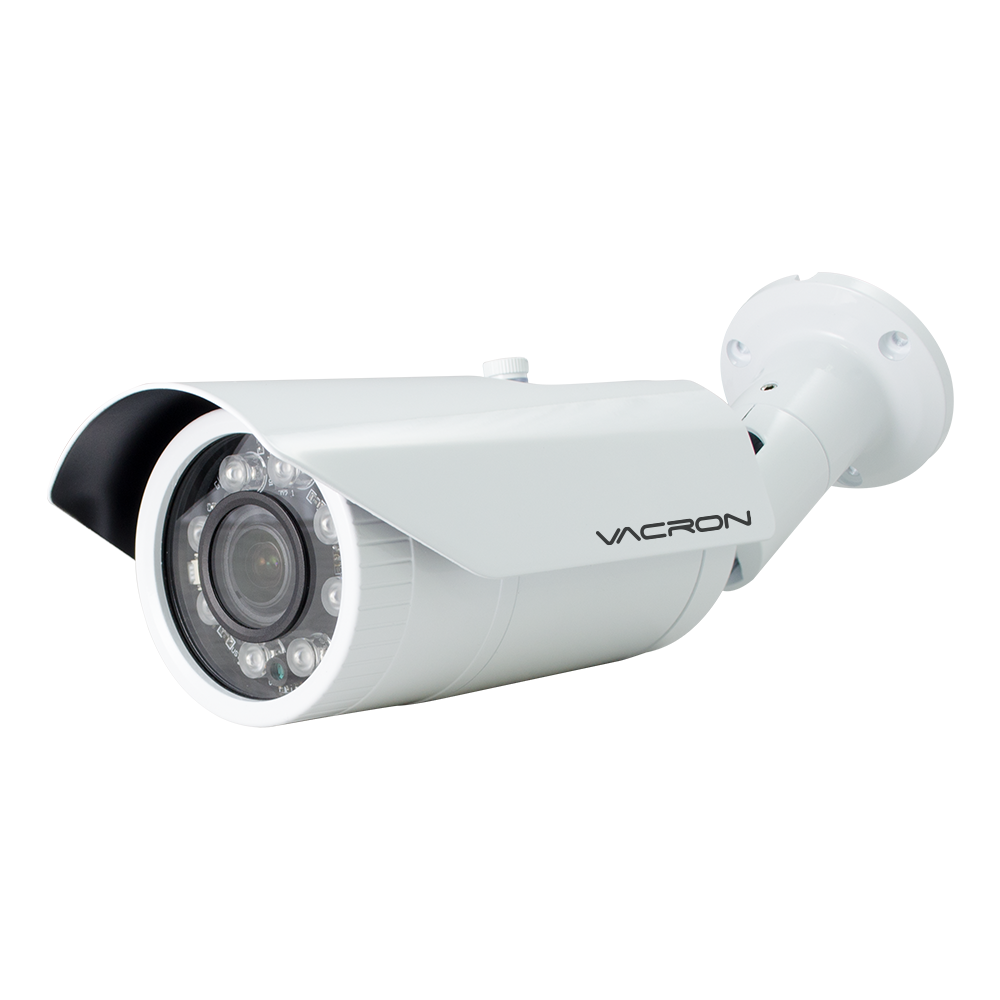

CCTV Camera
1080P/ Bullet / IP66 / IR
DC12V
30M
0.1 LUX
50dB
8 LEDs
LENS2.8~12MM
1/3CMOS
-20~50°C
Product Features
Pick Up Element |
1/3" CMOS sensor |
Video System |
NTSC / PAL |
Image Signal Process |
Digital Signal Processor |
Lens |
2.8-12mm |
Number Of Pixel |
1920(Horizontal) x 1080(Vertical) |
Horizontal Resolution |
1080P@30fps |
Power Supply |
DC 12 ± 1V |
Power Consumption |
120mA (IR Off);400mA (IR On) |
ICR |
Support |
Electronic Shutter |
Auto |
White Balance |
Auto |
Gain Control |
Auto |
S/N Ratio |
≥50dB |
Day Night Auto Switch |
Support |
LEDs |
8 PCS |
IR Range |
30M |
IR Wavelength |
850nm |
Minimum Illumination |
0.1Lux |
OUTPUT |
AHD、TVI、CVI、CVBS |
Language |
AHD or CVBS or TVI or CVI (Default setting: AHD Mode) |
IP Rating |
IP66 |
Operating Temperature |
-20℃~50℃ |
Dimensions (H×W×D) |
315mm x 88mm x 87mm |
Weight |
About 965g |
Simliar Product
Update Date 2022/06/30 | VCN-4K31H-AF | VCF-5M31HV | VCN-SH5931H-AF | VCN-S5931HV | VCF-5731HV |
Resolution | 4K | 5MP | 1080P | ||
Pick Up Element | 1/2" CMOS | 1/2.8" CMOS | 1/2.8" CMOS | ||
LENS | 3.6-11mm(AF) | 2.8-12mm | 2.6-12mm(AF) | 2.8-12mm | 2.8-12mm |
LEDS | 8 PCS | ||||
IR | ✓ | ||||
IR Range | 30m | ||||
Sensitivity | 0.1Lux | 0.1Lux | 0.01Lux | 0.01Lux | 0.1Lux |
AF | ✓ | ✓ | |||
Output | AHD、TVI/500W CVI/400W、CVBS | AHD、CVBS、TVI、CVI | |||
Waterproof | IP66 |
*If the above specifications are different, please refer to the latest date
Download support
Download Manual
Product Model | Download | Explanation |
VCF-5731HV | V.01 |
