CCTV Surveillance System

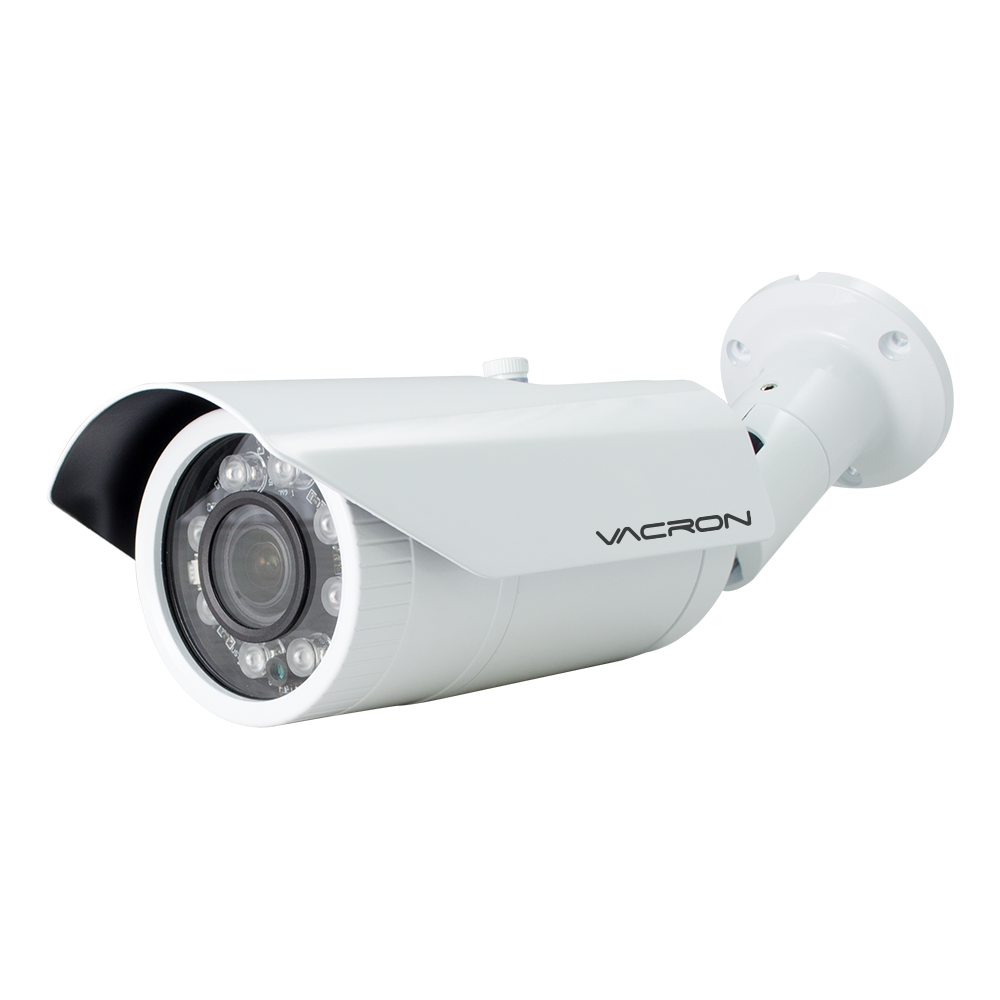

CCTV Camera

VCF-5M31HV

5MP / Bullet / IP66 / IR

  • DC12V

  • 30M

  • 0.1 LUX

  • 50dB

  • 8 LEDs

  • LENS2.8~12MM

  • 1/2.8"CMOS

  • -20~50°C

Download Catalog

Product Features

  • 1/2.8" CMOS sensor
  • AHD 5MP high video quality transmission, up to 2592×1944 pixels.
  • AHD or CVBS or TVI or CVI output switch.
  • IP Rating: IP66.

Pick Up Element

1/2.8" CMOS sensor

Video System

NTSC / PAL

Image Signal Process

Digital Signal Processor

Lens

2.8-12mm

Number Of Pixel

2592 (Horizontal) x 1944(Vertical)

Horizontal Resolution

5M@20fps

Power Supply

DC 12 ± 1V

Power Consumption

120mA (IR Off);400mA (IR On)

ICR

Support

Electronic Shutter

AUTO/1/50(1/60)sec ~ 1/50,000sec

White Balance

Auto

Gain Control

Auto

S/N Ratio

≥50dB

Day Night Auto Switch

Support

LEDs

8 PCS

IR Range

30M

IR Wavelength

850nm

Minimum Illumination

0.1Lux

OUTPUT

AHD、TVI、CVI、CVBS

Language

English / Simplified Chinese / Traditional Chinese / German / French / Italian / Spanish /Polish / Russian / Portuguese / Dutch / Turkish / Japan

IP Rating

IP66

Operating Temperature

-20℃~50℃

Dimensions (H×W×D)

315mm x 88mm x 87mm

Weight

About 965g




Simliar Product



Update Date 2021/12/07 VCN-4K31H-AF VCF-5M31HV VCN-SH5931H-AF VCN-S5931HV
Resolution 4K 5MP 1080P 1080P
Pick Up Element 1/2" CMOS 1/2.8" CMOS 1/2.8" CMOS 1/2.8" CMOS
LENS 3.6-11mm(AF) 2.8-12mm 2.6-12mm(AF) 2.8-12mm
LEDS 8 PCS
IR
IR Wavelength 850nm
IR Range 30m
Sensitivity 0.1Lux 0.1Lux 0.01Lux 0.01Lux
AF
OUTPUT AHD、TVI/500W CVI/400W、CVBS AHD、CVBS、TVI、CVI AHD、CVBS、TVI、CVI AHD、CVBS、TVI、CVI
Waterproof IP66

*If the above specifications are different, please refer to the latest date

Download support

Download Manual


Product Model DownloadExplanation
VCF-5M31HV V.01
