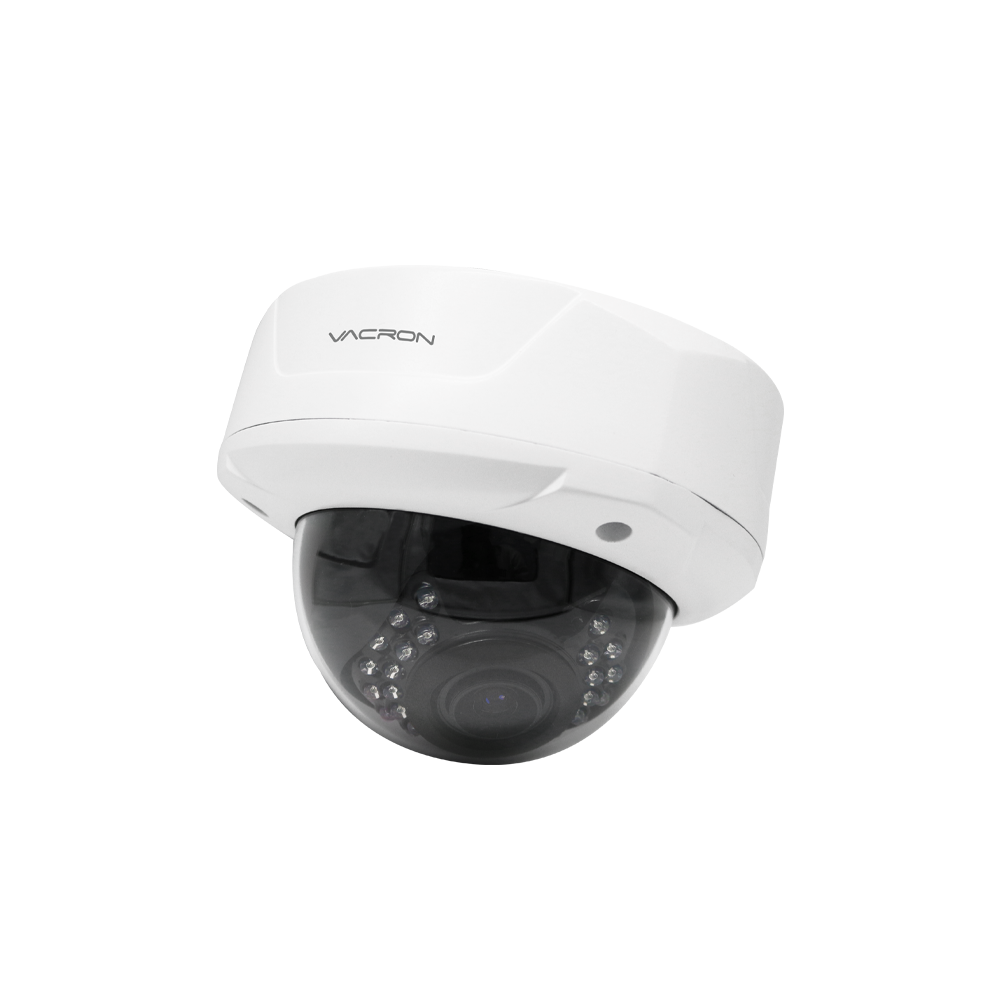

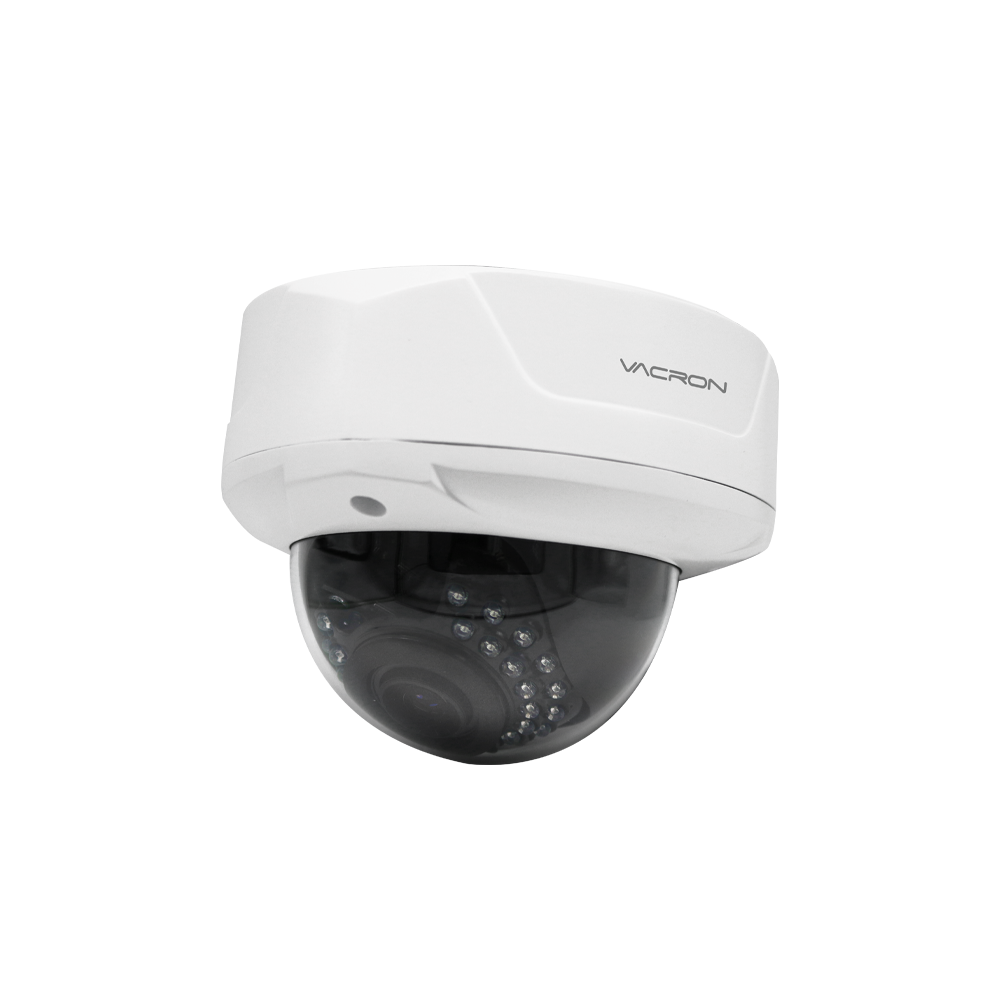

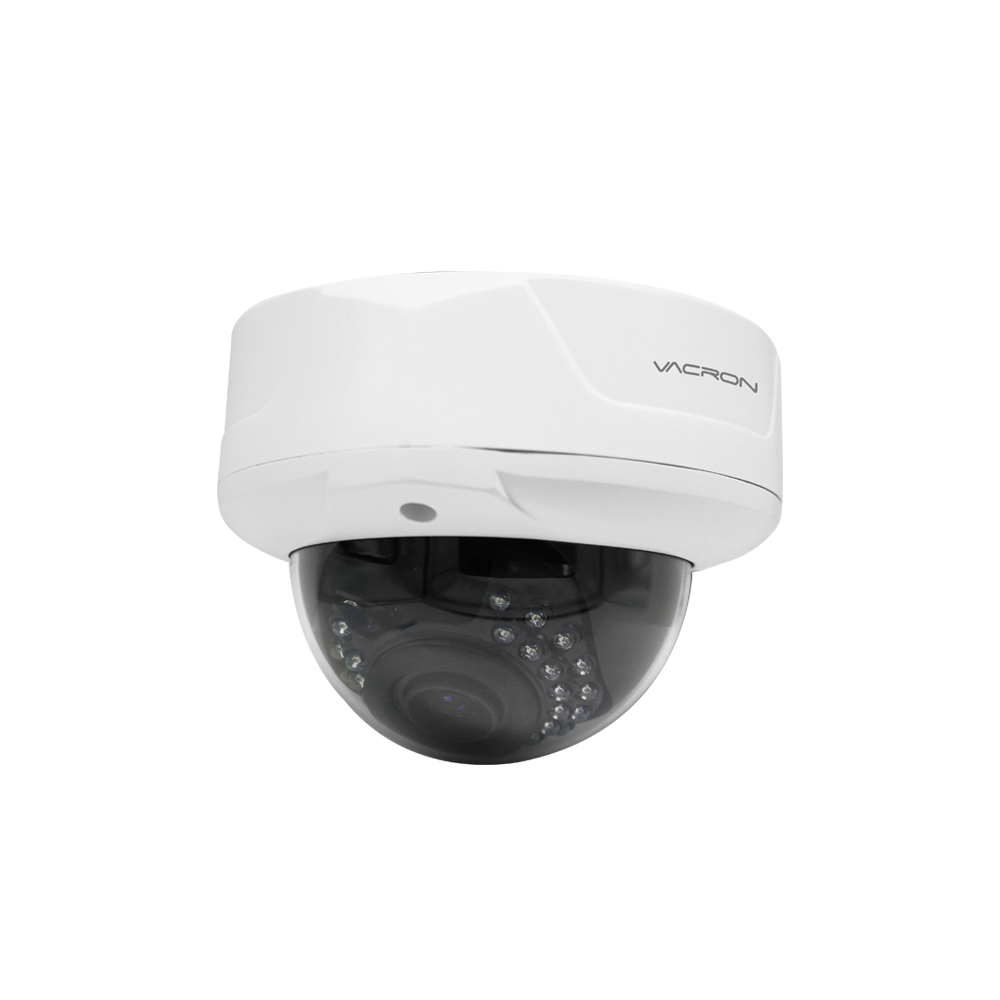

IP Surveillance System

IP Camera

VIG-DS757VE-D6

5MP / Dome / IR / H.265+

  • DC12V

  • 0 LUX

  • P.O.E

  • LENS2.8~12MM

  • 30LEDs

  • 25M

  • 1/2.8"CMOS

  • 0~45°C

Download Catalog

Product Features

  • SONY 5M Pixels 1/2.8" CMOS Sensor with excellent image quality
  • Real time H.265+/H.264 /MJPEG Multi-Mode compression (Dual Codec)
  • Resolution 2560*1920 @ 15fps/s
  • 30pcs IR LED, IR Distance 25M
  • Support ONVIF international standard, best compatibility and integration
Video System Flash:16MB
RAM:256MB
Sensor Full HD High Quality 1/2.8” SONY CMOS Image Sensor
Lens Varifocal 2.8~12mm F1.8
IR cut Removable IR Cut filter
Low Lux 0 Lux(IR ON)
IR LED 30pcs IR LED
Compression H.265+: 2560x1920 at 15fps
H.265+: 2048x1536 at 20 fps
H.265+: 1920x1080 at 30fps
H.265+、H.264、JPEG Multi-mode compression (Dual Codec)
Multi-mode compression streaming
Video Adjustment 1.Adjustable image size, quality, and bit rate
2.Time/Date stamp and text caption overlay
3.Brightness, Contrast, Saturation and Sharpness
4.Have: AGC、AWB、AES、BLC、WDR Features
Networking Interface 10 /100 Mbps RJ-45
Protocol IPv4, TCP/IP, DHCP, HTTP, RTSP, SNTP, DNS
Browser Microsoft Internet Explorer 6.0 or above
Safari, Chrome or Firefox
Alarm and Event Management Motion Detection
E-mail notification or upload file to FTP
Users Max. 8 users for live view simultaneously
User Authorization
OTA OTA for Firmware upgrade
I/O RJ-45 , DC12V
Power DC12V or PoE IEEE802.3af Class 0
Power Consumption 3.6W(IR OFF)、18W(IR ON)
Weight N.W.:1050g
Dimensions W:Φ143mm H:108mm
Operating Temperature 0 ~ 45 °C



Simliar Product



Update Date 2022/08/05 VIG-DS757VE-D6 VIG-DS757V-D6 VIG-DS755V-D6 VIG-DS755AV VIG-DJ755V-Z5
Resolution 5MP 1080P
Pick Up Element 1/2.8" CMOS 1/2.9" CMOS 1/3" CMOS
LENS Varifocal 2.8~12mm
LEDS 30pcs IR LED 24pcs IR LED
IR
IR Range 25M 15M
Sensitivity 0Lux

*If the above specifications are different, please refer to the latest date
