IP Surveillance System

IP Camera

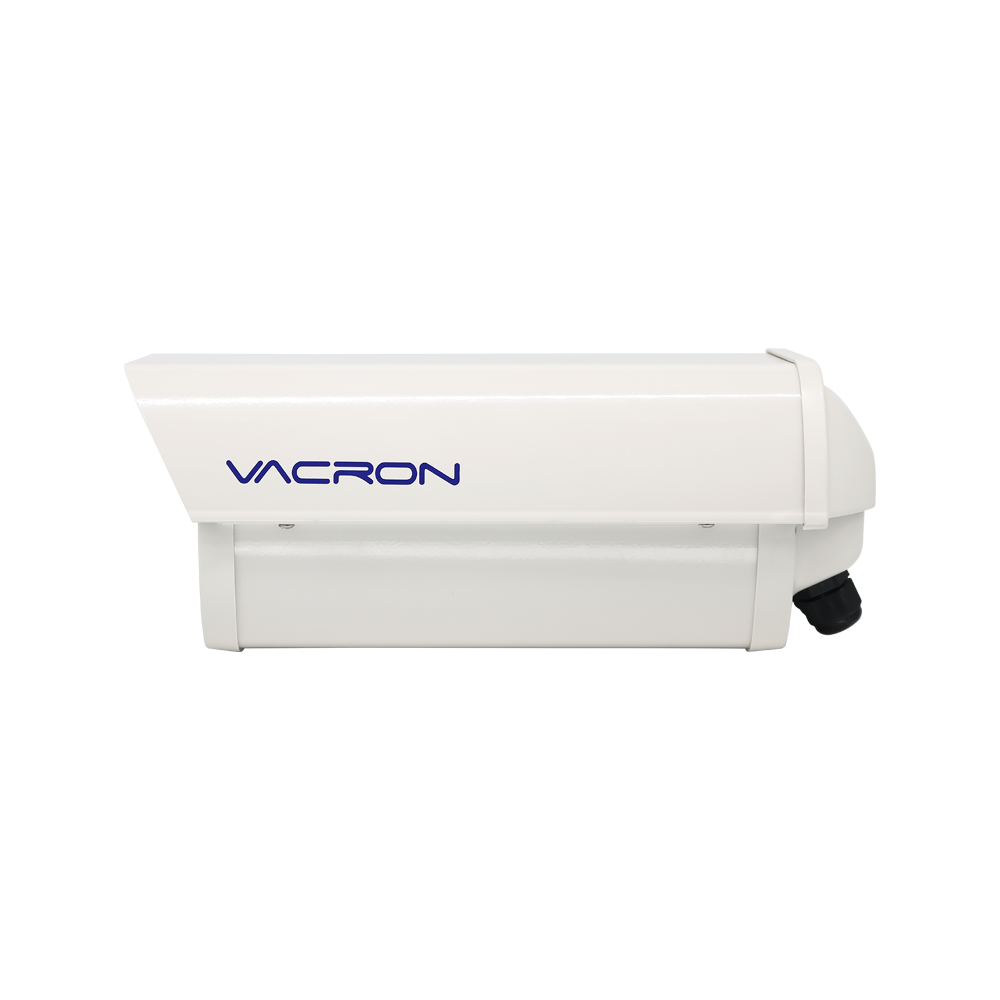

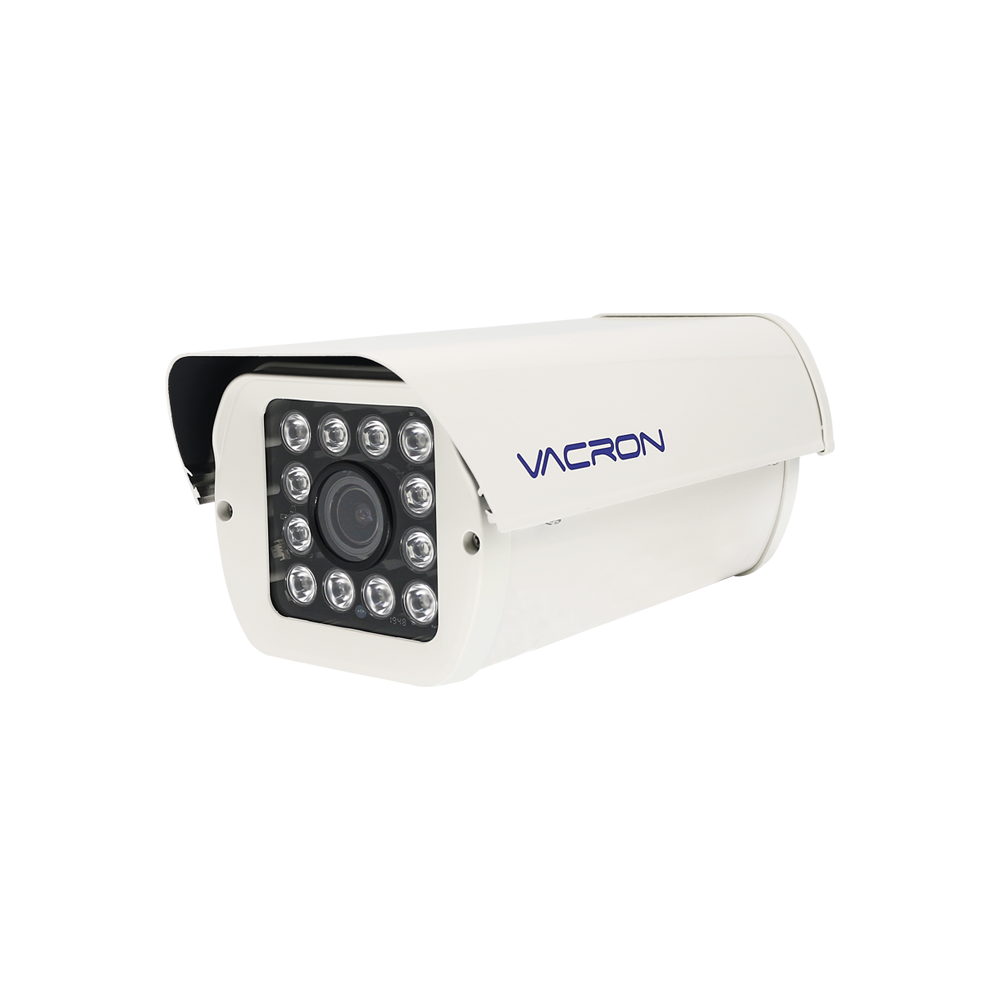

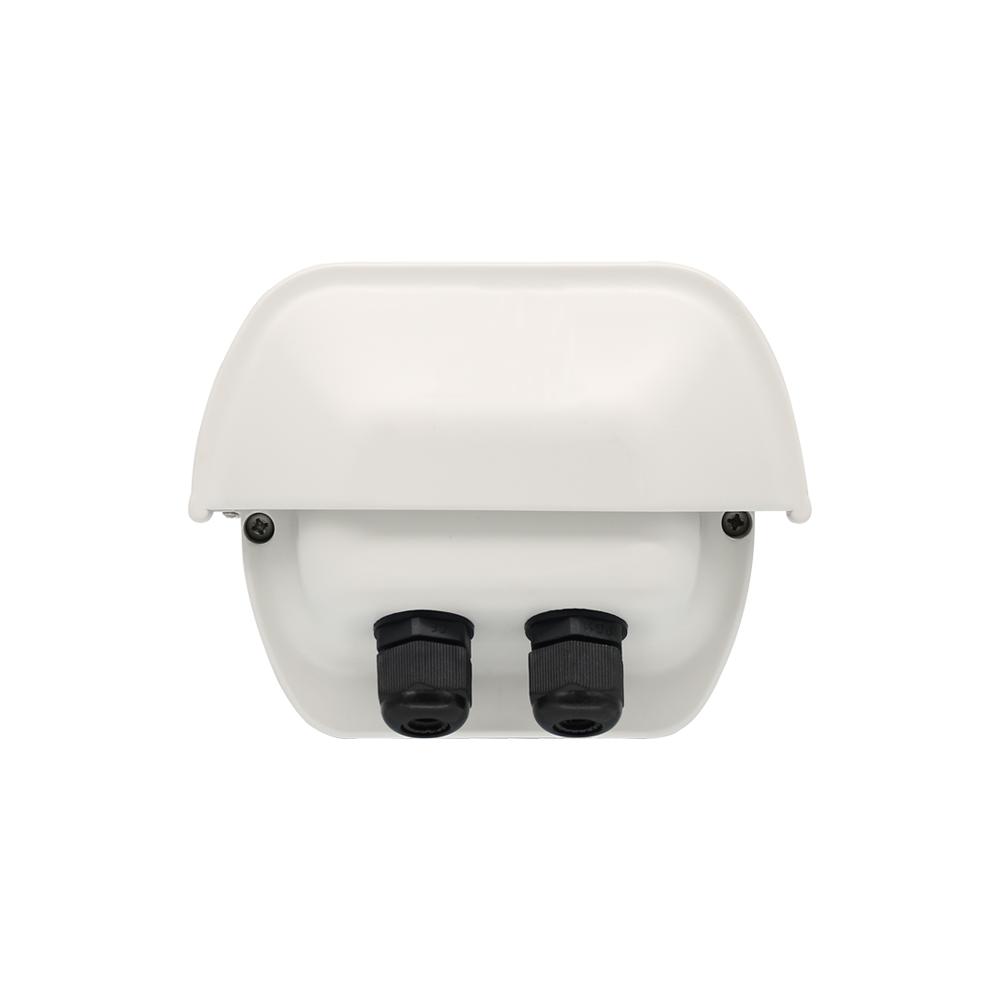

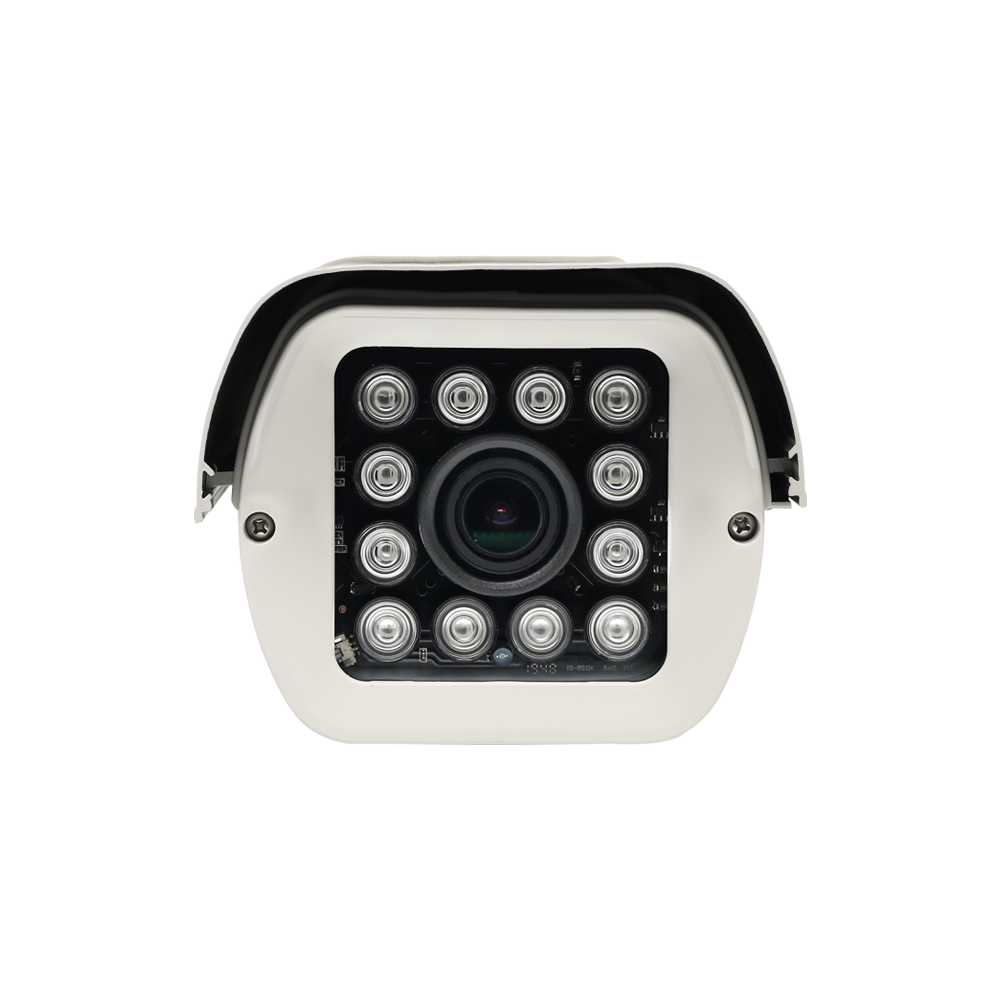

VIN-US730T-E4

1080P / Bullet / IP66 / IR / H.265

  • DC12V

  • 12 LEDs

  • 100M

  • 1/2.8"CMOS

  • 0.001LUX

  • 0~45°C

  • IR 100M

  • AutoLENS 2.8-12mm

Download Catalog

Product Features

  • Sony 2MP 1/2.8” COMS Image Sensor
  • Built in electronic auto AF Lens motor, user friendly for remote config
  • Real-time H.265/H.264  Compression(dual codec)
  • Highest Resolution 1920*1080 @30 fps
  • HI-P 12 LED, IR Distance 100M
  • Ultra-low illumination strengthens night monitoring
  • Support ONVIF international standard, best compatibility and integration
Video System Flash：256MB
RAM：512MB
Sensor SONY FullHD High Quality 1/2.8” CMOS Image Sensor
Lens Auto Varifocal 2.8-12mm
IR cut Removable IR-cut filter for day & night function
Low Lux 0.001 Lux
IR LED HI-P 12 IR LED
Compression H.265/H.264: 1920x1080 at 60 fps
H.265/H.264: 1280x720 at 60 fps
H.265/H.264: 640x480 at 60 fps
H.265、H.264 Multi-mode compression (Dual Codec)
Support Simultaneous multiple streams
Image Settings 1.Adjustable image size, quality, and bit rate
2.Time/Date stamp and text caption overlay
3.Configurable brightness, contrast, saturation, sharpness
   white balance and exposure
4.Have: AGC、AWB、AES、BLC、WDR Features
Electronic Shutter
 1/2 ~ 1/100,000 Sec
Networking Interface 10 /100 Mbps RJ-45
Protocol IPv4, TCP/IP, DHCP, HTTP, RTSP, SNTP, DNS
Browser Microsoft Internet Explorer 6.0 or above
Safari, Chrome or Firefox
Alarm and Event Management Motion Detection
Event notification using SMTP or FTP
Users Clients on-line monitoring at the same time
Multi-level user access control with password protection
Maintenance Supports online firmware upgrade
I/O RJ-45 Ethernet x 1,DC12V
Power DC12V
Max. Power Consumption 3.6W(IR OFF) 、10W(IR ON)
Weight N.W.：650g
Dimensions 255mm x 75.3mm x 75mm
Operating Temperature 0 ~ 45 °C
IP Rating IP66






Simliar Product


Update Date 2022/01/26 VIG-US730V-D6 VIG-US730T-D6 VIH-US830VC
Resolution 5MP
Pick Up Element 1/2.8" Sony Exmor CMOS 1/2.8” CMOS
LENS Varifocal 2.8~12mm Varifocal 2.8-12mm F1.4 Varifocal 5-50mm
LEDS HI-P 12 LED
IR ✓
IR Range 100M
AF ✓
Sensitivity 0Lux
Waterproof IP66

Update Date 2022/01/26 VIN-US730-E6 VIG-US730AV VIG-UJ730V-Z5 VIG-US730T-D2 VIH-UM230
Resolution 5MP 1080P 720P
Pick Up Element 1/2.8" CMOS 1/2.9" CMOS 1/3" CMOS 1/2.8" CMOS 1/4" CMOS
LENS 3.6mm Lens Varifocal 2.8~12mm Auto Varifocal 2.8-12mm Varifocal 2.8~12mm
LEDS HI-P 12 LED 12 pcs
IR ✓
IR Range 100M 30M
AF ✓
Sensitivity 0Lux
Waterproof IP66

*If the above specifications are different, please refer to the latest date
