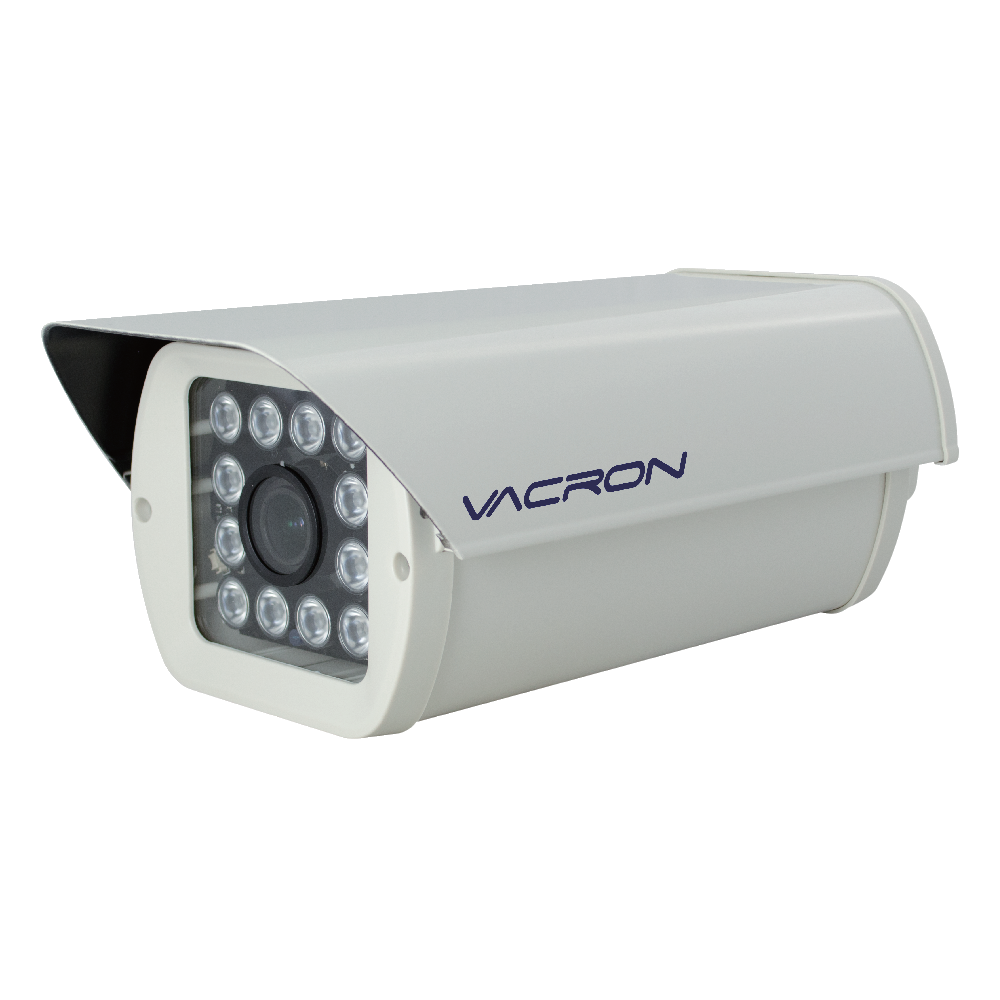

IP Camera
1MP / Bullet / IR / H.264
DC12V
1/4"CMOS
12 LEDs
30M
Low LUX
LENS 3.5~10mm
Product Features
| SYSTEM | FLASH：128 MB | |
| IMAGE SENSOR | 1/4” CMOS | |
| LENS | VARIFOCAL 2.8-12MM F1.4 | |
| REMOVABLE IR-CUT FILTER FOR DAY & NIGHT FUNCTION | ||
| SENSITIVITY | 0 LUX(IR ON) | |
| IR LED | 12 PCS | |
| VIDEO | H.264: 30 FPS @720P | |
| SUPPORT SIMULTANEOUS MULTIPLE STREAMS | ||
| SUPPORT AVI | ||
| IMAGE SETTINGS | ADJUSTABLE IMAGE SIZE, QUALITY, AND BIT RATE | |
| TIME/DATE STAMP AND TEXT CAPTION OVERLAY. | ||
| CONFIGURABLE BRIGHTNESS, CONTRAST, SATURATION, SHARPNESS, WHITE BALANCE AND EXPOSURE | ||
| AGC、AWB、AES、BLC、WDR | ||
| NETWORKING | INTERFACE | 10/100 MBPS ETHERNET, RJ-45 |
| SUPPORTED PROTOCOL | IPV4,TCP/IP, DHCP, HTTP, FTP, SMTP, RTSP,SNTP,DNS | |
| SUPPORTED BROWSER | MICROSOFT INTERNET EXPLORER 6.0 OR ABOVE | |
| SAFARI, CHROME OR FIREFOX(VLC PLAYER IS NEEDED) | ||
| MAINTENANCE | SUPPORTS ONLINE FIRMWARE UPGRADE | |
| I/O | RJ-45 ETHERNET, POWER CONNECTION | |
| POWER | DC 12V / 3.6W(IR OFF),7W(IR ON) | |
| WEIGHT | NETWEIGHT: 1235G | |
| DIMENSION | 315.5 × 147 × 116 MM | |
| OPERATING ENVIRONMENTS |
TEMPERATURE: 0 ~ 40 °C | |
| HUMIDITY: 90% | ||
Simliar Product
| Update Date 2022/01/26 | VIG-US730V-D6 | VIG-US730T-D6 | VIH-US830VC |
| Resolution | 5MP | ||
| Pick Up Element | 1/2.8" Sony Exmor CMOS | 1/2.8” CMOS | |
| LENS | Varifocal 2.8~12mm | Varifocal 2.8-12mm F1.4 Varifocal 5-50mm | |
| LEDS | HI-P 12 LED | ||
| IR | ✓ | ||
| IR Range | 100M | ||
| AF | ✓ | ||
| Sensitivity | 0Lux | ||
| Waterproof | IP66 | ||
| Update Date 2022/01/26 | VIG-US730AV | VIG-UJ730V-Z5 | VIG-US730T-D2 | VIH-UM230 |
| Resolution | 1080P | 720P | ||
| Pick Up Element | 1/2.9" CMOS | 1/3" CMOS | 1/2.8" CMOS | 1/4" CMOS |
| LENS | Varifocal 2.8~12mm | Auto Varifocal 2.8-12mm | Varifocal 2.8~12mm | |
| LEDS | HI-P 12 LED | 12 pcs | ||
| IR | ✓ | |||
| IR Range | 100M | 30M | ||
| AF | ✓ | |||
| Sensitivity | 0Lux | |||
| Waterproof | IP66 | |||
*If the above specifications are different, please refer to the latest date
