CCTV Surveillance System

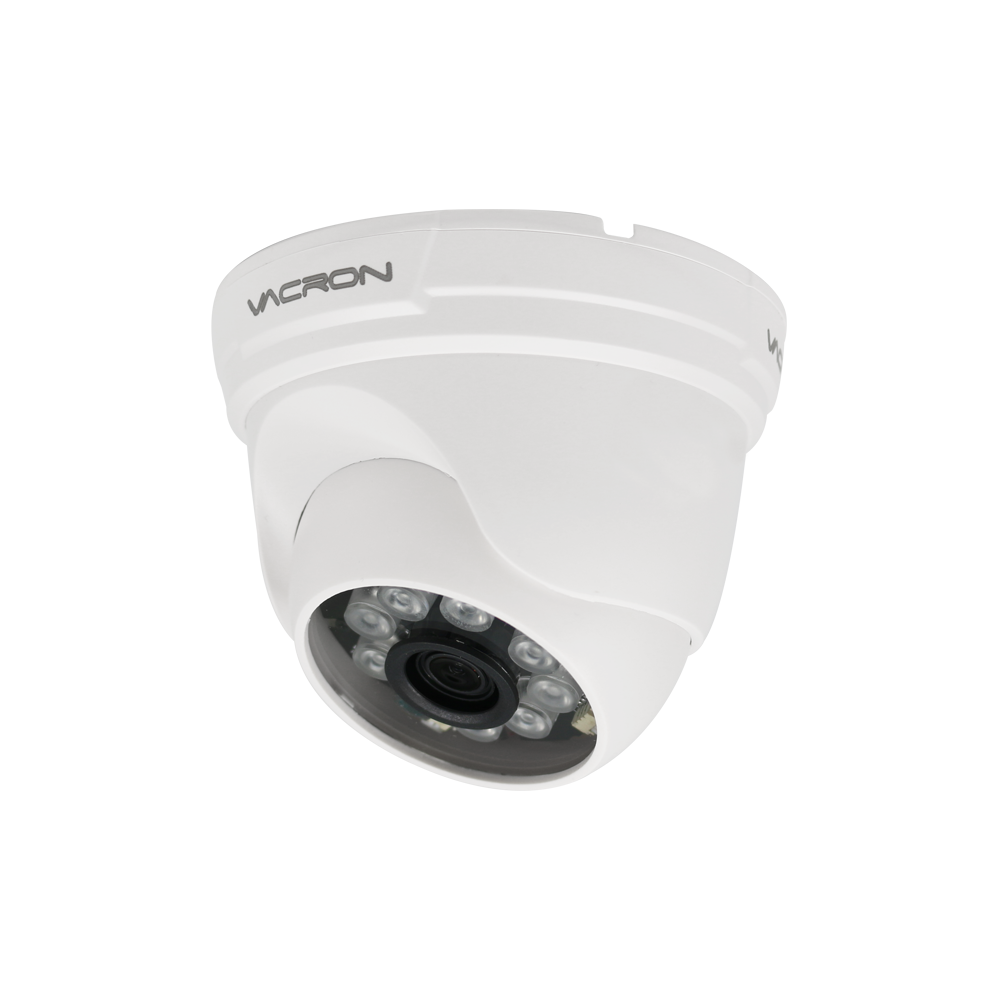

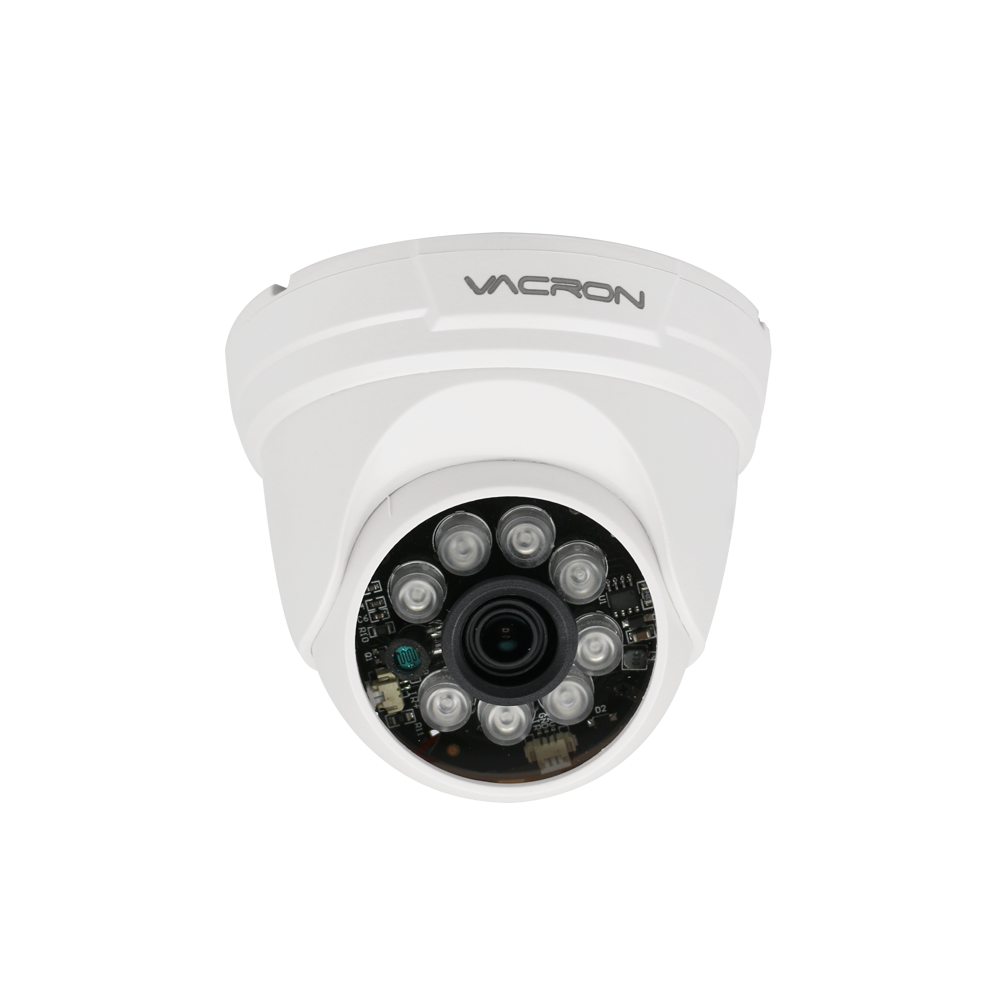

CCTV Camera

VCT-5716HD

1080P / dome /IR

  • DC12V

  • LENS 2.8mm

  • LENS 3.6mm

  • 30m

  • 0 LUX

  • 8 LEDs

  • 58dB

  • 1/3CMOS

  • -20~50°C

Download Catalog

Product Features

  • 1/3" CMOS sensor
  • 1080P, quality up to 1920x1080
  • 2.8mm/3.6 mm lens.
  • AHD or CVBS or TVI or CVI output switch
Pick Up Element 1/3" CMOS sensor
Video System NTSC/PAL
Image Signal Process Digital Signal Processor
Lens 2.8mm / 3.6mm
Number Of Pixel 1920 (Horizontal) x 1080(Vertical)
Horizontal Resolution 1080P@30fps
Power Supply DC 12 ± 1V
Power Consumption 120mA (IR Off)；330mA (IR On)
ICR Support
Format 25FPS / 30FPS / PAL / NT
S/N Ratio ≧58dB
White Balance Auto
Gain Control Auto
Gamma correction Auto
Day Night Auto Switch Support
LEDs High Power IR LEDs x8
IR Range 30 m
IR Wavelength 850nm
Minimum Illumination 0 Lux(IR ON)
OUTPUT AHD or CVBS or TVI or CVI (Default setting: TVI Mode)
Language English / Traditional Chinese
Operating Temperature -20℃~+50℃
Dimensions (H×W×D) Φ99 × 72 mm
 Weight About 185g



Simliar Product


Update Date 2021/12/07 VCF-5M16HDB VCN-S5916HDB VCF-5716HD
Resolution 5MP 1080P 1080P
Pick Up Element 1/2.8" CMOS 1/2.8" CMOS 1/3" CMOS
LENS 3.6mm
LEDS 8 PCS
IR ✓
IR Wavelength 850nm
IR Range 30m
Sensitivity 0.1Lux 0.01Lux 0.1Lux
OUTPUT AHD、CVBS、TVI、CVI

*If the above specifications are different, please refer to the latest date
