Mobile Surveillance

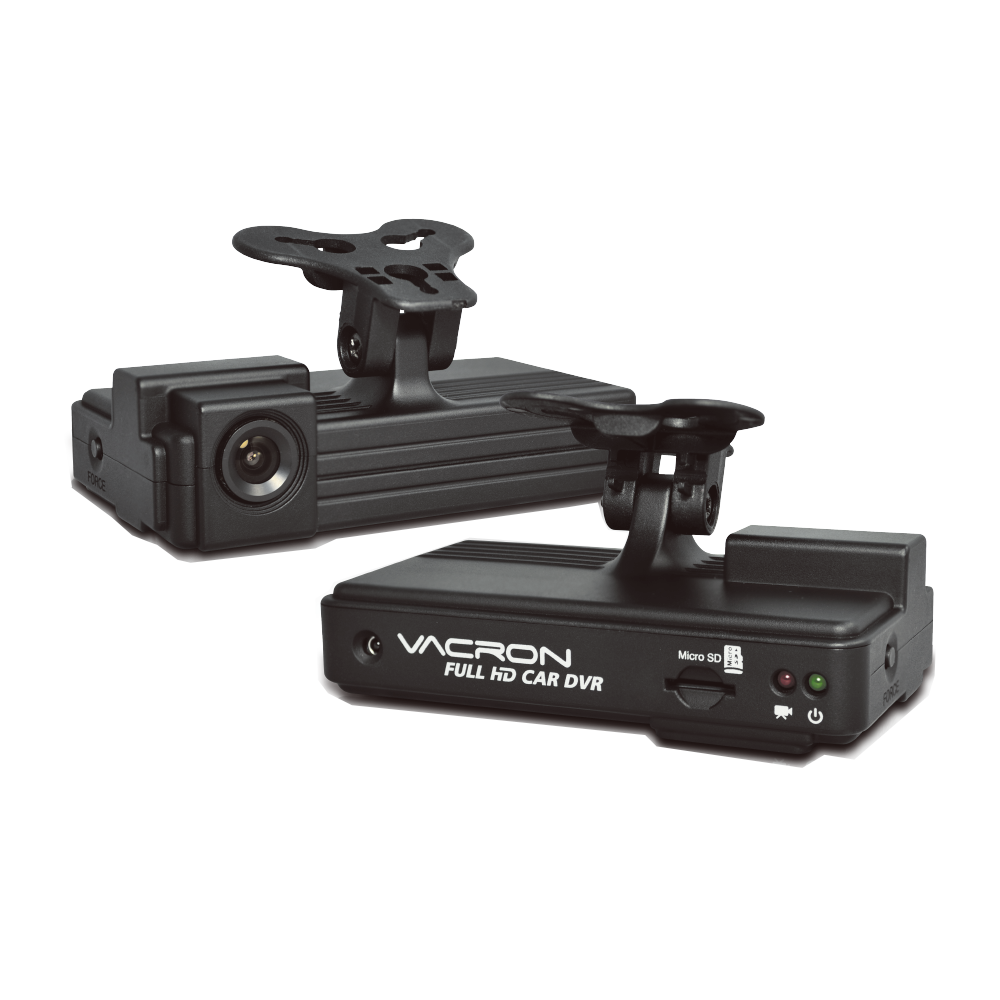

Dash Cam

VVG-CBE27A

1CH / 1080P / SD card / GPS

  • 130º

  • 1/2.9"CMOS

  • Remote

  • MIC Built-in

  • G-Sensor

  • 延遲錄影

  • TVout

  • GPS

  • SD

Download Catalog

Product Features

  • Built-in megapixel Sony CMOS Sensor.
  • Built-in supercapacitor offers extensional power supply and ensures video is well stored of critical moment and compact.
  • 130° Wide angle 6G+IR glare-depressed lens.
  • Built-in synchronous single-channel microphone.
  • Recorded Video store in Micro SD card, Max 64GB).
  • Auto loop recording when memory card is inserted and device is power on.
  • Emergency recording button protect data in secured area from being overwritten.
  • Build-in G-Sensor event recording.
  • GPS and Image data are recorded and playable on client software. (Only available with GPS receiver)
  • Support FULL HD record and TV-out to car entertainment cable.
  • Made in Taiwan

Item

Description

Sensor

Sony 1/2.9” CMOS Sensor.

Resolution

NTSC 1920x1080 (2M) 30 fps.

PAL 1920x1080 (2M) 25 fps.

View Angle

130° Wide-angle.

Power Supply

DC5V±5% / 1 Amp.

Built-in 1.5F supercapacitor to backup power.

Operating Tmp.

-10ºC ~ +60ºC

Storage

Support 8gb class 10 micro sd card or above, up to 64GB.

Recording

Prompt recording when power on Delay 3 seconds after power shutdown.

Recording Data

Date/Time/Video/Audio/G-Sensor/GPS data.

Storage Format

*.ts file is playable on most  players, exclusive player  available on vacron website.

Use remote control to playback.

Audio Input

Built-in microphone.

Time Setting

Built-in calendar clock to adjust the time.

Time adjustment with synchronous GPS and time zone. (GPS model)

G-Sensor

Built-in 3D G-sensor.

Accessories

3.5M mini-USB power cable / 5V cigarette power adapter / Remote controller / USB card reader / Suction cup bracket / Bracket holder / Quick user manual / 4 pings, 3.5 inch headphone jack  to RCA output cable

Download support

Software Support

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
Product Model DownloadExplanation
VVG-CBE27A (NO GPS) V2.1109 2021.01.04Update time abnormal correction
VVG-CBE27A (GPS) V2.11122021.01.04Update time abnormal correction

Player

　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
Product Model DownloadExplanation
VVG-CBE27A (NO GPS) PLAYER V2.1.6.132
VVG-CBE27A (GPS) PLAYER V2.1.6.132

Download Manual

　 　 　 　 　 　 　 　 　 　
Product Model DownloadExplanation
VVG-CBE27A V2.0
