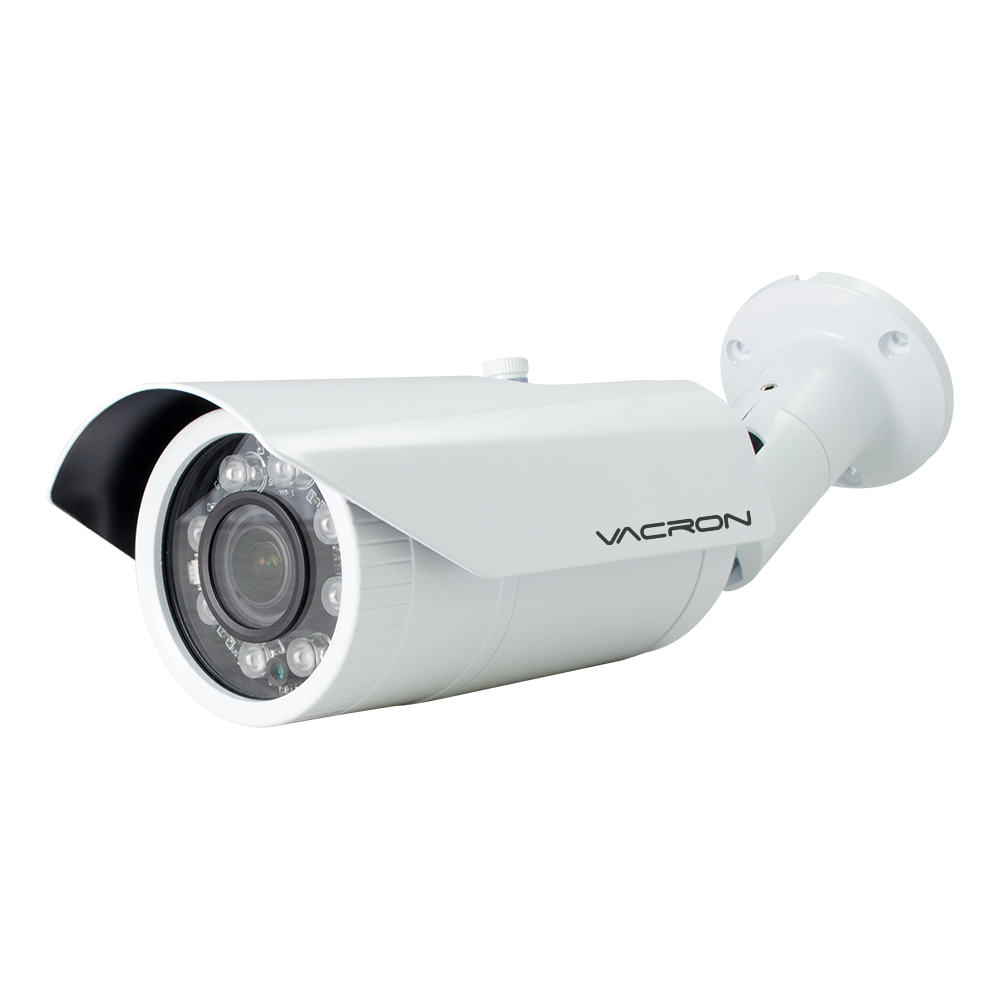

IP Camera
5MP / Bullet / IP66 / IR / H.265+
DC12V
30M
0 LUX
P.O.E
8 LEDs
LENS2.8~12MM
1/2.8"CMOS
0~45°C
Product Features
Ssystem | Flash:16MB |
RAM:256MB | |
Image Sensor | Full HD High Quality 1/2.8” SONY CMOS Image Sensor |
Lens | Vari-focal 2.8~12mm F1.8 |
IR-cut | Removable IR Cut filter |
Low Lux | 0 Lux(IR ON) |
IR LED | HI-P 8 LED |
Compression | H.265+: 2560x1920 at 15fps |
H.265+: 2048x1536 at 20 fps | |
H.265+: 1920x1080 at 30fps | |
H.265+、H.264、JPEG Multi-mode compression (Dual Codec) | |
Multi-mode compression streaming | |
Image Settings | Resolution、Quality and bit rate |
Time、Date or custom text and it’s position | |
Brightness, Contrast, Saturation and Sharpness | |
AGC、AWB、AES、BLC、WDR | |
Electronic Shutter | 1/2 ~ 1/100,000 Sec |
Network Interface | 10 /100 Mbps RJ-45 |
Protocol | IPv4,TCP/IP, DHCP, HTTP, RTSP,SNTP,DNS |
Browser | Microsoft Internet Explorer 6.0 or above |
Safari, Chrome or Firefox | |
Alarm & Event notification | Motion Detection |
E-mail notification or upload file to FTP | |
User | Max. 8 users for live view simultaneously |
User Authorization | |
OTA | OTA for Firmware upgrade |
I/O Port | RJ-45, DC12V |
Power | DC12V or PoE IEEE802.3af Class 0 (optional) |
Power Consumption | 3.6W(IR OFF) 、18W(IR ON) |
Weight | N.W.:965g |
Dimension | 315x88x87 mm |
Operating Environments | 0 ~ 45 °C |
IP Rating | IP67 |
Update Date 2022/01/26 | VIG-US731V-D6 | VIG-US731AV | VIG-US731T-D2 | VIG-UJ731V-Z5 |
Resolution | 5MP | 1080P | ||
Pick Up Element | 1/2.8" Sony Exmor CMOS | 1/2.9" CMOS | 1/2.8” SONY CMOS | 1/3" CMOS |
Lens | Varifocal 2.8~12mm | Auto Varifocal 2.8-12mm f1.4 | Varifocal 2.8~12mm | |
LEDS | 8 HI-P LEDS | |||
IR | ✓ | |||
IR Range | 30M | |||
AF | ✓ | |||
Sensitivity | 0 LUX | |||
Waterproof | IP66 |
Update Date 2022/01/26 | VIH-US831VM | VIH-US831VF | VIH-UH831 |
Resolution | 1080P | 1.3MP | |
Pick Up Element | 1/2.8" CMOS | 1/2.8" CMOS | 1/4" CMOS |
Lens | Varifocal 2.8~12mm | ||
LEDS | 8 HI-P LEDS | ||
IR | ✓ | ||
IR Range | 30M | ||
Sensitivity | 0 LUX | ||
Waterproof | IP66 |
*If the above specifications are different, please refer to the latest date
