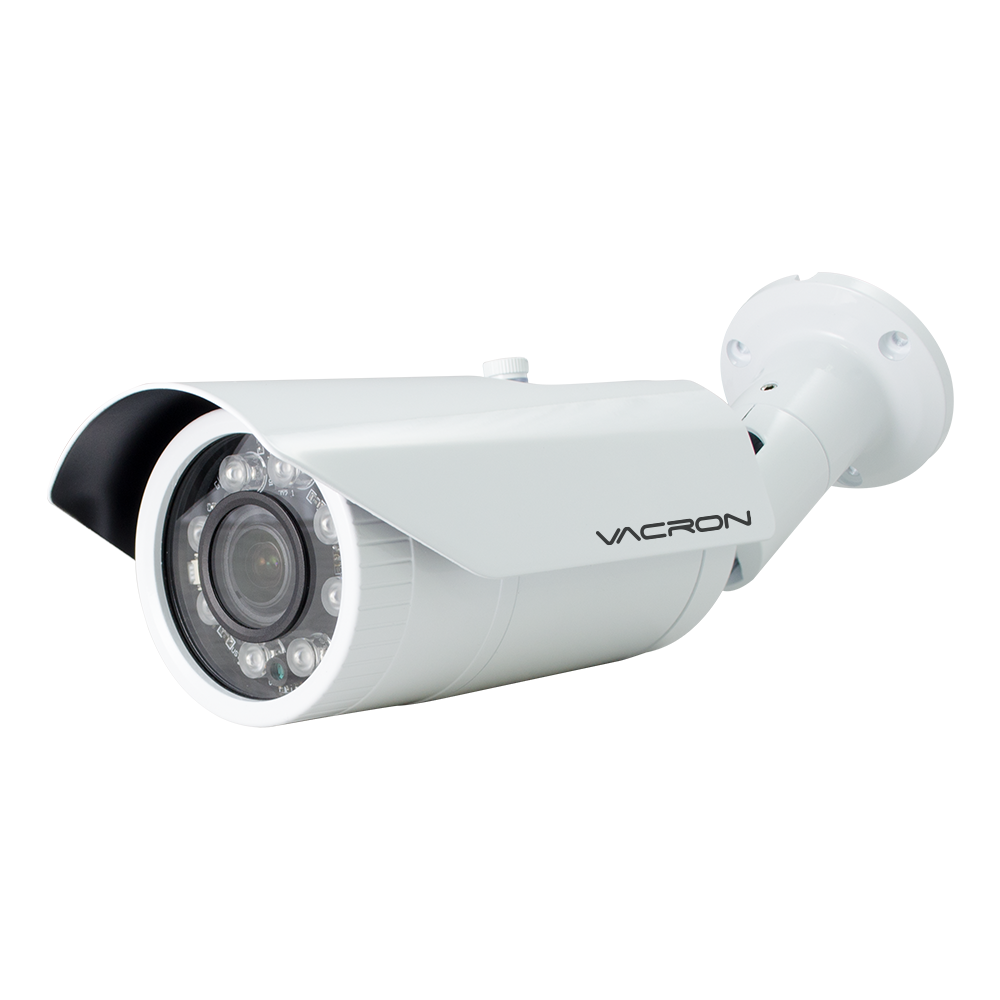

IP Camera
1.3MP / Bullet / IP66 / IR / H.264
1/4"CMOS
Motion
LAN
8 LEDs
LENS2.8~12MM
Product Features
System |
Flash:16MB |
|
Image Sensor |
1.3 Mega pixel 1280*1024(SXGA) 1/4” CMOS Sensor |
|
Sensitivity |
0 Lux(IR ON) |
|
IR LED |
HI-POWER (35MIL)LED 8PCS, 30M IR ranges. |
|
Lens |
Varifocal 2.8-12mm F1.4 |
|
Video |
H.264: 1280x1024 @30 fps |
|
H.264: 1280x720 @30 fps |
||
H.264: 640x480 @30 fps |
||
H.264: 320x240 at 30 fps |
||
Support Simultaneous multiple streams |
||
BNC connector for video output ; NTSC/PAL video output switch |
||
Image Settings |
Adjustable image size, quality, and bit rate |
|
Time/Date stamp and text caption overlay. |
||
Configurable brightness, contrast, saturation, sharpness, white balance and exposure |
||
Format |
G.711 audio encoding |
|
Support Audio line-in for external microphone |
||
Networking |
Interface |
10/100 Mbps Ethernet, RJ-45 |
Supported Protocol |
IPv4,TCP/IP,DHCP,HTTP,RTSP,SNTP,DNS |
|
Supported Browser |
Microsoft Internet Explorer 6.0 or above |
|
Alarm and Event Managemnent |
Motion Detection |
|
Event notification using SMTP or FTP |
||
Maintenance |
Supports online firmware upgrade |
|
I/O |
RJ-45 Ethernet x 1,DC Jack x 1,BNC Video out,Phone Jack Line in x 1,Alarm I/O,Reset Botton |
|
IP Rating |
IP66 |
|
Power |
DC12V or PoE IEEE802.3af Class 0 |
|
Max. Power Consumption |
3.6W(IR OFF),7W(IR ON) |
|
Weight |
Netweight:965g |
|
Dimension |
315 × 88 × 87 mm |
|
Operating Environments |
Temperature: 0 ~ 45 °C |
Update Date 2022/01/26 | VIG-US731V-D6 | VIG-US731AV | VIG-US731T-D2 | VIG-UJ731V-Z5 |
Resolution | 5MP | 1080P | ||
Pick Up Element | 1/2.8" Sony Exmor CMOS | 1/2.9" CMOS | 1/2.8” SONY CMOS | 1/3" CMOS |
Lens | Varifocal 2.8~12mm | Auto Varifocal 2.8-12mm f1.4 | Varifocal 2.8~12mm | |
LEDS | 8 HI-P LEDS | |||
IR | ✓ | |||
IR Range | 30M | |||
AF | ✓ | |||
Sensitivity | 0 LUX | |||
Waterproof | IP66 |
Update Date 2022/01/26 | VIH-US831VM | VIH-US831VF | VIH-UH831 |
Resolution | 1080P | 1.3MP | |
Pick Up Element | 1/2.8" CMOS | 1/2.8" CMOS | 1/4" CMOS |
Lens | Varifocal 2.8~12mm | ||
LEDS | 8 HI-P LEDS | ||
IR | ✓ | ||
IR Range | 30M | ||
Sensitivity | 0 LUX | ||
Waterproof | IP66 |
*If the above specifications are different, please refer to the latest date
Download support
Software Support
Product Model | Download | Explanation |
VIH-HI3507-DH&UH-8XX | V3.2.19 | ![]() |
