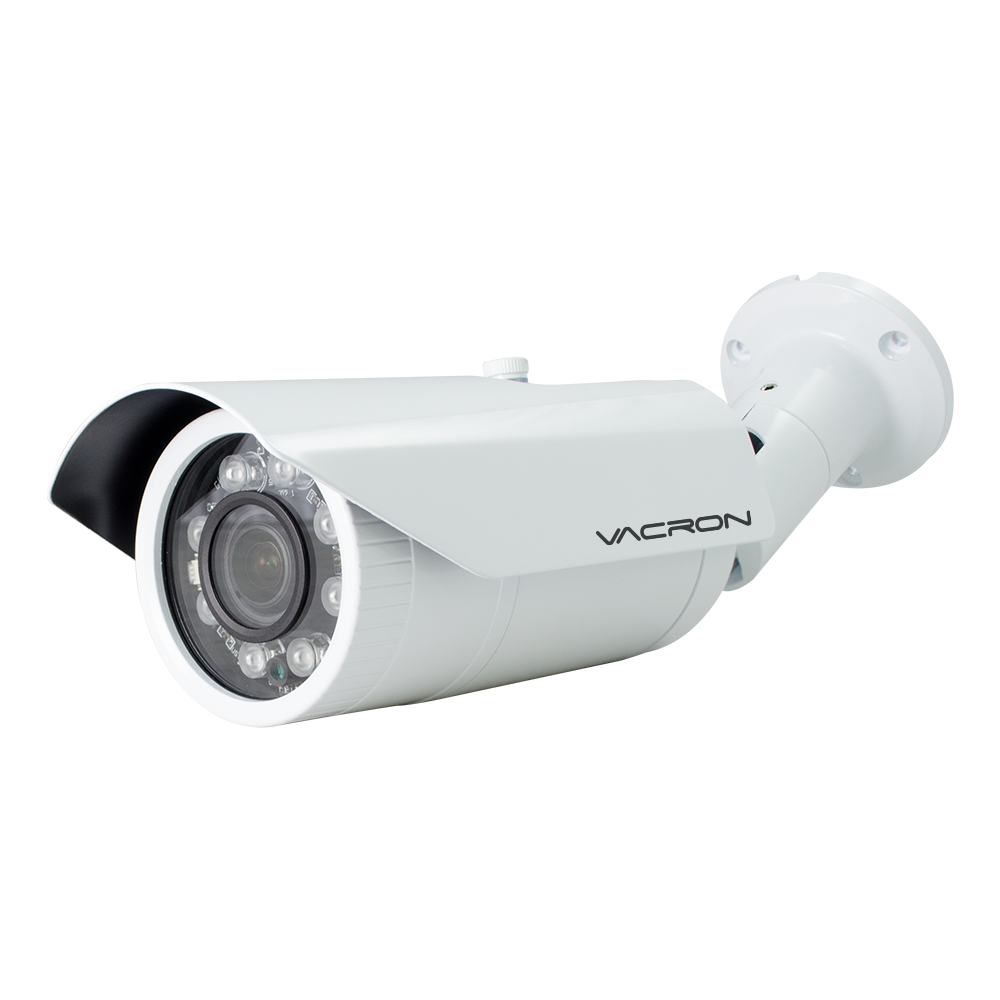

IP Camera
1080P / Bullet / IP66 / IR / H.265+
30m
0 LUX
P.O.E
AF 2.8~12mm
8 LEDs
1/2.8"CMOS
0~45°C
Product Features
| Ssystem | Flash：16MB |
| RAM：256MB | |
| Image Sensor | Full HD High Quality 1/2.8” SONY CMOS Image Sensor |
| Lens | Auto Varifocal 2.8-12mm f1.4 |
| IR-cut | Removable IR Cut filter |
| Low Lux | 0 Lux(IR ON) |
| IR LED | HI-POWER LED 8PCS |
| Compression | H.265+: 1920x1080 at 30fps |
| H.265+: 1280x720 at 30 fps | |
| H.265+: 640x480 at 30fps | |
| H.265+、H.264、JPEG Multi-mode compression (Dual Codec) | |
| Multi-mode compression streaming | |
| Image Settings | Resolution、Quality and bit rate |
| Time、Date or custom text and it’s position | |
| Brightness, Contrast, Saturation and Sharpness | |
| AGC、AWB、AES、BLC、WDR | |
| Network Interface | 10 /100 Mbps RJ-45 |
| Protocol | IPv4,TCP/IP, DHCP, HTTP, RTSP,SNTP,DNS |
| Browser | Microsoft Internet Explorer 6.0 or above |
| Safari, Chrome or Firefox | |
| Alarm & Event notification | Motion Detection |
| E-mail notification or upload file to FTP | |
| User | Max. 8 users for live view simultaneously |
| User Authorization | |
| OTA | OTA for Firmware upgrade |
| I/O Port | RJ-45, DC12V |
| Power | DC12V or PoE IEEE802.3af Class 0 (optional) |
| Power Consumption | 3.6W(IR OFF) 、18W(IR ON) |
| Weight | N.W.：965g |
| Dimension | 315x88x87 mm |
| Operating Environments | 0 ~ 45 °C |
| IP Rating | IP66 |
| Update Date 2022/07/20 | VIN-US731-E6 | VIN-US731V-E6 | VIG-US731V-D6 | VIG-US731AV | VIG-US731T-D2 | VIG-UJ731V-Z5 |
| Resolution | 5MP | 1080P | ||||
| Pick Up Element | 1/2.8" SONY CMOS | 1/2.8" Sony Exmor CMOS | 1/2.9" CMOS | 1/2.8” SONY CMOS | 1/3" CMOS | |
| Lens | CS-Mount 4mm | Varifocal 2.8~12mm | Auto Varifocal 2.8-12mm f1.4 | Varifocal 2.8~12mm | ||
| LEDS | 8 HI-P LEDS | |||||
| IR | ✓ | |||||
| IR Range | 30M | |||||
| AF | ✓ | |||||
| Sensitivity | 0 LUX | |||||
| Waterproof | IP67 | IP66 | ||||
| Update Date 2022/01/26 | VIH-US831VM | VIH-US831VF | VIH-UH831 |
| Resolution | 1080P | 1.3MP | |
| Pick Up Element | 1/2.8" CMOS | 1/2.8" CMOS | 1/4" CMOS |
| Lens | Varifocal 2.8~12mm | ||
| LEDS | 8 HI-P LEDS | ||
| IR | ✓ | ||
| IR Range | 30M | ||
| Sensitivity | 0 LUX | ||
| Waterproof | IP66 | ||
*If the above specifications are different, please refer to the latest date
