IP Surveillance System

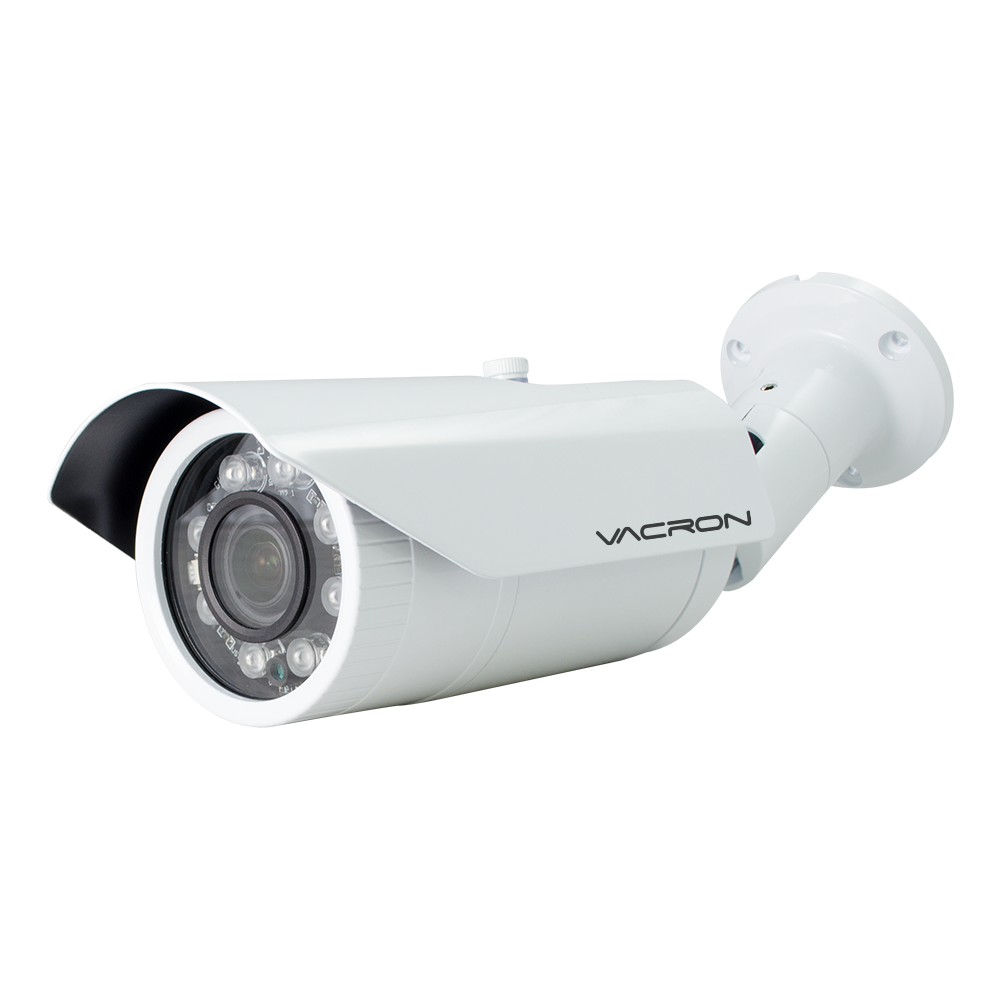

IP Camera

VIN-US731V-E6

5MP / Bullet / IP67 / IR / H.265

  • H.265

  • DC12V

  • 0 LUX

  • P.O.E

  • 8 LEDs

  • LENS2.8~12MM

  • 1/2.8"CMOS

  • 0~45°C

  • IR30M

Download Catalog

Product Features

  • SONY 5 M Pixels 1/2.8" CMOS Sensor with excellent image quality
  • Real time H.265/H.264 /MJPEG Multi-Mode compression (Dual Codec)
  • Resolution 2592*1944 @ 30fps
  • HI-P 8 LED, IR Distance 30M
  • Support ONVIF international standard, best compatibility and integration
System Flash:256MB
RAM:512MB
Image Sensor Full HD High Quality 1/2.8” SONY CMOS Image Sensor
Lens 2.8~12mm
ICR Removable IR Cut filter
Low Lux 0 Lux(IR ON)
Number of LED HI-P 8 LED
Image H.265/H.264: 2592x1944 at 30 fps
H.265/H.264: 2560x1440 at 60 fps
H.265/H.264: 2048x1536 at 60 fps
H.265/H.264: 1920x1080 at 60 fps
H.265、H.264、JPEG Multi-mode compression (Dual Codec)
Multi-mode compression streaming
Image Adjustment Resolution、Quality and bit rate
Time、Date or custom text and it’s position
Brightness, Contrast, Saturation and Sharpness
AGC、AWB、AES、BLC、WDR
Electronic Shutter
1/2 ~ 1/100,000 Sec
Network Interface 10 /100 Mbps RJ-45
Communication Protocol IPv4,TCP/IP, DHCP, HTTP, RTSP,SNTP,DNS
Browser Microsoft Internet Explorer 6.0 or above
Safari, Chrome or Firefox
Alarm and Event Management Motion Detection
E-mail notification or upload file to FTP
Users Max. 8 users for live view simultaneously
User Authorization
Maintenance OTA for Firmware upgrade
I/O RJ-45, DC12V
Power DC12V or PoE IEEE802.3af Class 0 (optional)
Max. Power Consumption 3.6W(IR OFF) 、 12W(IR ON)
Weight N.W.:870g
Dimension(WxDxH) 315 x 88 x 87 mm
Operating Temperature 0 ~ 45 °C
IP Rating IP67




Simliar Product

Update Date 2022/07/20 VIN-US731-E6 VIN-US731V-E6 VIG-US731V-D6 VIG-US731AV VIG-US731T-D2 VIG-UJ731V-Z5
Resolution 5MP 1080P
Pick Up Element 1/2.8" SONY CMOS 1/2.8" Sony Exmor CMOS 1/2.9" CMOS 1/2.8” SONY CMOS 1/3" CMOS
Lens CS-Mount 4mm 2.8~12mm Auto Varifocal 2.8-12mm f1.4 2.8~12mm
LEDS 8 HI-P LEDS
IR
IR Range 30M
AF
Sensitivity 0 LUX
Waterproof IP67 IP66

Update Date 2022/01/26 VIH-US831VM VIH-US831VF VIH-UH831
Resolution 1080P 1.3MP
Pick Up Element 1/2.8" CMOS 1/2.8" CMOS 1/4" CMOS
Lens 2.8~12mm
LEDS 8 HI-P LEDS
IR
IR Range 30M
Sensitivity 0 LUX
Waterproof IP66

*If the above specifications are different, please refer to the latest date
