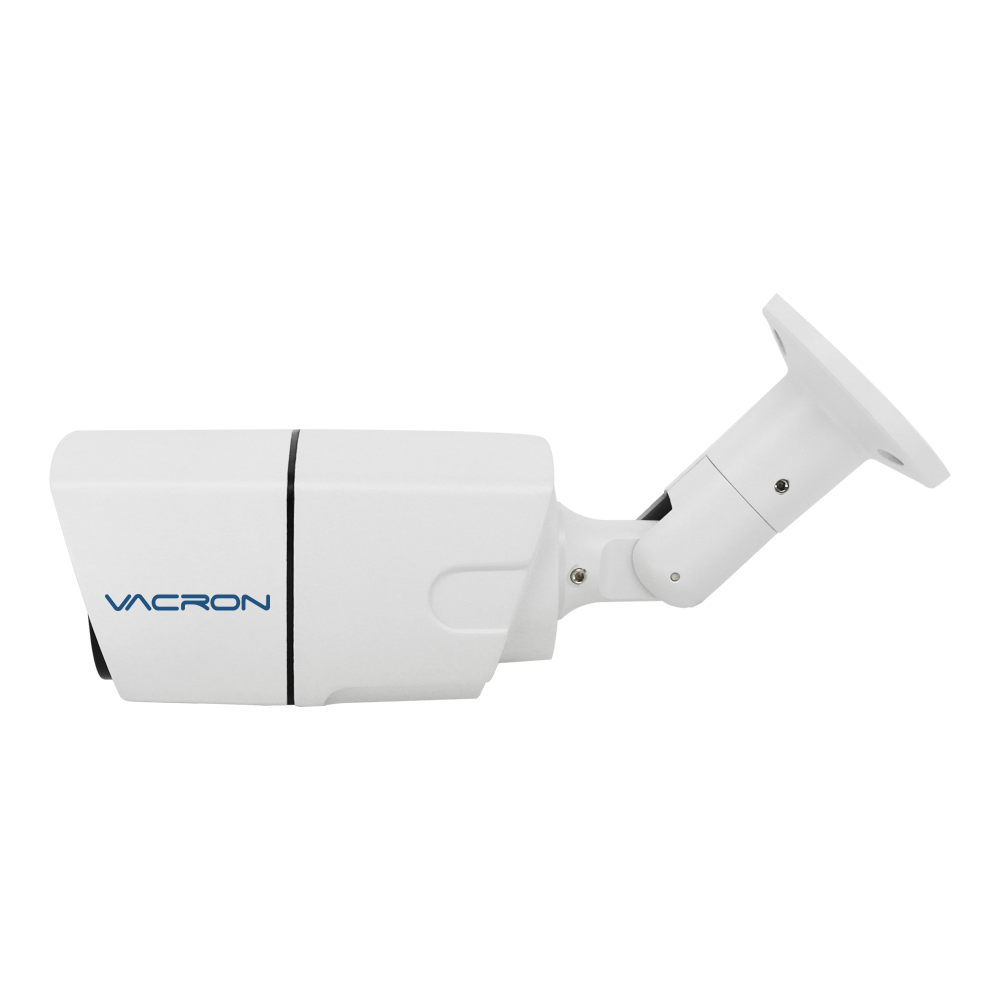

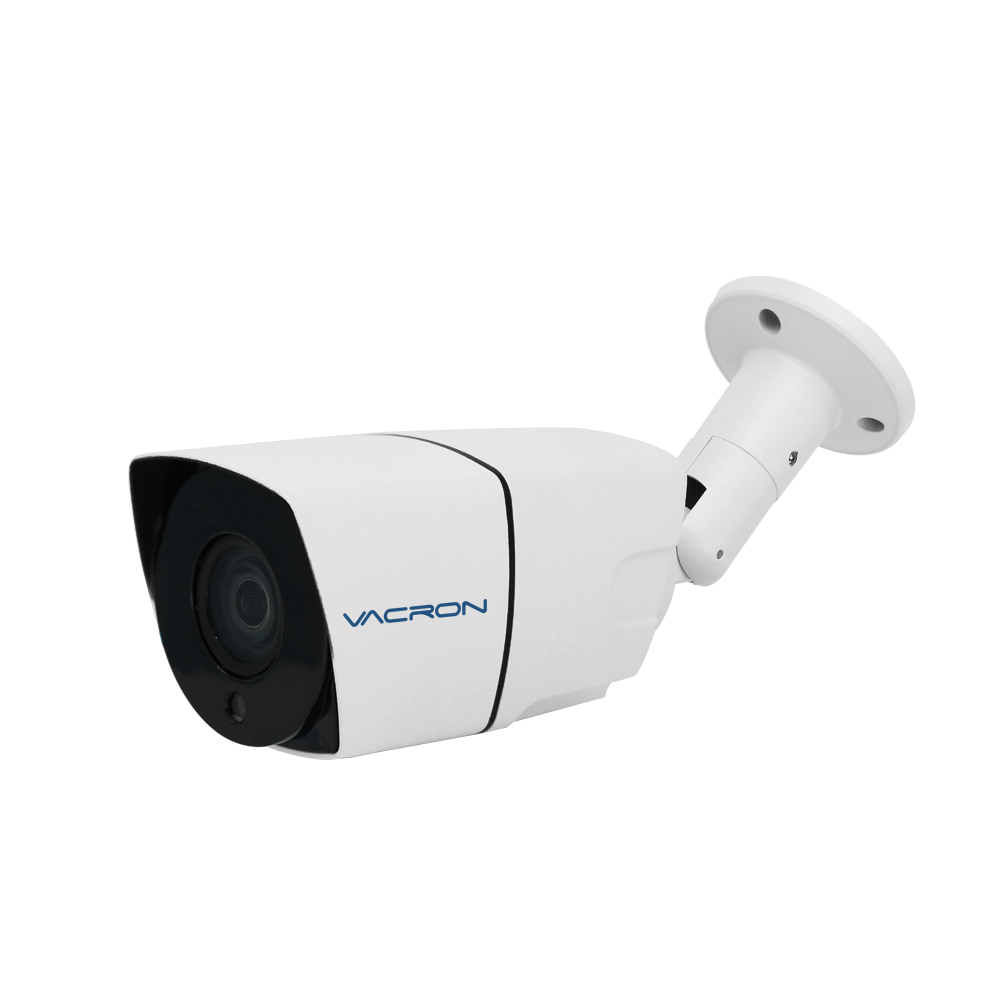

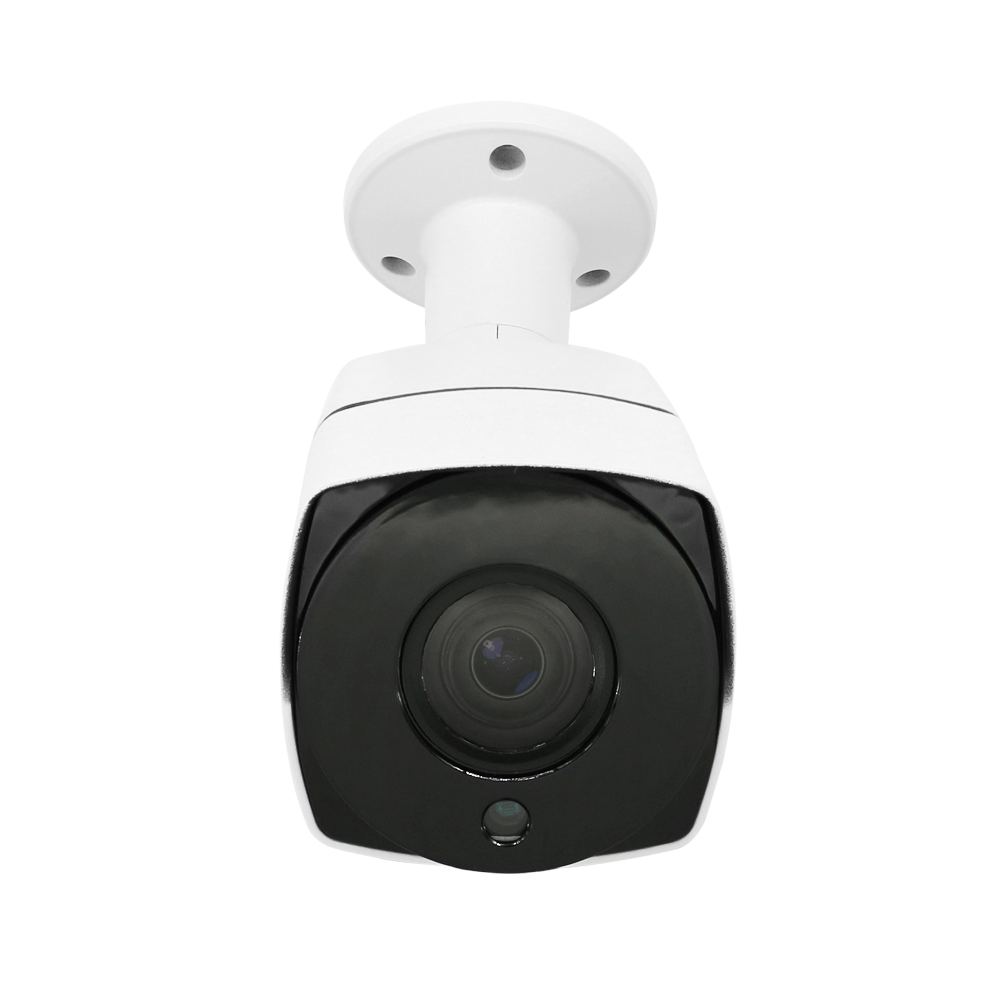

IP Camera
1080P / IP66 / Bullet / H.265+ / IR
DC12V
30m
8 LEDs
LENS2.8~12MM
1/2.8"CMOS
Product Features
| SYSTEM | FLASH: 16MB | |
| RAM: 256MB | ||
| IMAGE SENSOR | FullHD High Quality 1/2.8”Sony Exmor CMOS Image Sensor | |
| LENS | Auto Varifocal 2.8-12mm f1.4 | |
| IR-cut | Removable IR-cut filter for day & night function | |
| VIDEO | H.265+: 1920x1080 at 30fps | |
| H.265+: 1280x720 at 30 fps | ||
| H.265+: 640x480 at 30fps | ||
| Compression: H.264, H.265+, | ||
| MJPEG Streaming: Dual Codec Selectable | ||
| Support Simultaneous multiple streams | ||
| IMAGE SETTINGS | ADJUSTABLE IMAGE SIZE, QUALITY, AND BIT RATE | |
| TIME/DATE STAMP AND TEXT CAPTION OVERLAY. | ||
| Configurable brightness, contrast, saturation, | ||
| sharpness,white balance and exposure | ||
| Have: AGC、AWB、AES、BLC、WDR Features | ||
| NETWORKING | INTERFACE | 10 /100 Mbps Ethernet,RJ-45 |
| SUPPORTED PROTOCOL | IPv4,TCP/IP, DHCP, HTTP, RTSP,SNTP,DNS | |
| SUPPORTED BROWSER | Microsoft Internet Explorer 6.0 or above Safari, Chrome or Firefox | |
| ALARM AND EVENT | MOTION DETECTION | |
| MANAGEMNENT | EVENT NOTIFICATION USING SMTP OR FTP | |
| USERS | 8 CLIENTS ON-LINE MONITORING AT THE SAME TIME | |
| MULTI-LEVEL USER ACCESS CONTROL WITH PASSWORD PROTECTION | ||
| MAINTENANCE | SUPPORTS ONLINE FIRMWARE UPGRADE | |
| I/O | RJ-45 Ethernet x 1,DC Jack x1, RCA audio in x1 | |
| SD card recording | ||
| POWER | DC12V OR POE IEEE802.3AF CLASS 0 (OPTIONAL) | |
| MAX. POWER CONSUMPTION | 3.6W(IR OFF),7W(IR ON) | |
| WEIGHT | NETWEIGHT：650G | |
| DIMENSION | 255mm x 75.3mm x 75mm | |
| OPERATING ENVIRONMENTS |
TEMPERATURE: 0 ~ 45 °C | |
| IP Rating | IP66 | |
| Update Date 2022/01/26 | VIG-US760T-D6 | VIG-US760VT-D6 | VIG-US760VT-D2 |
| Resolution | 5MP | 5MP | 1080P |
| Pick Up Element | 1/2.8 CMOS | ||
| Lens | Auto Varifocal 2.8-12mm | Auto Varifocal 5-50mm | |
| LEDS | 8 HI-P LEDS | ||
| IR | ✓ | ||
| IR Range | 30M | ||
| Sensitivity | 0.01 LUX | ||
| AF | ✓ | ||
| Waterproof | IP66 | ||
| Update Date 2022/01/26 | VIG-US760T | VIG-US760T-D2 | VIG-US760-D4 |
| Resolution | 1080P | ||
| Pick Up Element | 1/2.8" Sony Exmor CMOS | 1/2.8" CMOS | |
| Lens | Auto Varifocal 2.8-12mm | Board Lens 4.0 mm | |
| LEDS | 8 HI-P LEDS | ||
| IR | ✓ | ||
| IR Range | 30M | ||
| Sensitivity | 0.01 LUX | ||
| Starlight Color | ✓ | ||
| AF | ✓ | ||
| Waterproof | IP66 | ||
*If the above specifications are different, please refer to the latest date
