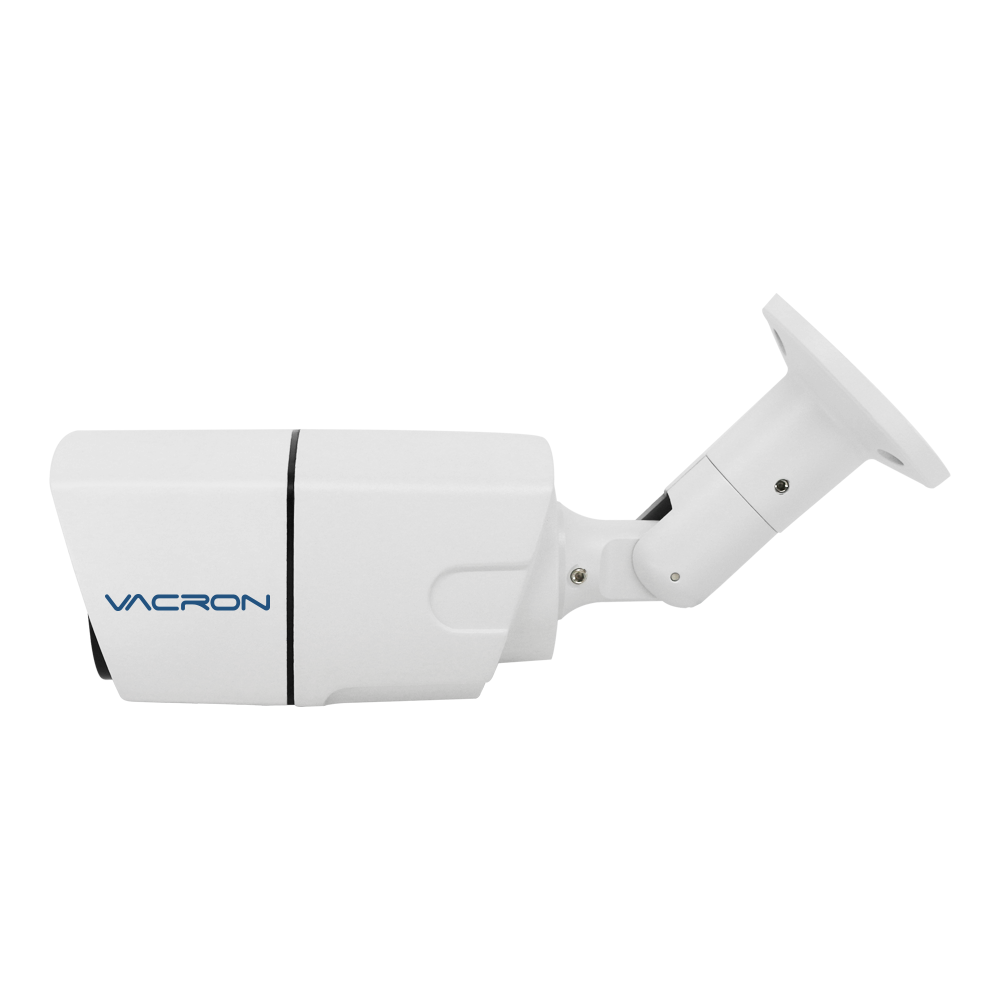

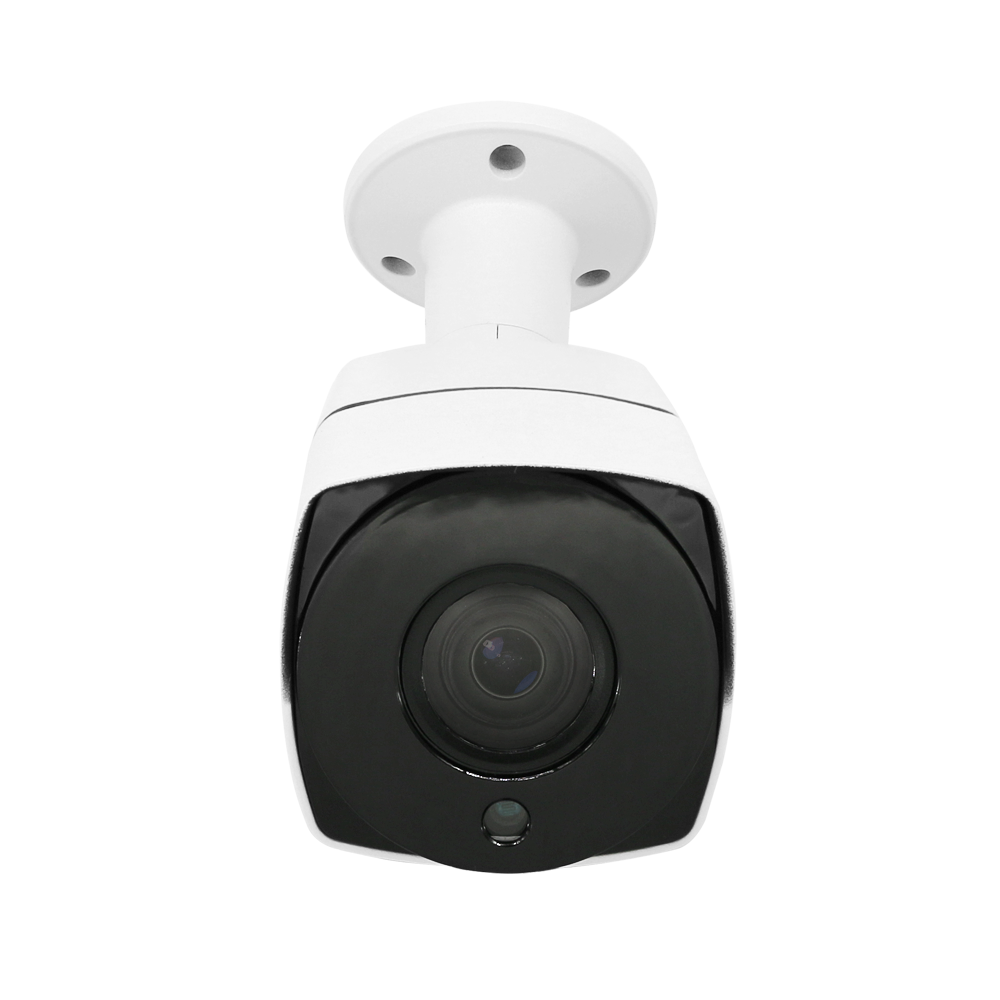

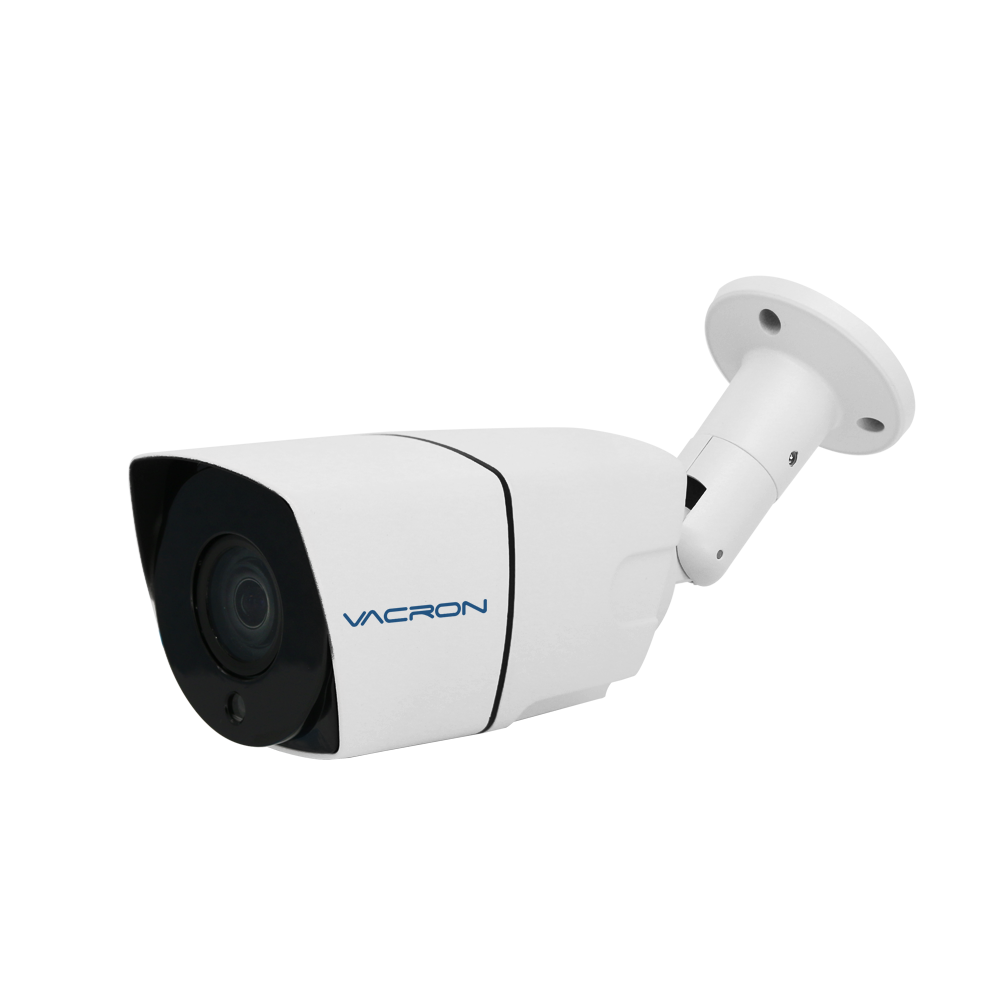

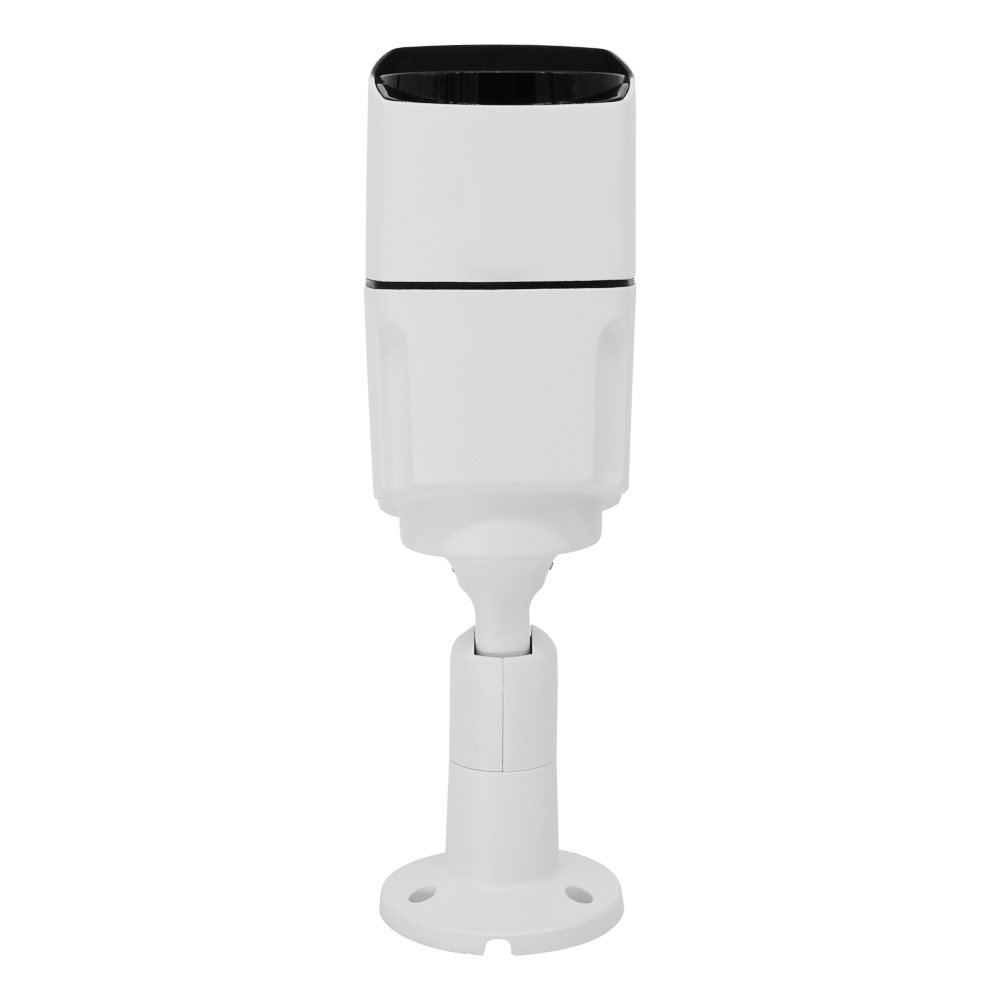

IP Camera
1080P / IP66 / Bullet / H.265+ / IR / AF
30m
0.01 LUX
P.O.E
8 LEDs
LENS2.8~12MM
1/2.8"CMOS
0~45°C
Product Features
| System | Flash：16MB | |
| RAM：256MB | ||
| Sensor | SONY FullHD High Quality 1/2.8” CMOS Image Sensor | |
| Lens | Auto Varifocal 2.8-12mm f1.4 | |
| IR Cut | Removable IR-cut filter for day & night function | |
| Lux | 0.01Lux | |
| Compression | H.265+: 1920x1080 at 30fps | |
| H.265+: 1280x720 at 30 fps | ||
| H.265+: 640x480 at 30fps | ||
| Compression: H.264, H.265+,MJPEG Streaming: Dual Codec Selectable Support Simultaneous multiple streams |
||
| Video Adjustment | Adjustable image size,quality, and bit rate Time/Date stamp and text caption overlay Configurable brightness, contrast, saturation, sharpness, white balance and exposure Have: AGC、AWB、AES、BLC、WDR Features |
|
| Network Interface | 10 /100 Mbps RJ-45 | |
| Protocol | IPv4,TCP/IP, DHCP, HTTP, RTSP,SNTP,DNS | |
| Browser | Microsoft Internet Explorer 6.0 or above Safari, Chrome or Firefox |
|
| Alarm and Event Management- | Motion Detection | |
| Event notification using SMTP or FTP | ||
| Users | 8 clients on-line monitoring at the same time | |
| Multi-level user access control with password protection | ||
| Maintenance | Supports online firmware upgrade | |
| I/O Port | DC12V RJ-45 Ethernet x 1,DC12V | |
| Power | DC12V or PoE IEEE802.3af Class 0 (optional) | |
| Power Consumption | 3.6W(IR OFF)、7W(IR ON) | |
| Weight | Net weight:650g | |
| Dimension | 255mm x 75.3mm x 75mm | |
| Operating Environments | 0 ~ 45 °C | |
| IP Rating | IP66 | |
| Update Date 2022/01/26 | VIG-US760T-D6 | VIG-US760VT-D6 | VIG-US760VT-D2 |
| Resolution | 5MP | 5MP | 1080P |
| Pick Up Element | 1/2.8 CMOS | ||
| Lens | Auto Varifocal 2.8-12mm | Auto Varifocal 5-50mm | |
| LEDS | 8 HI-P LEDS | ||
| IR | ✓ | ||
| IR Range | 30M | ||
| Sensitivity | 0.01 LUX | ||
| AF | ✓ | ||
| Waterproof | IP66 | ||
| Update Date 2022/01/26 | VIG-US760T | VIG-US760T-D2 | VIG-US760-D4 |
| Resolution | 1080P | ||
| Pick Up Element | 1/2.8" Sony Exmor CMOS | 1/2.8" CMOS | |
| Lens | Auto Varifocal 2.8-12mm | Board Lens 4.0 mm | |
| LEDS | 8 HI-P LEDS | ||
| IR | ✓ | ||
| IR Range | 30M | ||
| Sensitivity | 0.01 LUX | ||
| Starlight Color | ✓ | ||
| AF | ✓ | ||
| Waterproof | IP66 | ||
*If the above specifications are different, please refer to the latest date
