IP Surveillance System

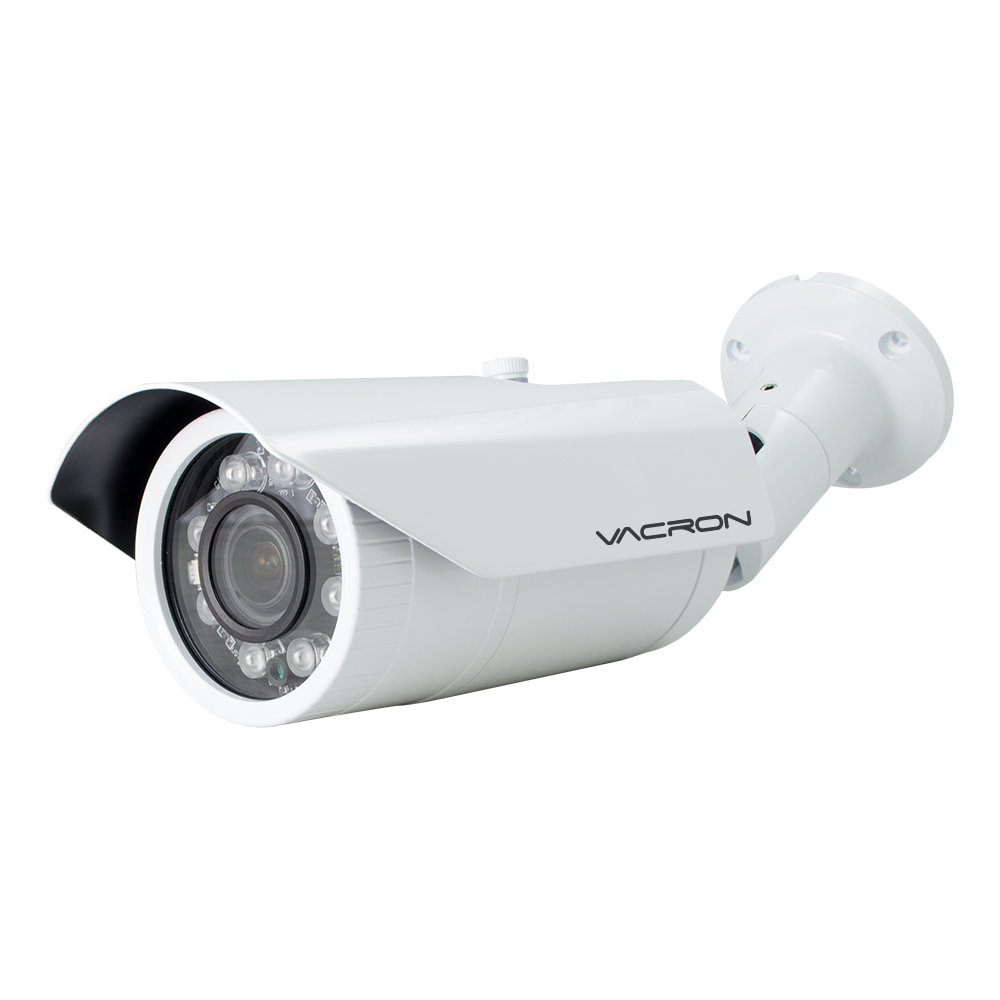

IP Camera

VIN-US731HTA-EA

1080P / Bullet / IP67 / IR / H.265+

  • H.265

  • DC12V

  • 0 LUX

  • P.O.E

  • 8 LEDs

  • 1/2.8"CMOS

  • 0~45°C

  • Human

  • 電動對焦2.8-12MM

Download Catalog

Product Features

  • The camera is equipped with built-in AI algorithms that can accurately recognize human-shaped objects.
  • With 2.8mm~12mm motorized motor lens, it is convenient for users to adjust the sharpness of the recognition area.
  • Starlight-grade Sony CMOS low-light color image with high resolution for enhanced night-time surveillance.
  • Real-time H.265/H.264 multi-mode engine compression technology (Dual Codec) supports multiple levels of video quality configuration.
  • This device supports 256GB SD card to store captured pictures and video data, and supports remote inquiry of event data.
  • The identification results are linked with the Vacron recording system to grasp the monitoring and alarm information in real time.
  • Support ONVIF international standard with best compatibility and integration, SDK can be attached for system integration company's integrations.

Humanoid recognition function

Number of Humanoid Recognition It can recognize 5 sets of human on the monitor screen at the same time.
Recognizable Size of Human The size of the human figure on a video screen needs to be 60*100 pixels or more.
Accuracy Settings Adjustments The initial default value is 0. According to the constraints of the installation environment,
the recognition strict level setting can be adjusted to avoid misjudgment or relaxation of recognition.
Reduce the rate of false positives for human recognition.
Alert Zone Settings Provide two groups of warning area settings and irregular frames can be set as the warning area set.
Humanoid recognition in the warning zone can be set.
When the humanoid object touches the warning frame, the humanoid object will be listed
and tracked until the humanoid object leaves the warning zone.
It can be used with the alarm setting as a linkage setting.
Alert Response Time Configurable I/O alarm output time allows the manager to have a response time.
Can set up IO alarm output voltage level high/low (0V~3.3V) for a remote siren or gearing alert.
Humanoid recognition
image storage		 You can set up video storage in the SD card of the device itself,
or set up an FTP Server to transmit the humanoid recognition results to the server.
Micro SD Card Storage in Device It supports a 256 GB Micro SD card for humanoid recognition image storage in the device.
It can carry out humanoid recognition image confirmation on the browser page.
(After the humanoid recognition system captures SD card photo function is turned on,
the built-in SD card will be formatted and forcibly turn off normal surveillance video)
Co-development Please contact FUHO sales representative to discuss the
development and integration of multiple AI system functions.


SPECIFICATIONS

System Flash：256MB
RAM：512MB
Image Sensor Full HD High Quality 1/2.8” SONY CMOS Image Sensor
Lens Motorized / Automatic Zoom 2.8~12mm
ICR Built-in Magnetic Infrared Filter Switch
Low Lux 0 Lux(IR ON)
Number of LED 8 High Power IR LEDs
Compression H.265+: 1920x1080 at 60fps
H.265+: 1280x720 at 60 fps
H.265+: 640x480 at 60fps
H.265+、H.264、JPEG Multi-mode compression (Dual Codec)
Support simultaneous transmission of multimodal video streams
Image Adjustment Adjustable image size, quality, and bit rate
Time, date or custom text can be displayed on the image, and the display position can be set
Adjustable brightness, contrast, saturation, and sharpness
Support AGC, AWB, AES, BLC, WDR Features
Electronic Shutter 1/2 ~ 1/100,000 Sec
Network Interface 10/100 Mbps Ethernet, RJ-45
Communication Protocol IPv4, TCP/IP, DHCP, HTTP, RTSP, SNTP, DNS
Browser Microsoft Internet Explorer 6.0 or above
Safari, Chrome or Firefox
Alarm & Event notification Motion Detection
E-mail notification or upload file to FTP
User Up to 8 users can monitor online at the same time.
Hierarchical Management of User Rights.
Maintenance Supports FOTA
I/O Port RJ-45 network port, power input port DC12V
Audio input and output (BNC-RS485 output), alarm output
Power DC12V or Ethernet PoE IEEE802.3af Class 0 (optional)
Max. Power Consumption 3.6W(IR OFF) 、12W(IR ON)
Weight N.W.：870g
Dimension 315x88x87 mm
Operating Environments 0 ~ 45 °C
IP Rating IP67




Simliar Product

Update Date 2022/07/20 VIN-US731-E6 VIN-US731V-E6 VIG-US731V-D6 VIG-US731AV VIG-US731T-D2 VIG-UJ731V-Z5
Resolution 5MP 1080P
Pick Up Element 1/2.8" SONY CMOS 1/2.8" Sony Exmor CMOS 1/2.9" CMOS 1/2.8” SONY CMOS 1/3" CMOS
Lens CS-Mount 4mm Varifocal 2.8~12mm Auto Varifocal 2.8-12mm f1.4 Varifocal 2.8~12mm
LEDS 8 HI-P LEDS
IR ✓
IR Range 30M
AF ✓
Sensitivity 0 LUX
Waterproof IP67 IP66

Update Date 2022/01/26 VIH-US831VM VIH-US831VF VIH-UH831
Resolution 1080P 1.3MP
Pick Up Element 1/2.8" CMOS 1/2.8" CMOS 1/4" CMOS
Lens Varifocal 2.8~12mm
LEDS 8 HI-P LEDS
IR ✓
IR Range 30M
Sensitivity 0 LUX
Waterproof IP66

*If the above specifications are different, please refer to the latest date
